COROLLA JPP
AE102L-AWPNKK (1992)
4103 - DISC WHEEL & WHEEL CAP

AE102L-AWPNKK (1992)

Toyota Corolla Jpp

Production Jun 1992 - Apr 1997

Engine 7AFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

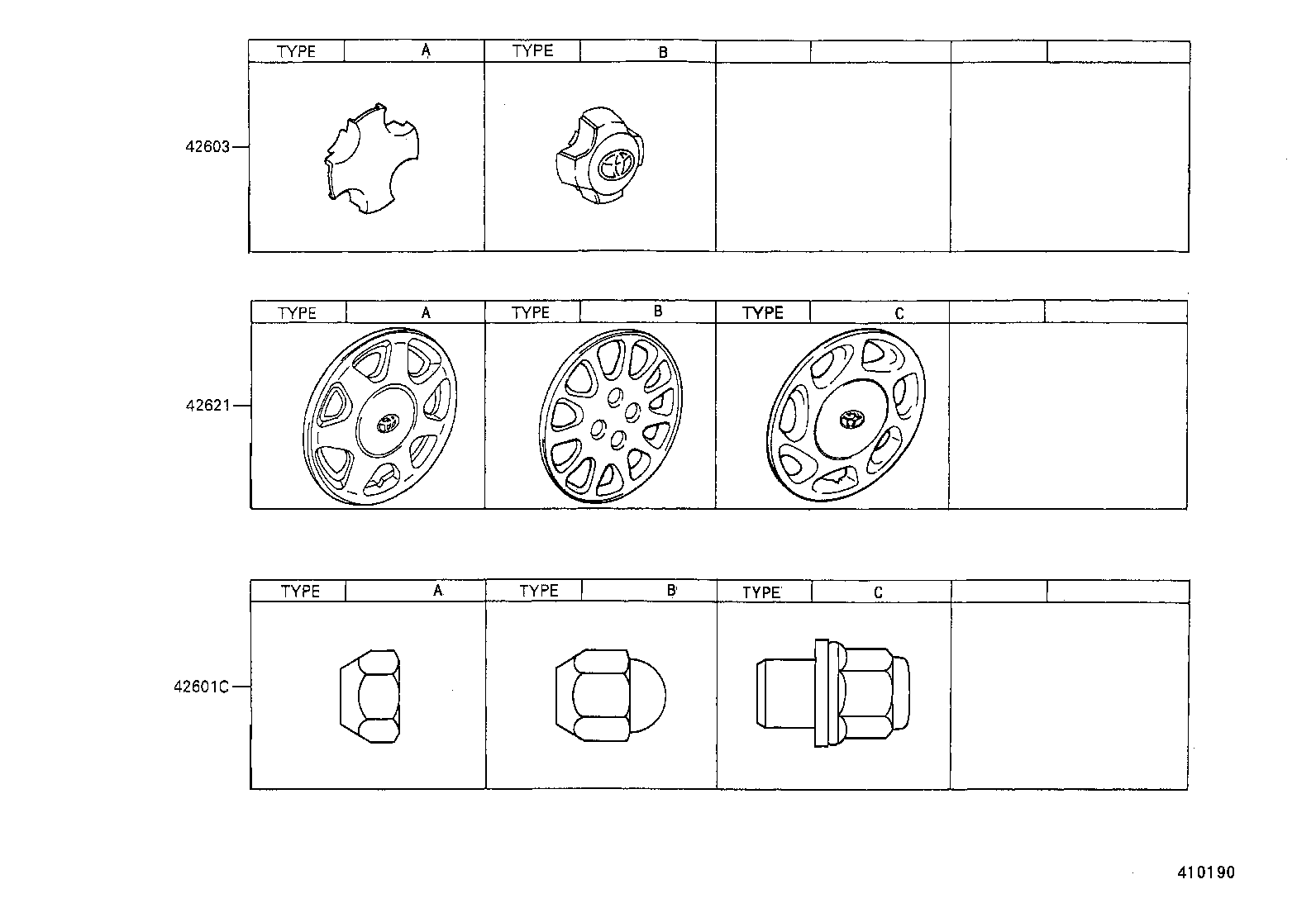

ILLUST NO. 2 OF 3(9206- )JPP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42601C - NUT, HUB (FOR AXLE)
90942-01033	AE102..JPP..E;AE102..JPP..SED..CND TYPE C:REFER TO ILLUSTRATION;W(ALUMINUM WHEEL)	06/1992 - 08/1995	16
90942-01007	AE10#..JPP TYPE A:REFER TO ILLUSTRATION	06/1992 - 12/2999	16
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12530	AE102..JPP..E;AE102..JPP..SED..CND TYPE A:REFER TO ILLUSTRATION	06/1992 - 08/1995	4
42621 - CAP, WHEEL
42602-12230	AE102..JPP..E;AE102..JPP..SED..CND TYPE E:REFER TO ILLUSTRATION	06/1992 - 08/1995	4
42602-02030	AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA TYPE B:REFER TO ILLUSTRATION,(L)	06/1992 - 08/1995	4
42602-02040	AE102..JPP..E;AE102..JPP..SED..CND TYPE A:REFER TO ILLUSTRATION	06/1992 - 08/1995	4
42602-12240	AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA TYPE B:REFER TO ILLUSTRATION	06/1992 - 08/1995	4
42602-02050	AE10#..JPP..N TYPE D:REFER TO ILLUSTRATION	08/1995 - 12/2999	4
42602-12350	AE10#..JPP..N TYPE C:REFER TO ILLUSTRATION	08/1995 - 12/2999	4

ILLUST NO. 1 OF 3(9206- )JPP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42601 - WHEEL, DISC
42611-1A300	AE102..JPP..E;AE102..JPP..SED..CND 14X5.5JJ,TYPE C:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)	06/1992 - 08/1995	4
42611-1A14001	AE10#..JPP 14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK	06/1992 - 04/1997	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A020	AE10#..JPP 15X4T,TYPE D:REFER TO ILLUSTRATION	06/1992 - 08/1995	1
42611-1A14001	AE102..JPP..CND 14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK	06/1992 - 04/1997	1
42611-1A020	AE102..JPP 15X4T,TYPE D:REFER TO ILLUSTRATION	08/1995 - 04/1997	1
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AE10#..JPP	06/1992 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AE10#..JPP	06/1992 - 12/2999	1
42652 - TIRE
42652-1A190	AE102..JPP 185/68R14 85S	08/1995 - 12/2999	4
42652-1A190	AE102..JPP..CND 185/68R14 85S	06/1992 - 08/1995	4
42652A - TIRE (FOR SPARE)
42652-14270	AE102..JPP;AE101..JPP..USA T135/70D15	06/1992 - 08/1995	1
42652-14270	AE102..JPP T135/70D15	08/1995 - 07/1996	1
42652-1A190	AE102..JPP..CND 185/68R14 85S	06/1992 - 12/2999	1
42652-40040	AE102..JPP T135/70D15	07/1996 - 12/2999	1

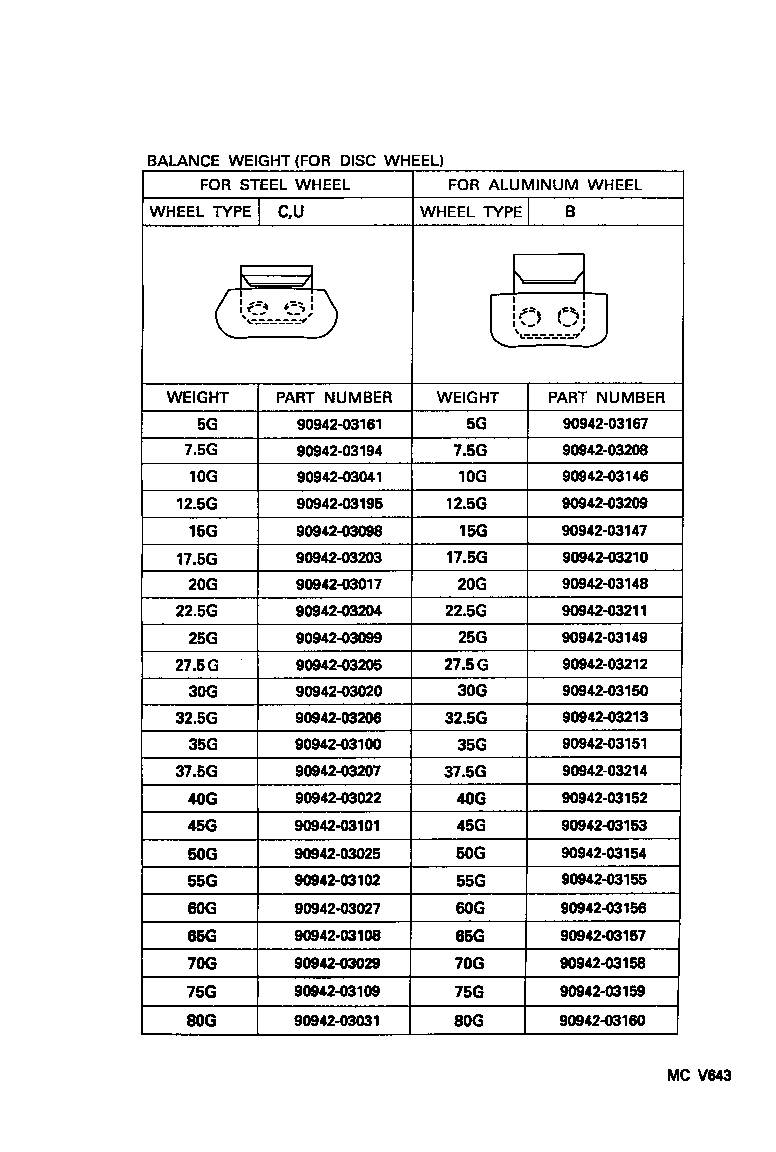

ILLUST NO. 3 OF 3(9206- )JPP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03109
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
