AE102L-AWPNKK (1992)
Toyota Corolla Jpp

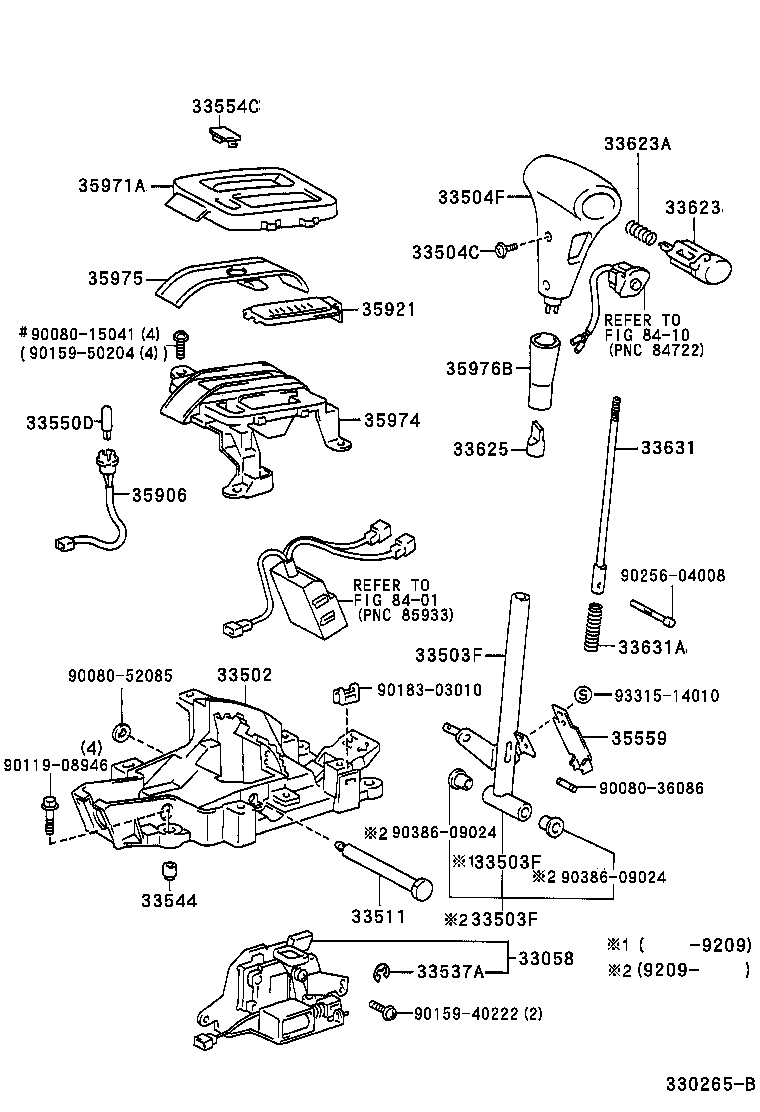

ILLUST NO. 1 OF 2(9206- )JPP..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-12050 |
AE102..JPP..4FC |
1 | ||
| 33058-12050 |
AE102..JPP..4FC (J) |
1 | ||
| 33058-12050 |
AE102..JPP..4FC (J) |
1 | ||
| 33058-02010 |
AE102..JPP..4FC (L) |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-12240 |
AE102..JPP..4FC |
1 | ||
| 33521-12240 |
AE102..JPP..4FC (J) |
1 | ||
| 33521-12240 |
AE102..JPP..4FC (J) |
1 | ||
| 33521-02010 |
AE102..JPP..4FC (L) |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-12040 |
AE102..JPP..4FC |
1 | ||
| 33503-12450 |
AE102..JPP..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-12040 |
AE102..JPP..4FC |
1 | ||
| 33503-12450 |
AE102..JPP..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-12040 |
AE102..JPP..4FC |
1 | ||
| 33503-12450 |
AE102..JPP..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40244 |
AE102..JPP..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12200K0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND TAUPE,TRIM9#,(J) |
1 | ||
| 33542-12200B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33542-02030B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 33542-12200K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 33542-12200J0 |
AE102..JPP..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-12200B0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 33542-02030J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(L) |
1 | ||
| 33542-12200J0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND DARK BLUE,TRIM8#,(J) |
1 | ||
| 33542-12201K0 |
AE102..JPP..WG..4FC TAUPE,TRIM9# |
1 | ||
| 33542-12200J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 33542-12200B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 33542-02030K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(L) |
1 | ||
| 33542-12201K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 33542-12201B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 33542-12201J0 |
AE102..JPP..WG..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-12201J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 33542-02031J0 |
AE102..JPP..4FC..N DARK BLUE,TRIM8#,(L) |
1 | ||
| 33542-12200K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 33542-02031E1 |
AE102..JPP..4FC OAK,TRIM4#,(L) |
1 | ||
| 33542-02031K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(L) |
1 | ||
| 33542-12201E0 |
AE102..JPP..4FC OAK,TRIM4#,(J) |
1 | ||
| 33542-02031B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12100 |
AE102..JPP..4FC |
1 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-04005 |
AE102..JPP..4FC |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-33010 |
AE102..JPP..4FC |
4 | ||
| 33544-06010 |
AE102..JPP..4FC |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90080-81039 |
AE102..JPP..4FC 14V 3.4W |
1 | ||
| 99132-12034 |
AE102..JPP..4FC 12V 3.4W |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-12080B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33554-12080K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 33554-12080B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 33554-02010J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(L) |
1 | ||
| 33554-02010K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(L) |
1 | ||
| 33554-12080K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 33554-02010E1 |
AE102..JPP..4FC OAK,TRIM4#,(L) |
1 | ||
| 33554-12080E0 |
AE102..JPP..4FC OAK,TRIM4#,(J) |
1 | ||
| 33554-12080J0 |
AE102..JPP..4FC DARK BLUE,TRIM8# |
1 | ||
| 33554-02010B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 33554-12080J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12120K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 33623-02020K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(L) |
1 | ||
| 33623-12120K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 33623-12120B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623-12120J0 |
AE102..JPP..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623-02020B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 33623-12120E0 |
AE102..JPP..4FC OAK,TRIM4#,(J) |
1 | ||
| 33623-02020J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(L) |
1 | ||
| 33623-02020E1 |
AE102..JPP..4FC OAK,TRIM4#,(L) |
1 | ||
| 33623-12120B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 33623-12120K0 |
AE102..JPP..E;AE102..JPP..WG..4FC TAUPE,TRIM9# |
1 | ||
| 33623-12120J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90080-50127 |
AE102..JPP..4FC (L) |
1 | ||
| 90501-07037 |
AE102..JPP..4FC |
1 | ||
| 90501-07037 |
AE102..JPP..4FC (J) |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-12020 |
AE102..JPP..4FC (J) |
1 | ||
| 33625-12020 |
AE102..JPP..4FC (J) |
1 | ||
| 33625-12020 |
AE102..JPP..4FC |
1 | ||
| 33625-02030 |
AE102..JPP..4FC (L) |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-12120 |
AE102..JPP..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90080-50126 |
AE102..JPP..4FC L=36 |
1 | ||
| 90501-07074 |
AE102..JPP..4FC |
1 | ||
| 90501-07074 |
AE102..JPP..4FC L=78 |
1 | ||
| 90501-07074 |
AE102..JPP..4FC L=78 |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-33010 |
AE102..JPP..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12130 |
AE102..JPP..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12380 |
AE102..JPP..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-02010K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(L) |
1 | ||
| 35971-12330B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35971-02010J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(L) |
1 | ||
| 35971-12330J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 35971-12330K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 35971-02010E1 |
AE102..JPP..4FC OAK,TRIM4#,(L) |
1 | ||
| 35971-02010B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 35971-12330J0 |
AE102..JPP..4FC DARK BLUE,TRIM8# |
1 | ||
| 35971-12330B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 35971-12330K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 35971-12330E0 |
AE102..JPP..4FC OAK,TRIM4#,(J) |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12160 |
AE102..JPP..4FC |
1 | ||
| 35974-02011 |
AE102..JPP..4FC (L) |
1 | ||
| 35974-12161 |
AE102..JPP..4FC (J) |
1 | ||
| 35974-12161 |
AE102..JPP..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12200J0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND DARK BLUE,TRIM8#,(J) |
1 | ||
| 35975-12200J0 |
AE102..JPP..4FC DARK BLUE,TRIM8# |
1 | ||
| 35975-12200K0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND TAUPE,TRIM9#,(J) |
1 | ||
| 35975-12200B0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 35975-12200K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 35975-12200B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35975-12200K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 35975-02020K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 35975-12200J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 35975-02020J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(L) |
1 | ||
| 35975-12200B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 35975-02020B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 35975-02020E1 |
AE102..JPP..4FC OAK,TRIM4#,(L) |
1 | ||
| 35975-12200E0 |
AE102..JPP..4FC OAK,TRIM4#,(J) |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-12080J0 |
AE102..JPP..4FC DARK BLUE,TRIM8# |
1 | ||
| 35976-12080J0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND DARK BLUE,TRIM8#,(J) |
1 | ||
| 35976-12080B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1# |
1 | ||
| 35976-12080K0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND TAUPE,TRIM9#,(J) |
1 | ||
| 35976-12080B0 |
AE102..JPP..E;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..CND SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 35976-12080K0 |
AE102..JPP..4FC TAUPE,TRIM9# |
1 | ||
| 35976-02010K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(L) |
1 | ||
| 35976-12080J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(J) |
1 | ||
| 35976-02010B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 35976-12080B0 |
AE102..JPP..4FC SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 35976-02010E1 |
AE102..JPP..4FC OAK,TRIM4#,(L) |
1 | ||
| 35976-12080K0 |
AE102..JPP..4FC TAUPE,TRIM9#,(J) |
1 | ||
| 35976-02010J0 |
AE102..JPP..4FC DARK BLUE,TRIM8#,(L) |
1 | ||
| 35976-12080E0 |
AE102..JPP..4FC OAK,TRIM4#,(J) |
1 | ||
| Common parts | ||||
| 90080-15041 | ||||
| 90080-36086 | ||||
| 90080-52085 | ||||
| 90119-08946 | ||||
| 90159-40222 | ||||
| 90159-50204 | ||||
| 90183-03010 | ||||
| 90256-04008 | ||||
| 90386-09024 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

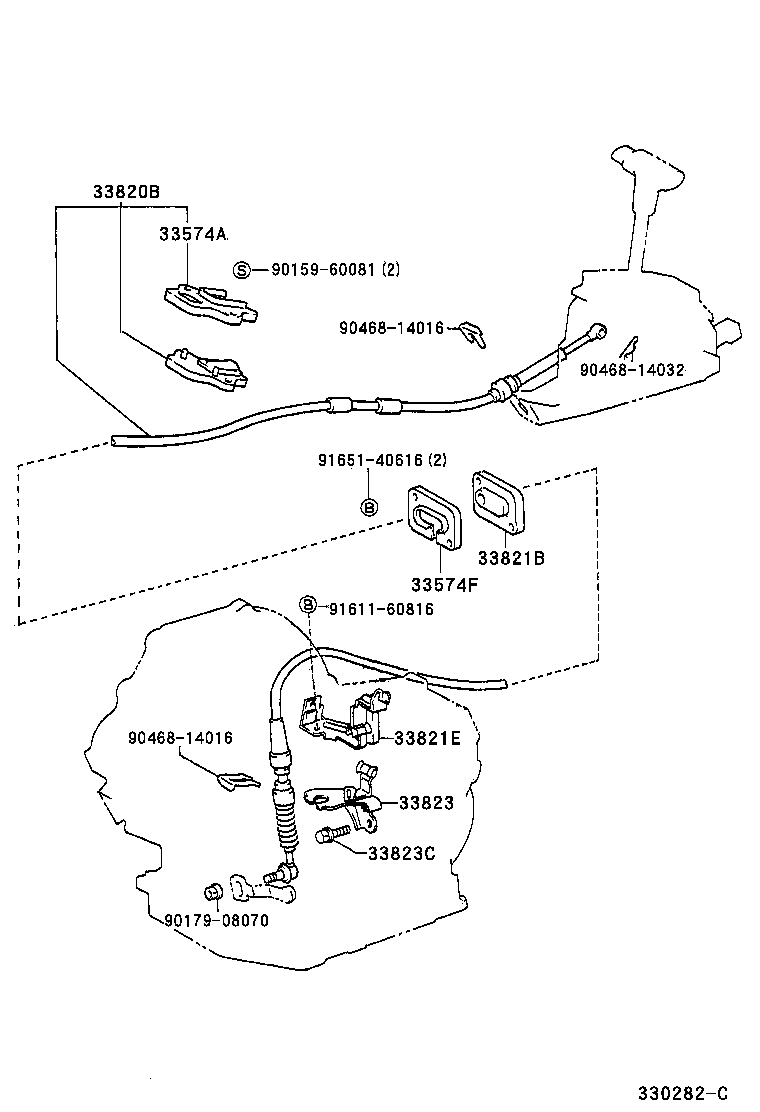

ILLUST NO. 2 OF 2(9206- )JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE10#..JPP..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12030 |
AE10#..JPP..ATM |
1 | ||
| 33574-12080 |
AE10#..JPP..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12580 |
AE102..JPP..4FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01391 |
AE10#..JPP..ATM |
1 | ||
| 90480-01678 |
AE10#..JPP..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01875 |
AE10#..JPP..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12130 |
AE102..JPP..4FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-61022 |
AE102..JPP..4FC |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90179-08070 | ||||
| 90468-14016 | ||||
| 90468-14032 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||
