AE102L-AWPNKA (1992)
Toyota Corolla Jpp
Production
Jun 1992
-
Aug 1996
Engine
7AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9206- )JPP..WG

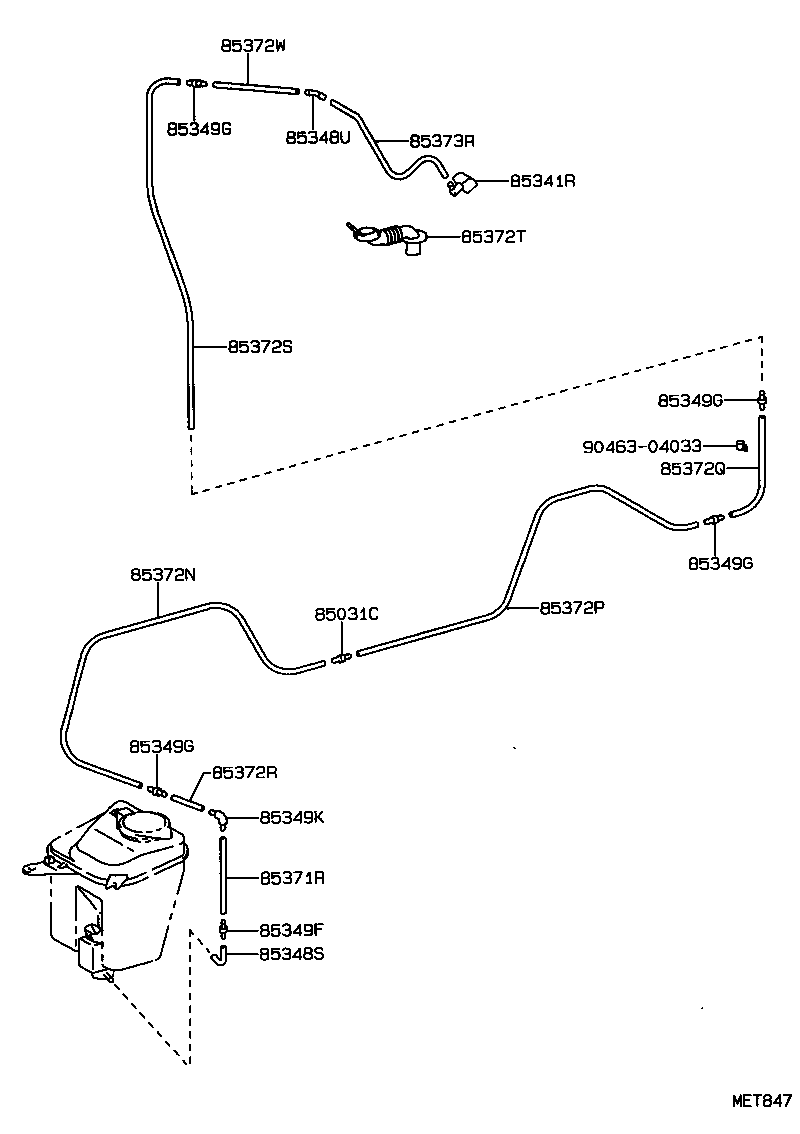

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-30010 |
AE102..JPP..WG |
1 | ||
| 85341R - NOZZLE ASSY, WASHER | ||||
| 85395-13010 |
AE102..JPP..WG |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85336-12230 |
AE102..JPP..WG |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85355-20080 |
AE102..JPP..WG |
1 | ||
| 85349-89122 |
AE102..JPP..WG |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-10260 |
AE102..JPP..WG |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AE102..JPP..WG |
4 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AE102..JPP..WG |
4 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AE102..JPP..WG |
4 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AE102..JPP..WG |
4 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85317-12230 |
AE102..JPP..WG |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
AE102..JPP..WG..USA *H,L=130 |
1 | ||
| 90446-07001 |
AE102..JPP..WG..USA *H,L=150,COLD SPEC |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-07001 |
AE102..JPP..WG *H,L=1440 |
1 | ||
| 90446-07001 |
AE102..JPP..WG *H,L=1390 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-59030 |
AE102..JPP..WG *H,L=3200 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33299 |
AE102..JPP..WG *H,L=50 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
AE102..JPP..WG *H,L=70 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-59038 |
AE102..JPP..WG L=880 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85373-13010 |
AE102..JPP..WG |
1 | ||
| 82819-13080 |
AE102..JPP..WG |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
AE102..JPP..WG *H,L=140 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33727 |
AE102..JPP..WG *H,L=410 |
1 | ||
| Common parts | ||||
| 90463-04033 | ||||
