AE102L-AWPNKA (1992)
Toyota Corolla Jpp

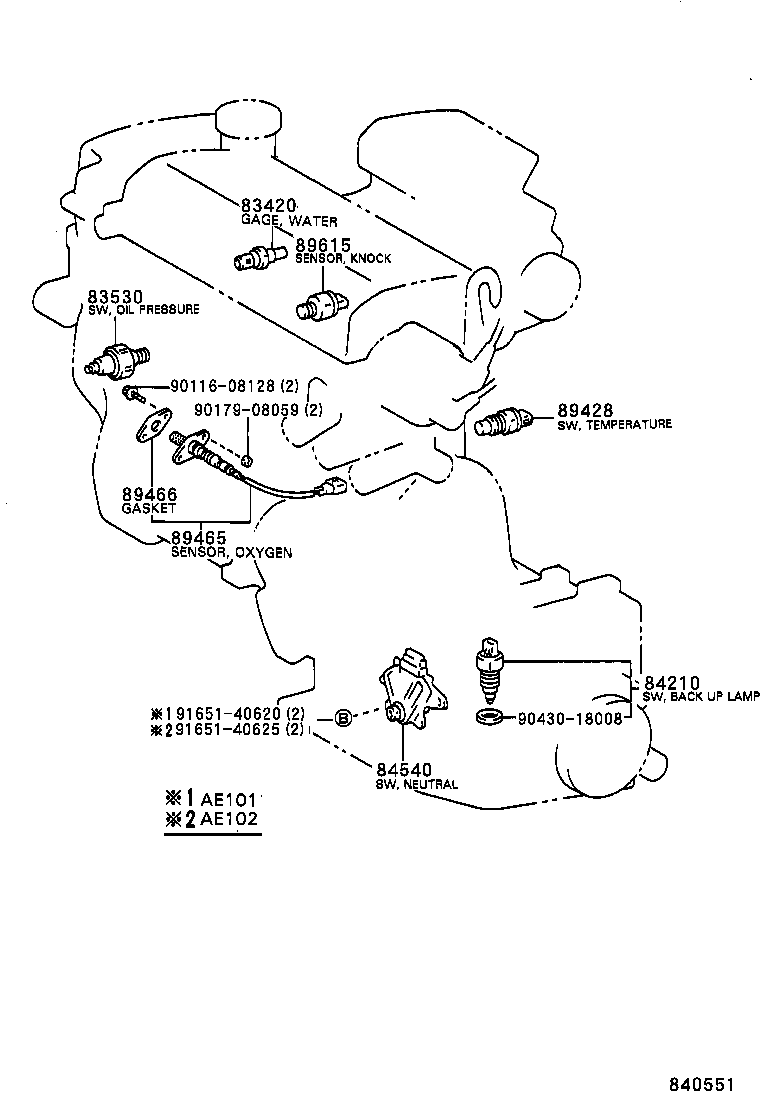

ILLUST NO. 1 OF 8(9206- )JPP
ENGINE & TRANSAXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16050 |
AE10#..JPP |
1 | ||
| 83420-16050 |
AE10#..JPP NIPPONDENSO |
1 | ||
| 83420-20040 |
AE10#..JPP |
1 | ||
| 83420-20040 |
AE10#..JPP YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AE10#..JPP |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12210 |
AE102..JPP..4FC MATSUSHITA |
1 | ||
| 84540-12200 |
AE102..JPP..4FC TOKAIRIKA |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10#..JPP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19535 |
AE10#..JPP |
1 | ||
| 89465-19555 |
AE10#..JPP..USA CALIFORNIA SPEC,RR |
1 | ||
| 89465-19545 |
AE10#..JPP..USA CALIFORNIA SPEC,FR |
1 | ||
| 89465-12380 |
AE102..JPP FR |
1 | ||
| 89465-12380 |
AE10#..JPP FR |
1 | ||
| 89465-12390 |
AE102..JPP RR |
1 | ||
| 89465-12390 |
AE10#..JPP RR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AE10#..JPP..USA CALIFORNIA SPEC,FR |
1 | ||
| 89466-20020 |
AE10#..JPP |
1 | ||
| 89466-12020 |
AE10#..JPP..USA CALIFORNIA SPEC,RR |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12030 |
AE102..JPP TOYOTA |
1 | ||
| 89615-22030 |
AE102..JPP MATSUSHITA |
1 | ||
| Common parts | ||||
| 90116-08128 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

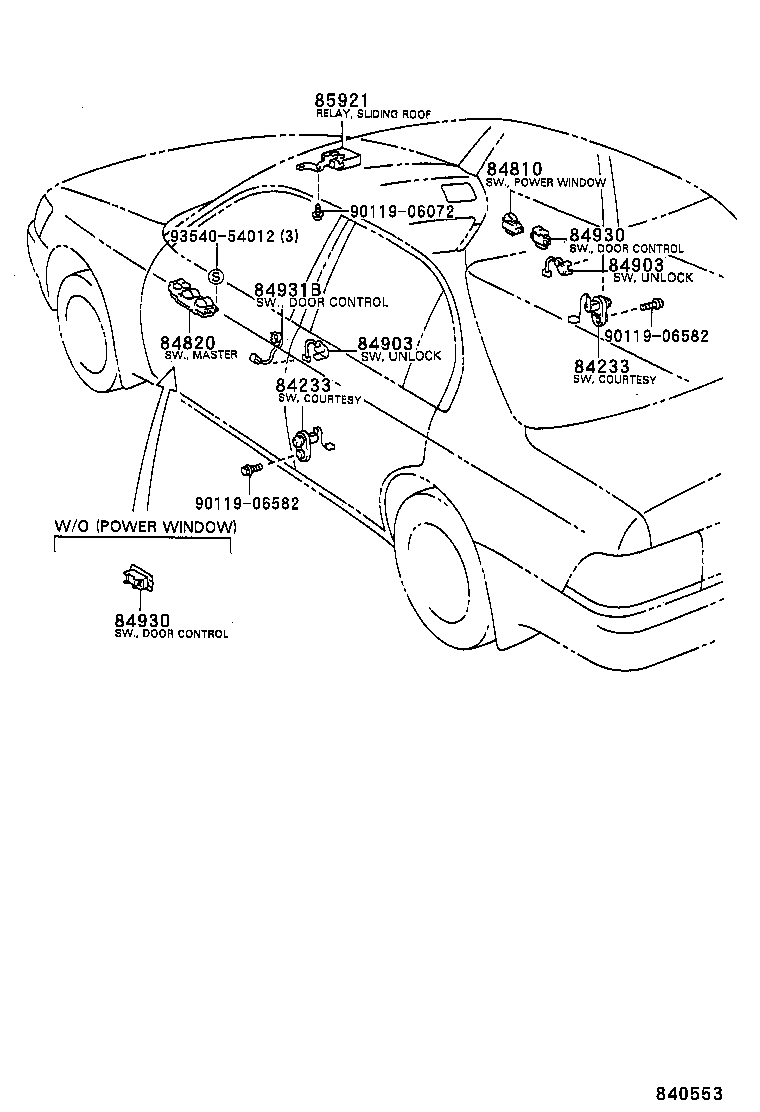

ILLUST NO. 7 OF 8(9206- )JPP
ROOF & FRONT DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#..JPP PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12120 |
AE10#..JPP PLANT NO.A31,32 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
AE10#..JPP PLANT NO.M12,B11,K21 |
2 | ||
| 84231-12120 |
AE10#..JPP PLANT NO.A31,32 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 84810-12080 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 84810-12080 |
AE10#..JPP |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12251 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 84820-12251 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 84820-33060 |
AE10#..JPP..N;AE101..JPP..USA |
1 | ||
| 84820-12250 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 84820-12251 |
AE10#..JPP |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..USA RH |
1 | ||
| 84903-13020 |
AE102..JPP..WG..4FC..USA LUGGAGE |
1 | ||
| 84903-13020 |
AE102..JPP..WG..USA LUGGAGE |
1 | ||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA RH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..USA LH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA LH |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..USA RH |
1 | ||
| 84903-13020 |
AE102..JPP..WG..4FC..USA LUGGAGE |
1 | ||
| 84903-13020 |
AE102..JPP..WG..USA LUGGAGE |
1 | ||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA RH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..USA LH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA LH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-13020 |
AE102..JPP..WG |
1 | ||
| 84930-12120 |
AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 84930-12120 |
AE102..JPP..WG..USA W(*PW) |
1 | ||
| 84930-12120 |
AE102..JPP..WG W(*PW) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-13020 |
AE102..JPP..WG |
1 | ||
| 84930-12120 |
AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 84930-12120 |
AE102..JPP..WG..USA W(*PW) |
1 | ||
| 84930-12120 |
AE102..JPP..WG W(*PW) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-12071 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND LH |
1 | ||
| 84931-12070 |
AE10#..JPP..USA;AE102..JPP..SED..CND LH |
1 | ||
| 84931-12060 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND RH |
1 | ||
| 84931-12060 |
AE10#..JPP..USA;AE102..JPP..SED..CND RH |
1 | ||
| 84931-12061 |
AE10#..JPP..N;AE101..JPP..USA RH |
1 | ||
| 84931-12070 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND LH |
1 | ||
| 84931-12061 |
AE10#..JPP RH |
1 | ||
| 84931-12061 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND RH |
1 | ||
| 84931-12071 |
AE10#..JPP LH |
1 | ||
| 84931-12071 |
AE10#..JPP..N;AE101..JPP..USA LH |
1 | ||
| 84931-12062 |
AE10#..JPP..N;AE101..JPP..USA RH |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-06582 | ||||
| 93540-54012 | ||||

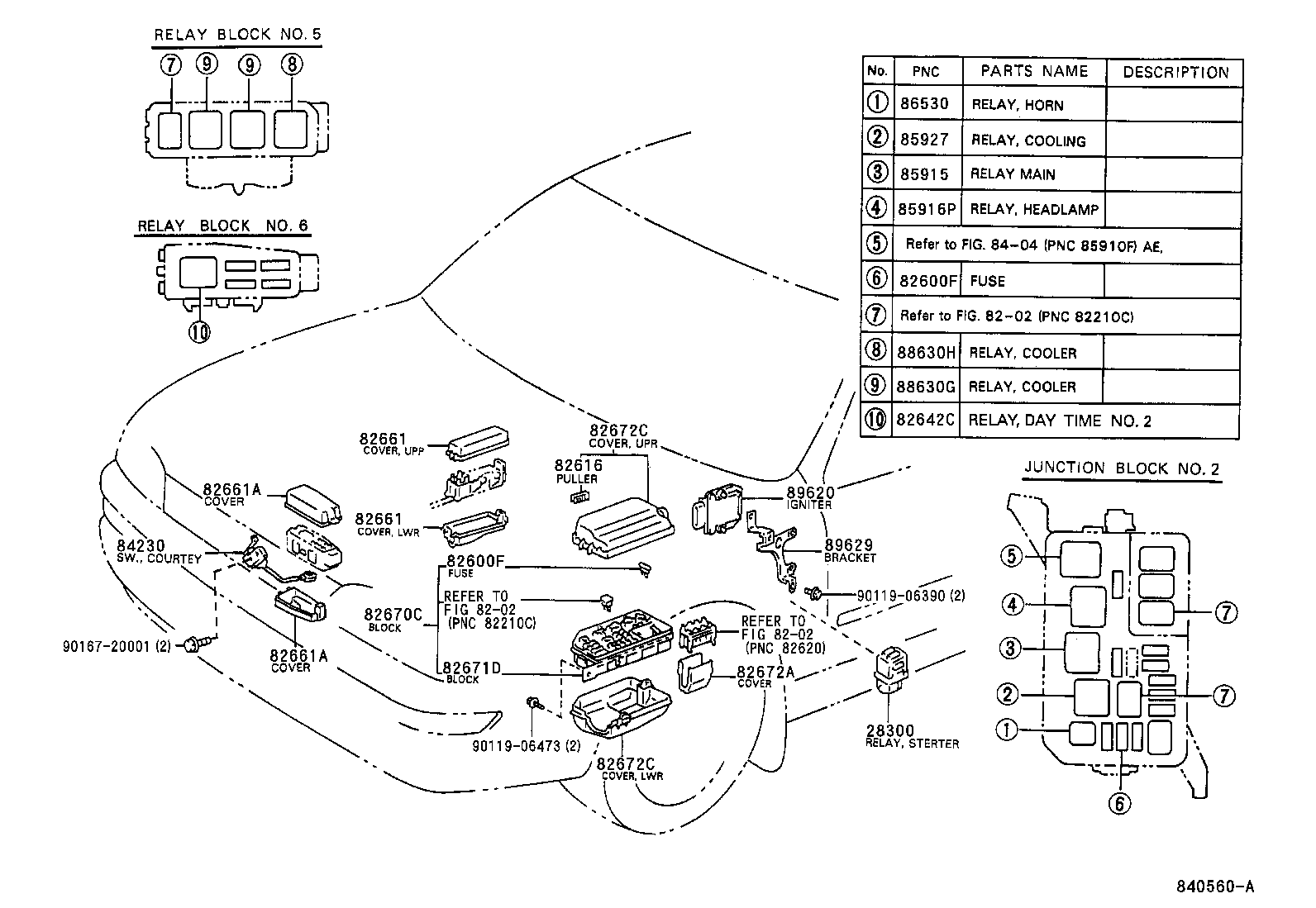

ILLUST NO. 2 OF 8(9206- )JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#..JPP 7.5A |
3 | ||
| 90982-09002 |
AE10#..JPP 10A |
4 | ||
| 90982-09004 |
AE10#..JPP 20A,YELLOW |
3 | ||
| 90982-09003 |
AE10#..JPP 15A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#..JPP 7.5A |
3 | ||
| 90982-09002 |
AE10#..JPP 10A |
4 | ||
| 90982-09004 |
AE10#..JPP 20A,YELLOW |
3 | ||
| 90982-09003 |
AE10#..JPP 15A |
4 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10#..JPP |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE10#..JPP UPR |
1 | ||
| 82661-12220 |
AE10#..JPP LWR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12200 |
AE10#..JPP UPR |
1 | ||
| 82661-12220 |
AE10#..JPP LWR |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12270 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 82670-12270 |
AE10#..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 82670-12270 |
AE10#..JPP |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12170 |
AE10#..JPP..USA |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
AE10#..JPP |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10#..JPP LOWER |
1 | ||
| 82672-12251 |
AE10#..JPP..USA UPPER |
1 | ||
| 82672-12250 |
AE10#..JPP..USA UPPER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10#..JPP LOWER |
1 | ||
| 82672-12251 |
AE10#..JPP..USA UPPER |
1 | ||
| 82672-12250 |
AE10#..JPP..USA UPPER |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-24030 |
AE101..JPP..USA;AE102..JPP..WG..USA W(ANTI THEFT DEVICE) |
1 | ||
| 84231-24030 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA W(ANTI THEFT DEVICE) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10#..JPP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10#..JPP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE10#..JPP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE10#..JPP |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AE10#..JPP |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90084-98010 |
AE10#..JPP BOSCH |
1 | ||
| 90987-04003 |
AE10#..JPP |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
AE10#..JPP |
1 | ||
| 89621-26010 |
AE102..JPP |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-12070 |
AE10#..JPP |
1 | ||
| 89629-12070 |
AE102..JPP |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06473 | ||||
| 90167-20001 | ||||
| Linked diagrams | ||||
| 8202 | ||||

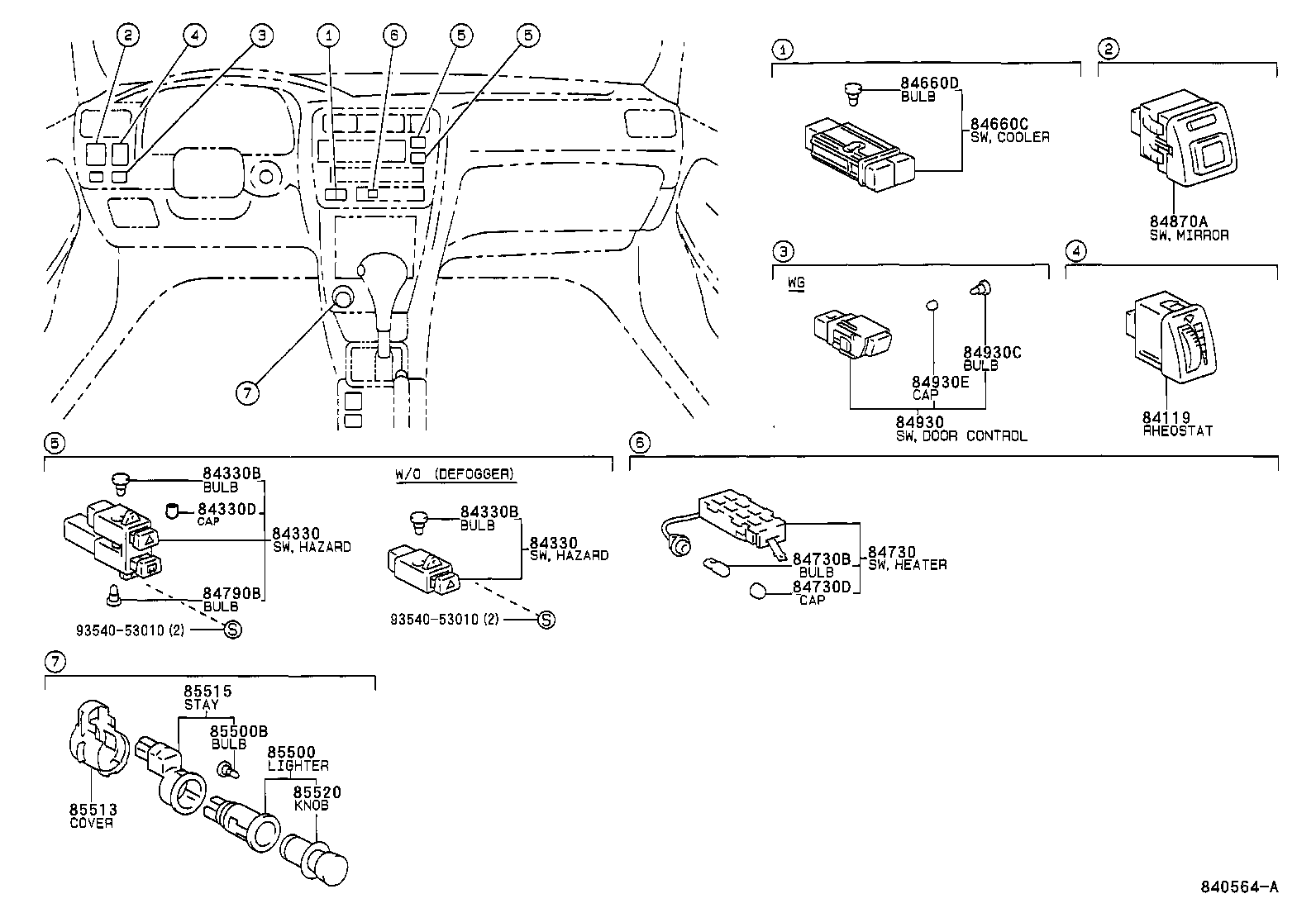

ILLUST NO. 3 OF 8(9206- )JPP
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12160 |
AE10#..JPP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12331 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 84332-12330 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 84332-12332 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12331 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 84332-12330 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 84332-12332 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10#..JPP 14V 0.84W |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10#..JPP 14V 0.84W |
1 | ||
| 84330D - CAP, HAZARD WARNING SWITCH BULB | ||||
| 84998-10610 |
AE10#..JPP |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12180 |
AE10#..JPP |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE102..JPP;AE101..JPP..D 14V 0.08A |
1 | ||
| 88607-16010 |
AE10#..JPP 14V 0.065A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12200 |
AE10#..JPP |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11040 |
AE10#..JPP 12V 2W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE10#..JPP |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10470 |
AE10#..JPP 14V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12100 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-13020 |
AE102..JPP..WG |
1 | ||
| 84930-12120 |
AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 84930-12120 |
AE102..JPP..WG..USA W(*PW) |
1 | ||
| 84930-12120 |
AE102..JPP..WG W(*PW) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10870 |
AE102..JPP..WG 14V 0.84W |
1 | ||
| 84930E - CAP(FOR DOOR CONTROL SWITCH BULB) | ||||
| 84998-10780 |
AE102..JPP..WG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
AE10#..JPP |
1 | ||
| 85500-89106 |
AE10#..JPP |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE10#..JPP 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE10#..JPP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12080 |
AE10#..JPP |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||

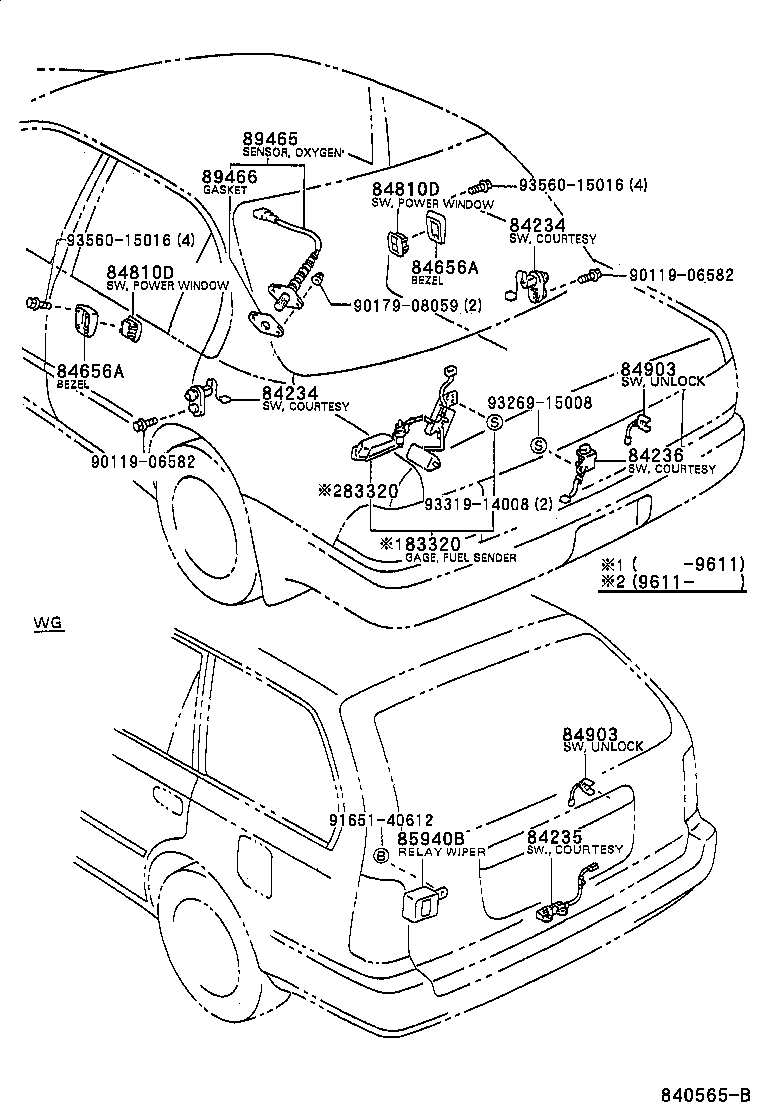

ILLUST NO. 8 OF 8(9206- )JPP
FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80195 |
AE10#..JPP |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80195 |
AE10#..JPP |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12120 |
AE10#..JPP PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#..JPP PLANT NO.M12,B11,K21 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12120 |
AE10#..JPP PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#..JPP PLANT NO.M12,B11,K21 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-13040 |
AE102..JPP..WG |
1 | ||
| 84231-13020 |
AE102..JPP..WG |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010B1 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010J3 |
AE10#..JPP DARK BLUE,TRIM8# |
2 | ||
| 84656-12010J3 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
2 | ||
| 84656-12010K0 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA TAUPE,TRIM9# |
2 | ||
| 84656-12010J3 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE10#..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010B1 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010K0 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND TAUPE,TRIM9# |
2 | ||
| 84656-12010K0 |
AE10#..JPP TAUPE,TRIM9# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010B1 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010J3 |
AE10#..JPP DARK BLUE,TRIM8# |
2 | ||
| 84656-12010J3 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
2 | ||
| 84656-12010K0 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA TAUPE,TRIM9# |
2 | ||
| 84656-12010J3 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE10#..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010B1 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010K0 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND TAUPE,TRIM9# |
2 | ||
| 84656-12010K0 |
AE10#..JPP TAUPE,TRIM9# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12060J3 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA DARK BLUE,TRIM8# |
2 | ||
| 84810-12060K0 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND TAUPE,TRIM9# |
2 | ||
| 84810-12060B1 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060K0 |
AE10#..JPP TAUPE,TRIM9# |
2 | ||
| 84810-12060K0 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA TAUPE,TRIM9# |
2 | ||
| 84810-12060J3 |
AE10#..JPP DARK BLUE,TRIM8# |
2 | ||
| 84810-12060B1 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060B1 |
AE10#..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060J3 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12060J3 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA DARK BLUE,TRIM8# |
2 | ||
| 84810-12060K0 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND TAUPE,TRIM9# |
2 | ||
| 84810-12060B1 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060K0 |
AE10#..JPP TAUPE,TRIM9# |
2 | ||
| 84810-12060K0 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA TAUPE,TRIM9# |
2 | ||
| 84810-12060J3 |
AE10#..JPP DARK BLUE,TRIM8# |
2 | ||
| 84810-12060B1 |
AE102..JPP..WG..USA;AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060B1 |
AE10#..JPP SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060J3 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
2 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..USA RH |
1 | ||
| 84903-13020 |
AE102..JPP..WG..4FC..USA LUGGAGE |
1 | ||
| 84903-13020 |
AE102..JPP..WG..USA LUGGAGE |
1 | ||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA RH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..USA LH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA LH |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..USA RH |
1 | ||
| 84903-13020 |
AE102..JPP..WG..4FC..USA LUGGAGE |
1 | ||
| 84903-13020 |
AE102..JPP..WG..USA LUGGAGE |
1 | ||
| 84903-12070 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA RH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..USA LH |
1 | ||
| 84903-12060 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA LH |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12072 |
AE102..JPP..WG |
1 | ||
| 85940-12070 |
AE102..JPP..WG |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19535 |
AE10#..JPP |
1 | ||
| 89465-19555 |
AE10#..JPP..USA CALIFORNIA SPEC,RR |
1 | ||
| 89465-19545 |
AE10#..JPP..USA CALIFORNIA SPEC,FR |
1 | ||
| 89465-12380 |
AE102..JPP FR |
1 | ||
| 89465-12380 |
AE10#..JPP FR |
1 | ||
| 89465-12390 |
AE102..JPP RR |
1 | ||
| 89465-12390 |
AE10#..JPP RR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AE10#..JPP..USA CALIFORNIA SPEC,FR |
1 | ||
| 89466-20020 |
AE10#..JPP |
1 | ||
| 89466-12020 |
AE10#..JPP..USA CALIFORNIA SPEC,RR |
1 | ||
| Common parts | ||||
| 90119-06582 | ||||
| 90179-08059 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
| 93560-15016 | ||||

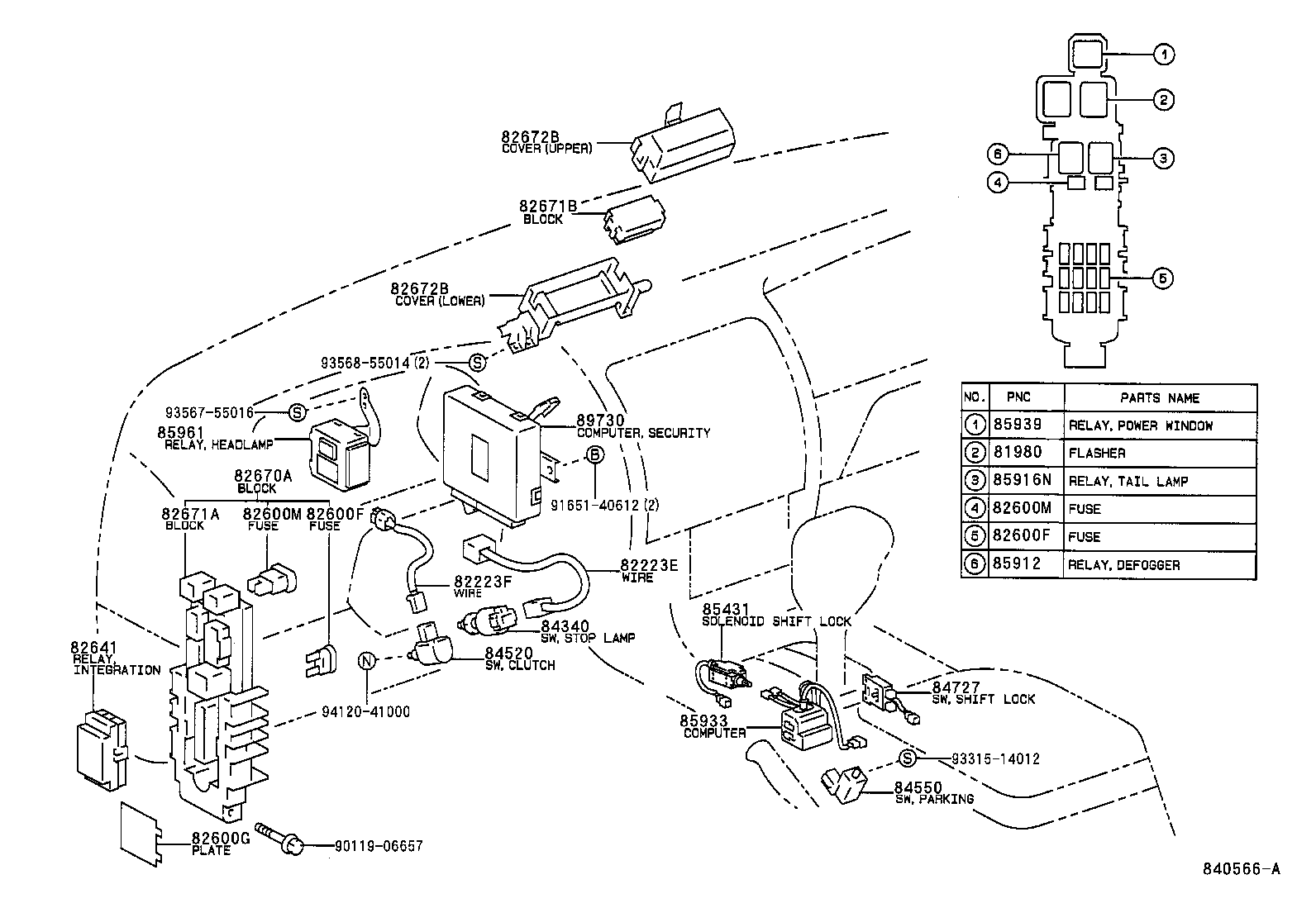

ILLUST NO. 4 OF 8(9206- )JPP
COEL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE10#..JPP NIPPONDENSO |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10#..JPP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#..JPP 7.5A |
3 | ||
| 90982-09002 |
AE10#..JPP 10A |
4 | ||
| 90982-09004 |
AE10#..JPP 20A,YELLOW |
3 | ||
| 90982-09003 |
AE10#..JPP 15A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#..JPP 7.5A |
3 | ||
| 90982-09002 |
AE10#..JPP 10A |
4 | ||
| 90982-09004 |
AE10#..JPP 20A,YELLOW |
3 | ||
| 90982-09003 |
AE10#..JPP 15A |
4 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12180 |
AE10#..JPP |
1 | ||
| 82683-12181 |
AE10#..JPP |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#..JPP 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#..JPP 30A,PINK |
2 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#..JPP 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#..JPP 30A,PINK |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-AB010 |
AE10#..JPP |
1 | ||
| 82641-12022 |
AE10#..JPP |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12340 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 82670-12340 |
AE102..JPP |
1 | ||
| 82670-12340 |
AE10#..JPP..(4FC,5F);AE101..JPP..3FC..CND |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12210 |
AE10#..JPP |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10#..JPP |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12290 |
AE10#..JPP LWR |
1 | ||
| 82672-12300 |
AE10#..JPP UPR |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12290 |
AE10#..JPP LWR |
1 | ||
| 82672-12300 |
AE10#..JPP UPR |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32070 |
AE102..JPP..E |
1 | ||
| 84340-32050 |
AE10#..JPP..(D,N) |
1 | ||
| 84340-32110 |
AE102..JPP..N;AE101..JPP..CND W(CRUISE CONTROL) |
1 | ||
| 84340-32110 |
AE102..JPP..E |
1 | ||
| 84340-32070 |
AE10#..JPP..N W(CRUISE CONTROL) |
1 | ||
| 84340-32090 |
AE10#..JPP..(D,N) |
1 | ||
| 84340-32070 |
AE102..JPP..N;AE101..JPP..CND W(CRUISE CONTROL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10#..JPP |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-01010 |
AE102..JPP..4FC (L) |
1 | ||
| 84727-12040 |
AE102..JPP..4FC (J) |
1 | ||
| 84727-12040 |
AE102..JPP..4FC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AE10#..JPP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AE10#..JPP |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-12091 |
AE102..JPP..4FC |
1 | ||
| 85933-12060 |
AE102..JPP..4FC |
1 | ||
| 85933-12090 |
AE102..JPP..4FC |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AE102..JPP..USA;AE10#..JPP..SED..CND |
1 | ||
| 90987-02009 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 90987-02009 |
AE102..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 90987-02009 |
AE10#..JPP..N |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-12010 |
AE10#..JPP |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-12031 |
AE102..JPP..WG..USA |
1 | ||
| 89730-12031 |
AE102..JPP..WG..4FC..USA |
1 | ||
| Common parts | ||||
| 90119-06657 | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 94120-41000 | ||||

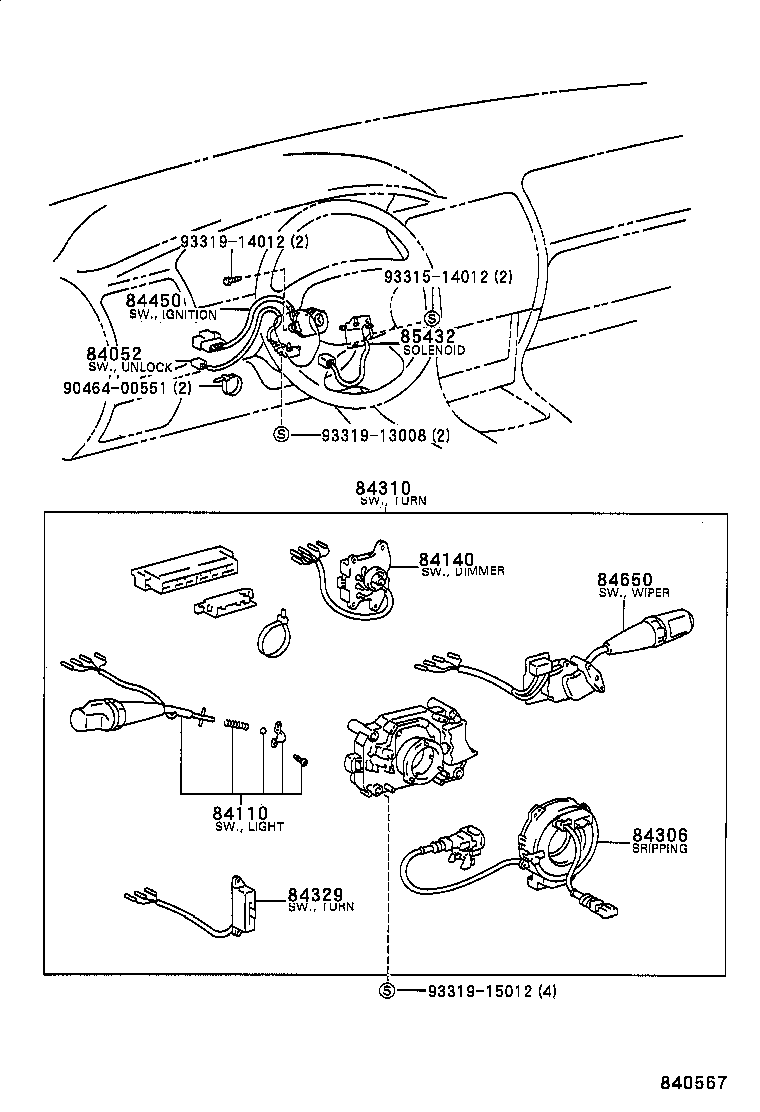

ILLUST NO. 6 OF 8(9206- )JPP
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12060 |
AE10#..JPP |
1 | ||
| 84052-20030 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 84052-12060 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 84052-16020 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA W(POWER STEERING) |
1 | ||
| 84052-16020 |
AE10#..JPP..N W(POWER STEERING) |
1 | ||
| 84052-16020 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80114 |
AE102..JPP..WG..USA W(*RW) |
1 | ||
| 84112-80115 |
AE102..JPP..USA;AE10#..JPP..SED..CND |
1 | ||
| 84112-80115 |
AE102..JPP..WG..USA W(*IW & *RW) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12330 |
AE102..JPP..WG..USA W(*IW & *RW) |
1 | ||
| 84140-12330 |
AE102..JPP..USA;AE10#..JPP..SED..CND |
1 | ||
| 84140-12370 |
AE102..JPP..WG..USA W(*RW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33020 |
AE102..JPP..E |
1 | ||
| 84306-33020 |
AE102..JPP..N;AE101..JPP..CND W(*IW) |
1 | ||
| 84306-12050 |
AE102..JPP..WG..USA W(*RW) |
1 | ||
| 84306-33020 |
AE10#..JPP..N W(*IW) |
1 | ||
| 84306-12010 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A650 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND W(*VIW) |
1 | ||
| 84310-1A640 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND |
1 | ||
| 84310-1A650 |
AE102..JPP..E |
1 | ||
| 84310-1A740 |
AE102..JPP..WG..USA W(*RW) |
1 | ||
| 84310-1A750 |
AE102..JPP..WG..USA W(*RW & *IW) |
1 | ||
| 84310-1A650 |
AE102..JPP..USA;AE10#..JPP..SED..N..CND W(*VIW) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12080 |
AE101..JPP;AE102..JPP..WG |
1 | ||
| 84329-12080 |
AE102..JPP..WG;AE101..JPP..USA |
1 | ||
| 84329-12080 |
AE102..JPP..WG;AE101..JPP..USA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AE10#..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A230 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND W(*VIW) |
1 | ||
| 84652-1A410 |
AE102..JPP..WG..USA W(*RW & *IW) |
1 | ||
| 84652-1A230 |
AE102..JPP..E |
1 | ||
| 84652-1A230 |
AE102..JPP..USA;AE10#..JPP..SED..N..CND W(*VIW) |
1 | ||
| 84652-1A220 |
AE102..JPP..N..USA;AE10#..JPP..SED..CND |
1 | ||
| 84652-1A430 |
AE102..JPP..WG..USA W(*RW) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-12010 |
AE102..JPP..WG..4FC;AE101..JPP..3FC..CND;AE102..JPP..SED..4FC..N..USA W(POWER STEERING) |
1 | ||
| 85432-12010 |
AE10#..JPP..ATM..N W(POWER STEERING) |
1 | ||
| 85432-20050 |
AE101..JPP..3FC;AE102..JPP..WG..4FC;AE102..JPP..SED..4FC..N..USA |
1 | ||
| 85432-12010 |
AE102..JPP..E;AE102..JPP..SED..4FC..CND |
1 | ||
| 85432-20050 |
AE10#..JPP..ATM |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

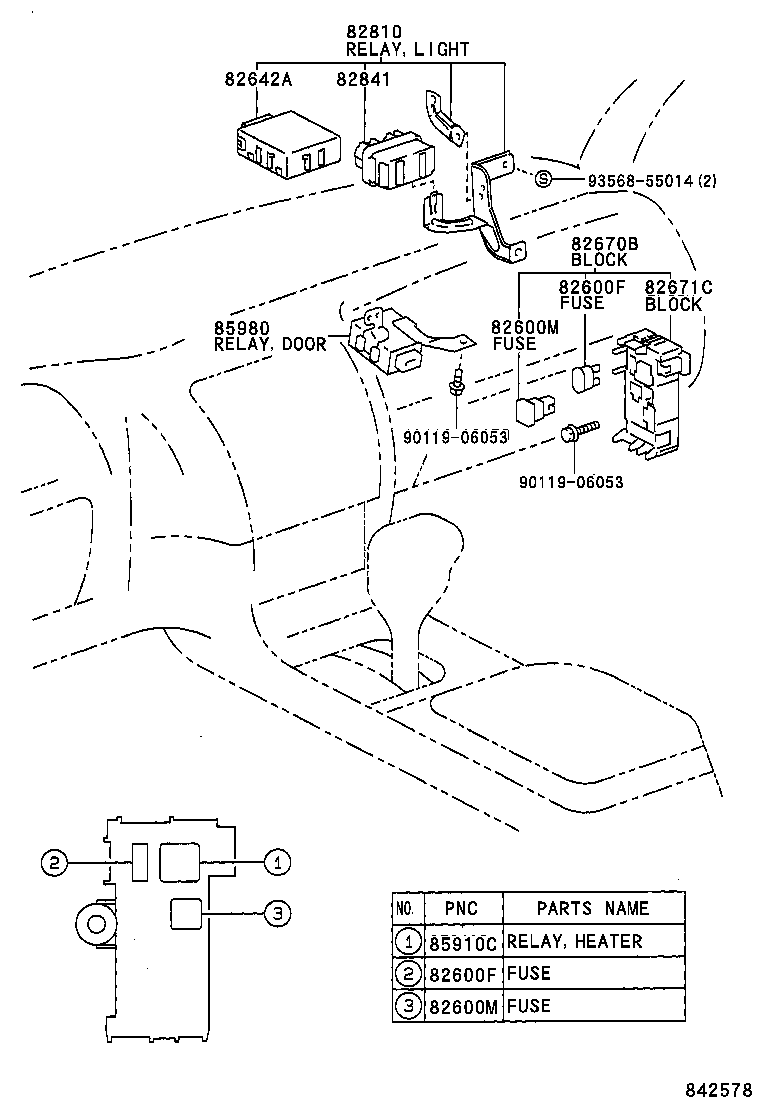

ILLUST NO. 5 OF 8(9206- )JPP
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#..JPP 7.5A |
3 | ||
| 90982-09002 |
AE10#..JPP 10A |
4 | ||
| 90982-09004 |
AE10#..JPP 20A,YELLOW |
3 | ||
| 90982-09003 |
AE10#..JPP 15A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#..JPP 7.5A |
3 | ||
| 90982-09002 |
AE10#..JPP 10A |
4 | ||
| 90982-09004 |
AE10#..JPP 20A,YELLOW |
3 | ||
| 90982-09003 |
AE10#..JPP 15A |
4 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#..JPP 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#..JPP 30A,PINK |
2 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#..JPP 40A,GREEN |
1 | ||
| 90982-10001 |
AE10#..JPP 30A,PINK |
2 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12380 |
AE10#..JPP |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12200 |
AE10#..JPP |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10#..JPP |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12240 |
AE10#..JPP |
1 | ||
| 85980-12180 |
AE10#..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 85980-12180 |
AE101..JPP;AE102..JPP..USA;AE102..JPP..SED..CND |
1 | ||
| 85980-12240 |
AE10#..JPP..N;AE101..JPP..USA |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
