AE102L-AWPNKA (1992)
Toyota Corolla Jpp
(9206- )JPP

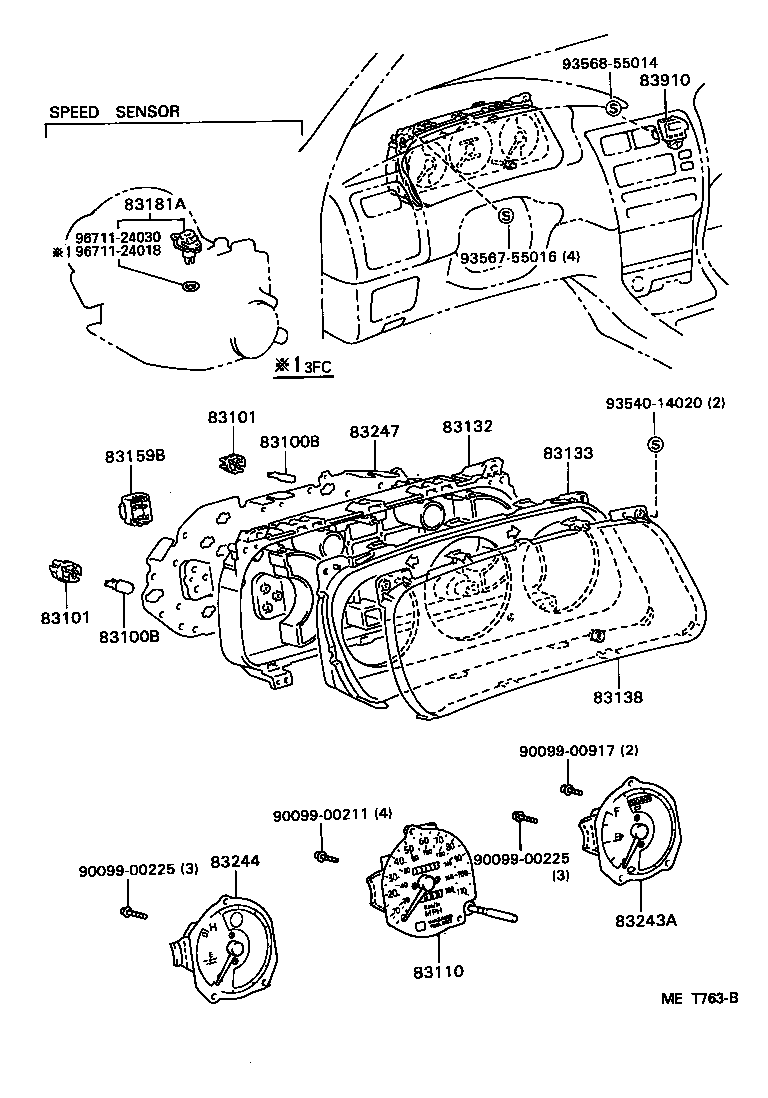

W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02020 |
AE102..JPP..USA 14V 2.0W |
1 | ||
| 99132-12034 |
AE102..JPP..E;AE102..JPP..5F;AE101..JPP..CND;AE102..JPP..4FC..CND 12V 3.4W |
1 | ||
| 83119-03030 |
AE102..JPP..USA 12V 1.4W,(L) |
13 | ||
| 83119-32010 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83109-30070 |
AE10#..JPP 14V 2.0W,W/O SOCKET |
4 | ||
| 83120-02030 |
AE102..JPP..USA 14V 1.4W,W(SOCKET) |
13 | ||
| 83109-12030 |
AE10#..JPP 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
AE102..JPP;AE101..JPP..D 12V 1.2W W/O SOCKET,(J) |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02020 |
AE102..JPP..USA 14V 2.0W |
1 | ||
| 99132-12034 |
AE102..JPP..E;AE102..JPP..5F;AE101..JPP..CND;AE102..JPP..4FC..CND 12V 3.4W |
1 | ||
| 83119-03030 |
AE102..JPP..USA 12V 1.4W,(L) |
13 | ||
| 83119-32010 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83109-30070 |
AE10#..JPP 14V 2.0W,W/O SOCKET |
4 | ||
| 83120-02030 |
AE102..JPP..USA 14V 1.4W,W(SOCKET) |
13 | ||
| 83109-12030 |
AE10#..JPP 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
AE102..JPP;AE101..JPP..D 12V 1.2W W/O SOCKET,(J) |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-32020 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83101-14040 |
AE10#..JPP 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-14030 |
AE10#..JPP 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-32020 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83101-14040 |
AE10#..JPP 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-14030 |
AE10#..JPP 12V 3.4W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1H020 |
AE10#..JPP..(D,N)..USA |
1 | ||
| 83110-1H090 |
AE102..JPP..E |
1 | ||
| 83110-02101 |
AE102..JPP..N..USA (L) |
1 | ||
| 83110-1H021 |
AE10#..JPP..(D,N)..USA (J) |
1 | ||
| 83110-02111 |
AE102..JPP..E (L) |
1 | ||
| 83110-1H091 |
AE102..JPP..E (J) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A610 |
AE10#..JPP |
1 | ||
| 83132-1A610 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83132-1A630 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H150 |
AE10#..JPP |
1 | ||
| 83133-1H170 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83133-1H150 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A170 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83138-1A150 |
AE10#..JPP |
1 | ||
| 83138-1A150 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
AE10#..JPP |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE10#..JPP..(4FC,5F) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H130 |
AE102..JPP..E |
1 | ||
| 83243-1H291 |
AE101..JPP..USA;AE102..JPP..WG..USA SECURITY SYSTEM |
1 | ||
| 83243-1H330 |
AE102..JPP..N..USA |
1 | ||
| 83243-1H131 |
AE102..JPP..E |
1 | ||
| 83243-1H331 |
AE102..JPP..N..USA |
1 | ||
| 83243-1H291 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA SECURITY SYSTEM |
1 | ||
| 83243-1H290 |
AE101..JPP..USA;AE102..JPP..WG..USA SECURITY SYSTEM |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E010 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83244-1E130 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83244-1E130 |
AE10#..JPP |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1H650 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83149-12010 |
AE102..JPP..WG..4FC..USA SECURITY SYSTEM |
1 | ||
| 83149-12010 |
AE102..JPP..WG..USA SECURITY SYSTEM |
1 | ||
| 83149-12030 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA |
1 | ||
| 83149-12030 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12470 |
AE10#..JPP..N |
1 | ||
| 83910-12470 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
(9206- )JPP

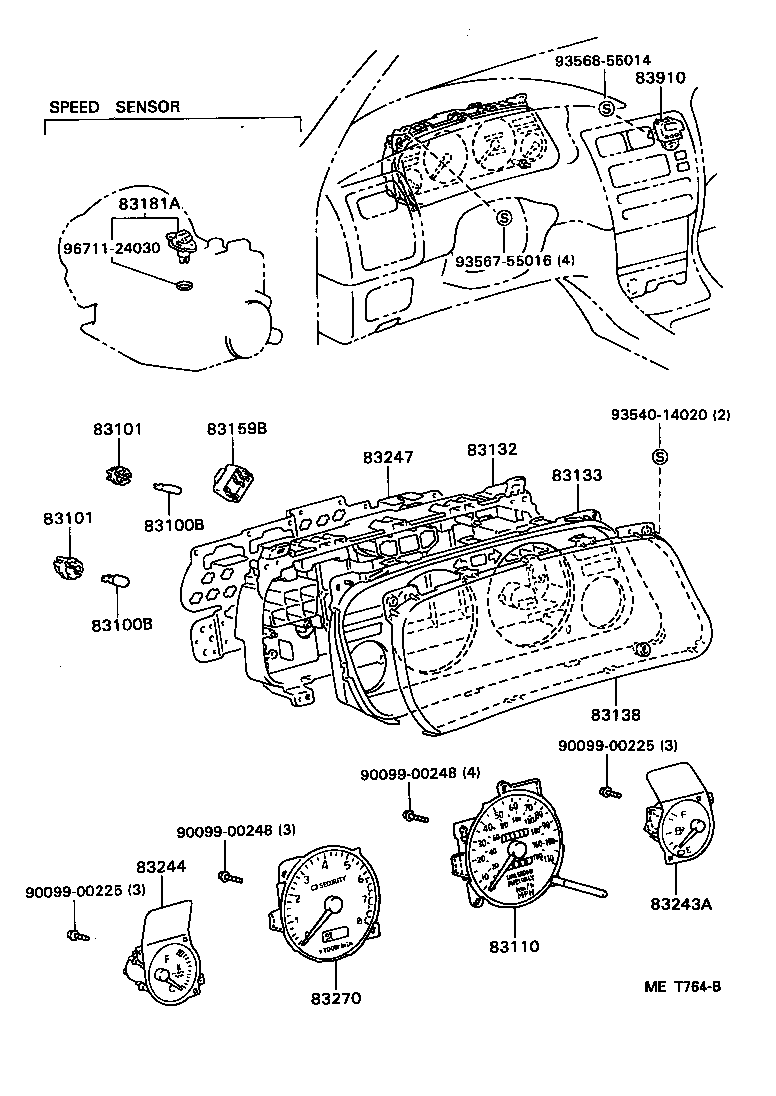

W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02020 |
AE102..JPP..USA 14V 2.0W |
1 | ||
| 99132-12034 |
AE102..JPP..E;AE102..JPP..5F;AE101..JPP..CND;AE102..JPP..4FC..CND 12V 3.4W |
1 | ||
| 83119-03030 |
AE102..JPP..USA 12V 1.4W,(L) |
13 | ||
| 83119-32010 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83109-30070 |
AE10#..JPP 14V 2.0W,W/O SOCKET |
4 | ||
| 83120-02030 |
AE102..JPP..USA 14V 1.4W,W(SOCKET) |
13 | ||
| 83109-12030 |
AE10#..JPP 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
AE102..JPP;AE101..JPP..D 12V 1.2W W/O SOCKET,(J) |
13 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83120-02020 |
AE102..JPP..USA 14V 2.0W |
1 | ||
| 99132-12034 |
AE102..JPP..E;AE102..JPP..5F;AE101..JPP..CND;AE102..JPP..4FC..CND 12V 3.4W |
1 | ||
| 83119-03030 |
AE102..JPP..USA 12V 1.4W,(L) |
13 | ||
| 83119-32010 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83109-30070 |
AE10#..JPP 14V 2.0W,W/O SOCKET |
4 | ||
| 83120-02030 |
AE102..JPP..USA 14V 1.4W,W(SOCKET) |
13 | ||
| 83109-12030 |
AE10#..JPP 12V 3.4W,BLUE CAP |
4 | ||
| 90981-11018 |
AE102..JPP;AE101..JPP..D 12V 1.2W W/O SOCKET,(J) |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-32020 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83101-14040 |
AE10#..JPP 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-14030 |
AE10#..JPP 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-32020 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA 14V 3.0W |
1 | ||
| 83101-14040 |
AE10#..JPP 12V 1.4W |
1 | ||
| 83101-32020 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA 14V 3.0W LONG LIFE |
1 | ||
| 83101-14030 |
AE10#..JPP 12V 3.4W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1H020 |
AE10#..JPP..(D,N)..USA |
1 | ||
| 83110-1H090 |
AE102..JPP..E |
1 | ||
| 83110-02101 |
AE102..JPP..N..USA (L) |
1 | ||
| 83110-1H021 |
AE10#..JPP..(D,N)..USA (J) |
1 | ||
| 83110-02111 |
AE102..JPP..E (L) |
1 | ||
| 83110-1H091 |
AE102..JPP..E (J) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A610 |
AE10#..JPP |
1 | ||
| 83132-1A610 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83132-1A630 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H150 |
AE10#..JPP |
1 | ||
| 83133-1H170 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83133-1H150 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A170 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83138-1A150 |
AE10#..JPP |
1 | ||
| 83138-1A150 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
AE10#..JPP |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE10#..JPP..(4FC,5F) |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1H130 |
AE102..JPP..E |
1 | ||
| 83243-1H291 |
AE101..JPP..USA;AE102..JPP..WG..USA SECURITY SYSTEM |
1 | ||
| 83243-1H330 |
AE102..JPP..N..USA |
1 | ||
| 83243-1H131 |
AE102..JPP..E |
1 | ||
| 83243-1H331 |
AE102..JPP..N..USA |
1 | ||
| 83243-1H291 |
AE101..JPP..USA;AE102..JPP..WG..4FC..USA SECURITY SYSTEM |
1 | ||
| 83243-1H290 |
AE101..JPP..USA;AE102..JPP..WG..USA SECURITY SYSTEM |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1E010 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83244-1E130 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA |
1 | ||
| 83244-1E130 |
AE10#..JPP |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1H650 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 83149-12010 |
AE102..JPP..WG..4FC..USA SECURITY SYSTEM |
1 | ||
| 83149-12010 |
AE102..JPP..WG..USA SECURITY SYSTEM |
1 | ||
| 83149-12030 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA |
1 | ||
| 83149-12030 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1H270 |
AE102..JPP..E |
1 | ||
| 83242-1E790 |
AE102..JPP..E;AE102..JPP..SED..5F..USA |
1 | ||
| 83242-1E790 |
AE102..JPP..E |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12470 |
AE10#..JPP..N |
1 | ||
| 83910-12470 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| Common parts | ||||
| 90099-00225 | ||||
| 90099-00248 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 96711-24030 | ||||
