AE102L-AWPNKA (1992)
Toyota Corolla Jpp

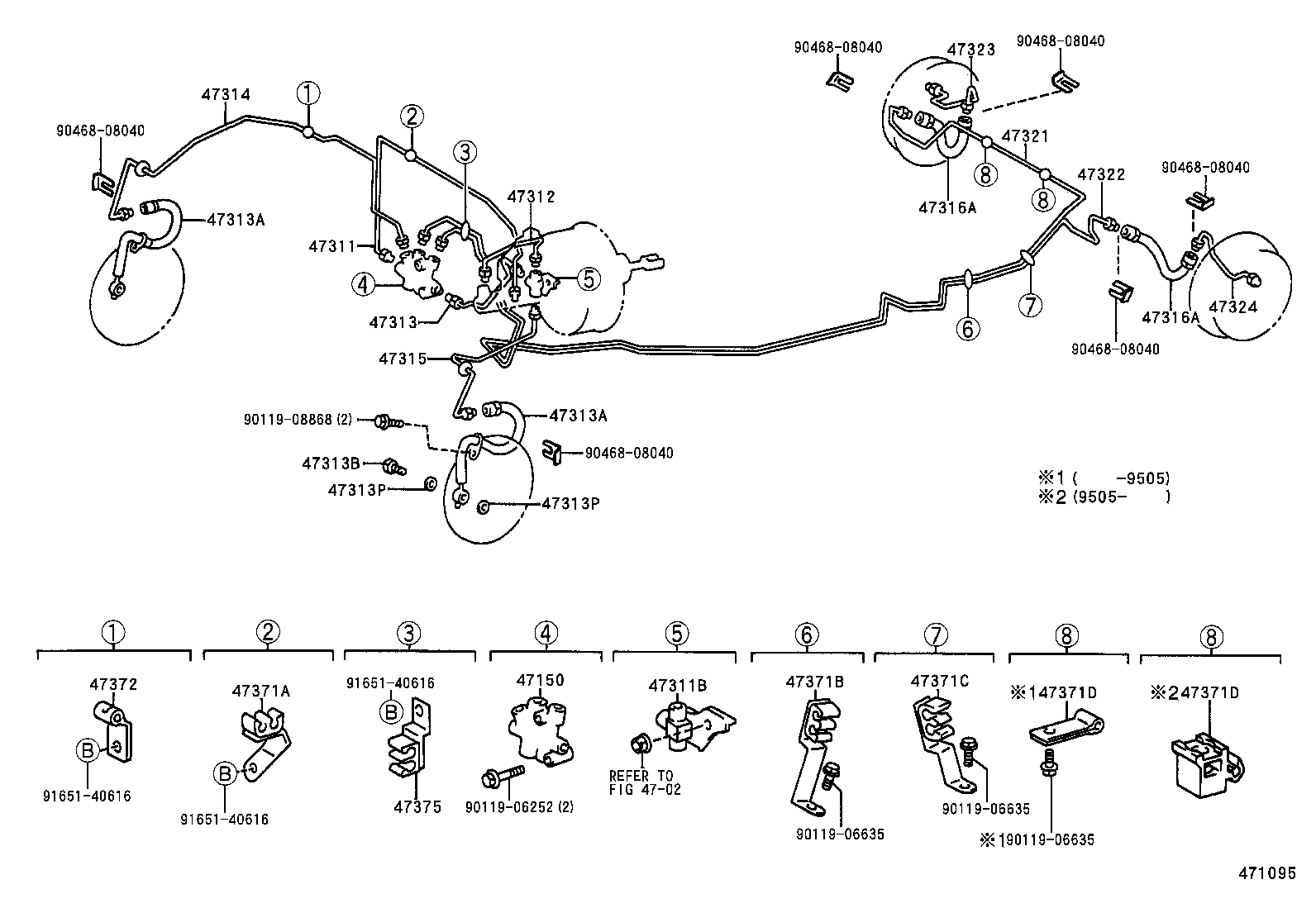

ILLUST NO. 1 OF 2(9206- )JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12240 |
AE10#..JPP |
1 | ||
| 47150-12150 |
AE10#..JPP W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12490 |
AE10#..JPP |
1 | ||
| 47311-12400 |
AE10#..JPP W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10207 |
AE10#..JPP W(ABS) |
1 | ||
| 90413-10159 |
AE10#..JPP |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10208 |
AE10#..JPP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12210 |
AE10#..JPP W(ABS) |
1 | ||
| 47313-12300 |
AE10#..JPP |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#..JPP LH |
1 | ||
| 90947-02659 |
AE10#..JPP RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#..JPP LH |
1 | ||
| 90947-02659 |
AE10#..JPP RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#..JPP |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12370 |
AE10#..JPP |
1 | ||
| 47314-12350 |
AE10#..JPP W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12420 |
AE10#..JPP |
1 | ||
| 47315-12480 |
AE10#..JPP W(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12220 |
AE10#..JPP |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#..JPP..(D,N) |
2 | ||
| 90947-02783 |
AE102..JPP..E |
2 | ||
| 90947-02657 |
AE10#..JPP |
2 | ||
| 90947-02809 |
AE10#..JPP |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#..JPP..(D,N) |
2 | ||
| 90947-02783 |
AE102..JPP..E |
2 | ||
| 90947-02657 |
AE10#..JPP |
2 | ||
| 90947-02809 |
AE10#..JPP |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12070 |
AE10#..JPP |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12210 |
AE10#..JPP |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12120 |
AE10#..JPP..(D,N) |
1 | ||
| 47321-12150 |
AE102..JPP..E |
1 | ||
| 47321-12120 |
AE10#..JPP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12270 |
AE10#..JPP..(D,N) |
1 | ||
| 47322-12270 |
AE10#..JPP |
1 | ||
| 47322-12300 |
AE102..JPP..E |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE10#..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE10#..JPP |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12050 |
AE10#..JPP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12120 |
AE10#..JPP |
1 | ||
| 47371-12110 |
AE10#..JPP W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12010 |
AE10#..JPP..(D,N) |
1 | ||
| 47375-12010 |
AE10#..JPP |
1 | ||
| 47375-12040 |
AE102..JPP..E |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12060 |
AE102..JPP..E |
1 | ||
| 47375-12020 |
AE10#..JPP |
1 | ||
| 47375-12020 |
AE10#..JPP..(D,N) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#..JPP |
2 | ||
| 90461-08687 |
AE10#..JPP..(D,N) |
2 | ||
| 47371-12150 |
AE102..JPP..E |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12040 |
AE10#..JPP W(ABS) |
1 | ||
| 90461-08652 |
AE10#..JPP |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12020 |
AE10#..JPP |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90080-46172 | ||||
| 90080-48029 | ||||
| 90080-48031 | ||||
| 90080-48034 | ||||
| 90080-48036 | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90464-00478 | ||||
| 90468-08040 | ||||
| 90480-01425 | ||||
| 90480-01556 | ||||
| 90480-01571 | ||||
| 90480-01591 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(9206- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12240 |
AE10#..JPP |
1 | ||
| 47150-12150 |
AE10#..JPP W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12490 |
AE10#..JPP |
1 | ||
| 47311-12400 |
AE10#..JPP W(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10207 |
AE10#..JPP W(ABS) |
1 | ||
| 90413-10159 |
AE10#..JPP |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12260 |
AE10#..JPP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12210 |
AE10#..JPP W(ABS) |
1 | ||
| 47313-12300 |
AE10#..JPP |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#..JPP LH |
1 | ||
| 90947-02659 |
AE10#..JPP RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02660 |
AE10#..JPP LH |
1 | ||
| 90947-02659 |
AE10#..JPP RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
AE10#..JPP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#..JPP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE10#..JPP |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12370 |
AE10#..JPP |
1 | ||
| 47314-12350 |
AE10#..JPP W(ABS) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12420 |
AE10#..JPP |
1 | ||
| 47315-12480 |
AE10#..JPP W(ABS) |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#..JPP..(D,N) |
2 | ||
| 90947-02783 |
AE102..JPP..E |
2 | ||
| 90947-02657 |
AE10#..JPP |
2 | ||
| 90947-02809 |
AE10#..JPP |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02809 |
AE10#..JPP..(D,N) |
2 | ||
| 90947-02783 |
AE102..JPP..E |
2 | ||
| 90947-02657 |
AE10#..JPP |
2 | ||
| 90947-02809 |
AE10#..JPP |
2 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12120 |
AE10#..JPP..(D,N) |
1 | ||
| 47321-12150 |
AE102..JPP..E |
1 | ||
| 47321-12120 |
AE10#..JPP |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12270 |
AE10#..JPP..(D,N) |
1 | ||
| 47322-12270 |
AE10#..JPP |
1 | ||
| 47322-12300 |
AE102..JPP..E |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE10#..JPP |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE10#..JPP |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12120 |
AE10#..JPP |
1 | ||
| 47371-12110 |
AE10#..JPP W(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47375-12010 |
AE10#..JPP..(D,N) |
1 | ||
| 47375-12010 |
AE10#..JPP |
1 | ||
| 47375-12040 |
AE102..JPP..E |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47375-12060 |
AE102..JPP..E |
1 | ||
| 47375-12020 |
AE10#..JPP |
1 | ||
| 47375-12020 |
AE10#..JPP..(D,N) |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#..JPP |
2 | ||
| 90461-08687 |
AE10#..JPP..(D,N) |
2 | ||
| 47371-12150 |
AE102..JPP..E |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90461-08687 |
AE10#..JPP |
2 | ||
| 90461-08687 |
AE10#..JPP..(D,N) |
2 | ||
| 47371-12150 |
AE102..JPP..E |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12040 |
AE10#..JPP W(ABS) |
1 | ||
| 90461-08652 |
AE10#..JPP |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47375-12030 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 4702 | ||||

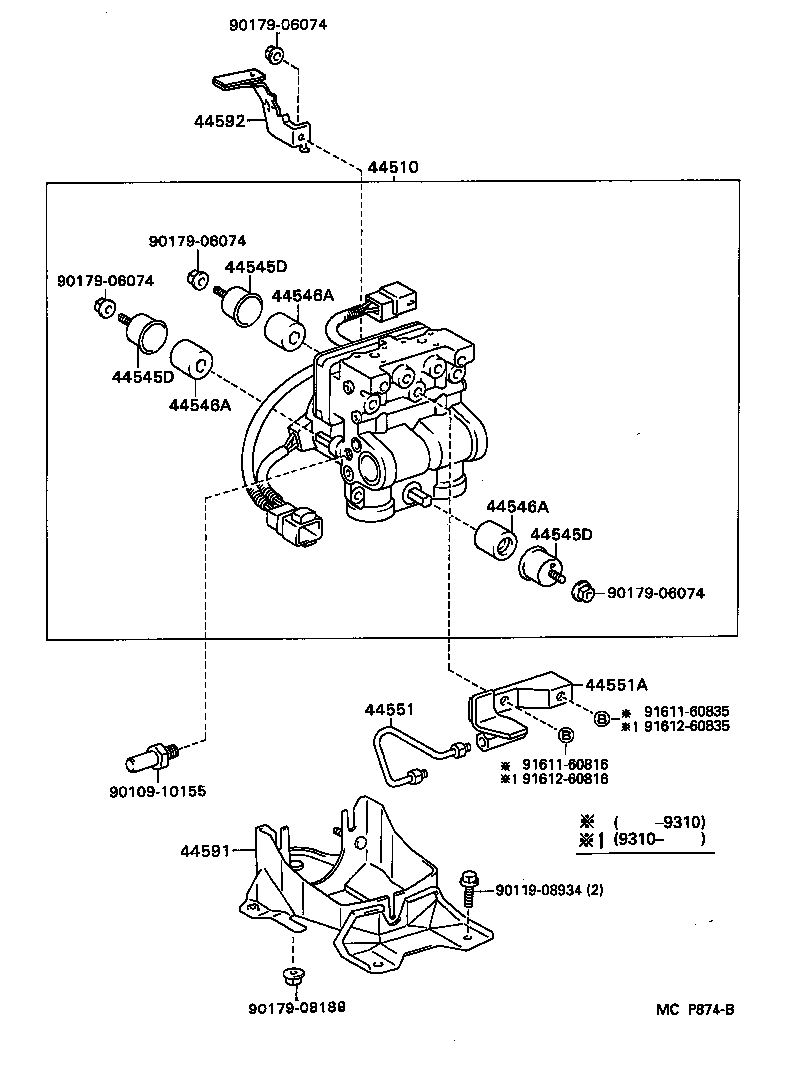

ILLUST NO. 2 OF 2(9206-9308)JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12070 |
AE10#..JPP |
1 | ||
| 44510-12110 |
AE10#..JPP |
1 | ||
| 44510-12160 |
AE10#..JPP |
1 | ||
| 44510-12090 |
AE10#..JPP |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AE10#..JPP |
3 | ||
| 44545-12020 |
AE10#..JPP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AE10#..JPP |
3 | ||
| 44545-12020 |
AE10#..JPP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AE10#..JPP |
3 | ||
| 44545-12020 |
AE10#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#..JPP |
3 | ||
| 44546-12090 |
AE10#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#..JPP |
3 | ||
| 44546-12090 |
AE10#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#..JPP |
3 | ||
| 44546-12090 |
AE10#..JPP |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12040 |
AE10#..JPP |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90904-12006 |
AE10#..JPP |
1 | ||
| 90412-10197 |
AE10#..JPP |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12030 |
AE10#..JPP |
1 | ||
| 44591-12031 |
AE10#..JPP |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-12020 |
AE10#..JPP |
1 | ||
| 44594-12010 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90119-08966 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91611-60814 | ||||
ILLUST NO. 2 OF 2(9308- )JPP
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-12070 |
AE10#..JPP |
1 | ||
| 44510-12110 |
AE10#..JPP |
1 | ||
| 44510-12160 |
AE10#..JPP |
1 | ||
| 44510-12090 |
AE10#..JPP |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AE10#..JPP |
3 | ||
| 44545-12020 |
AE10#..JPP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AE10#..JPP |
3 | ||
| 44545-12020 |
AE10#..JPP |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
AE10#..JPP |
3 | ||
| 44545-12020 |
AE10#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#..JPP |
3 | ||
| 44546-12090 |
AE10#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#..JPP |
3 | ||
| 44546-12090 |
AE10#..JPP |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12010 |
AE10#..JPP |
3 | ||
| 44546-12090 |
AE10#..JPP |
3 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-12040 |
AE10#..JPP |
1 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90904-12006 |
AE10#..JPP |
1 | ||
| 90412-10197 |
AE10#..JPP |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-12030 |
AE10#..JPP |
1 | ||
| 44591-12031 |
AE10#..JPP |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-12020 |
AE10#..JPP |
1 | ||
| 44594-12010 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90109-10155 | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 91612-60816 | ||||
| 91612-60835 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
