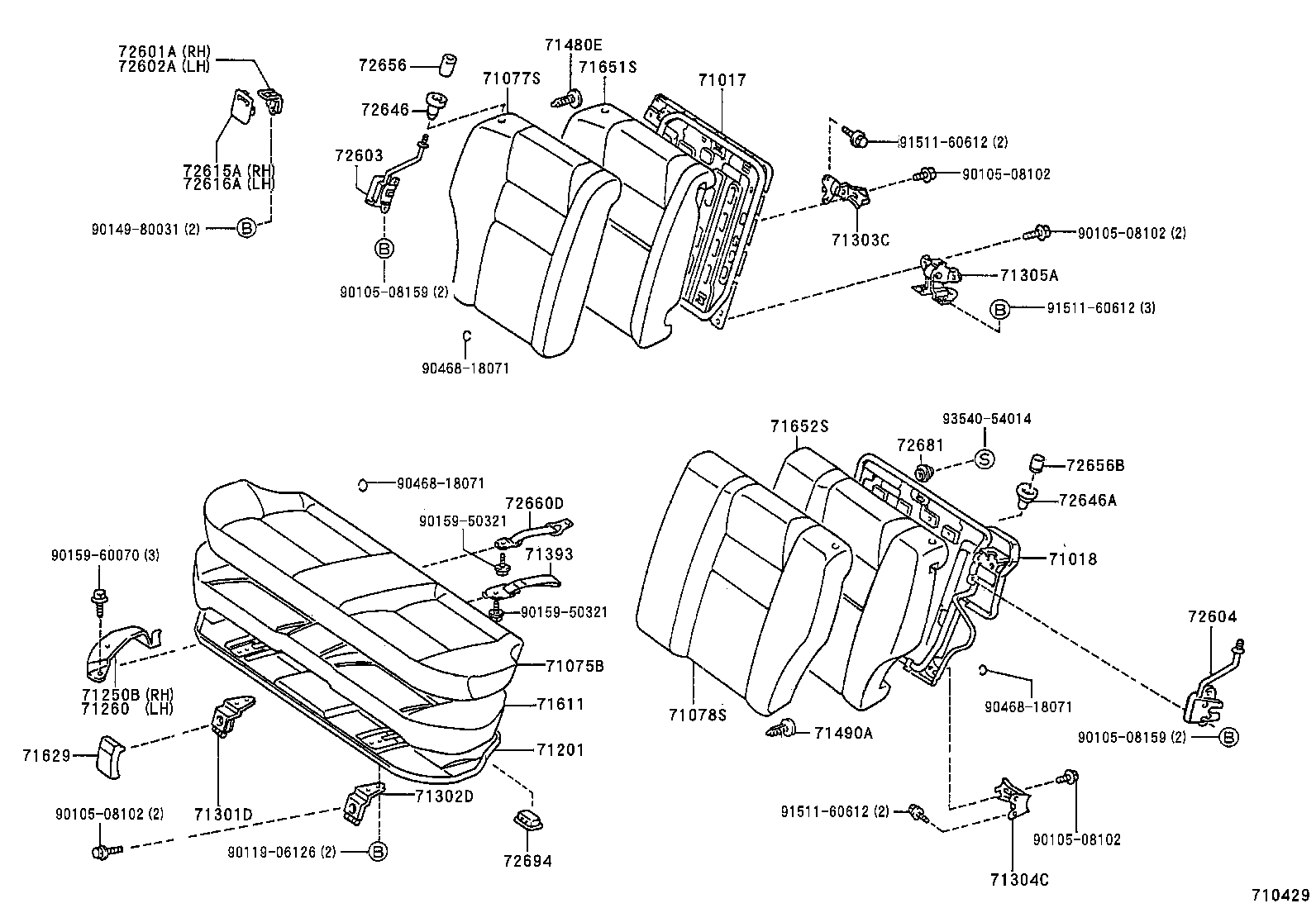

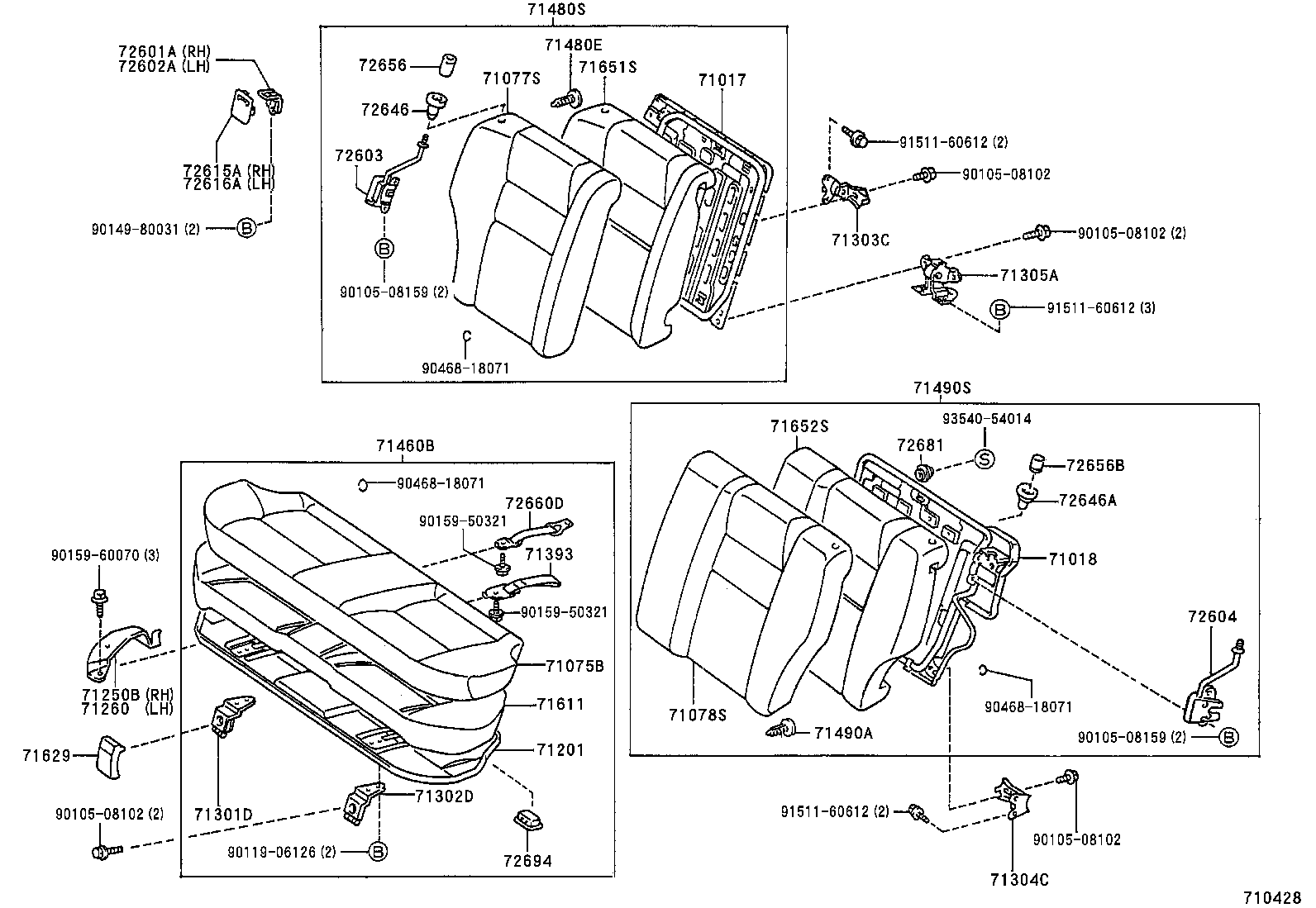

AE102L-AWMNKK (1992)
Toyota Corolla Jpp
(9206-9608)JPP..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1E080J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71075-13470K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71065-1E081J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13520J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71075-13520B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71075-13521J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71065-1E081K3 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-13521B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-13180 |
AE102..JPP..WG |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||
(9608- )JPP..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1E080J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71075-13470K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71065-1E081J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13520J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71075-13520B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71075-13521J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71065-1E081K3 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-13521B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-13661E0 |
AE102..JPP..WG ***,OAK,TRIM4# |
1 | ||
| 71460-13661B0 |
AE102..JPP..WG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-13661J0 |
AE102..JPP..WG ***,DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-13180 |
AE102..JPP..WG |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||
(9608- )JPP..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-13170 |
AE102..JPP..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-13030 |
AE102..JPP..WG |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1E080J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71075-13470K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71065-1E081J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13520J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71075-13520B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71075-13521J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71065-1E081K3 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-13521B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-13530K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71077-13530B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K770J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-13530J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-13620J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-13620B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-13621B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K770B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-13531K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71077-1K770K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71077-13621J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-13533K2 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71077-1K771J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-1K771K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71077-1K771B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-13623B2 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K771J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-1K771K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71077-13533E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71077-13623J2 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-1K771B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-13150J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-1E060J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-1E060K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71078-13150B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E060B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-13170B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-13171B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-13170J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-1E061J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-13150K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71078-13151K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71078-13171J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-1E061B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E061K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71078-1E061K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71078-1E061J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-13153K2 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71078-13173J2 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-13153E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71078-13173B2 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E061B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-13150 |
AE102..JPP..WG |
1 | ||
| 71250B - BRACKET ASSY, SEAT, OUTER RH | ||||
| 71250-13010 |
AE102..JPP..WG |
1 | ||
| 71260 - BRACKET ASSY, SEAT, OUTER LH | ||||
| 71260-13010 |
AE102..JPP..WG |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-13070 |
AE102..JPP..WG |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-13030 |
AE102..JPP..WG |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12110 |
AE102..JPP..WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-12110 |
AE102..JPP..WG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 71305-12110 |
AE10#..JPP..N |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-13080B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1#,8# |
1 | ||
| 71393-13080K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71393-13080E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-13661E0 |
AE102..JPP..WG ***,OAK,TRIM4# |
1 | ||
| 71460-13661B0 |
AE102..JPP..WG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-13661J0 |
AE102..JPP..WG ***,DARK BLUE,TRIM8# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-0704901 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-07042J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
3 | ||
| 90467-07042K0 |
AE102..JPP..WG TAUPE,TRIM9# |
3 | ||
| 90467-07042B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
3 | ||
| 90467-07135 |
AE102..JPP..WG |
1 | ||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
3 | ||
| 90467-07042E1 |
AE102..JPP..WG OAK,TRIM4# |
3 | ||
| 90467-0704213 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
3 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-13773E0 |
AE102..JPP..WG ***,OAK,TRIM4# |
1 | ||
| 71480-13773J0 |
AE102..JPP..WG ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-13773B0 |
AE102..JPP..WG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
5 | ||
| 90467-07042K0 |
AE102..JPP..WG TAUPE,TRIM9# |
4 | ||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-0704901 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
5 | ||
| 90467-07135 |
AE102..JPP..WG |
1 | ||
| 90467-0704213 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07042E1 |
AE102..JPP..WG OAK,TRIM4# |
4 | ||
| 90467-07042J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
4 | ||
| 90467-07042B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
4 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-13133E0 |
AE102..JPP..WG ***,OAK,TRIM4# |
1 | ||
| 71490-13133B0 |
AE102..JPP..WG ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71490-13133J0 |
AE102..JPP..WG ***,DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-13180 |
AE102..JPP..WG |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13010J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
2 | ||
| 71629-13010B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
2 | ||
| 71629-13010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13161 |
AE102..JPP..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13081 |
AE102..JPP..WG |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-13080 |
AE102..JPP..WG |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-13080 |
AE102..JPP..WG |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-13120 |
AE102..JPP..WG |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-13120 |
AE102..JPP..WG |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-13020P0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72615-13020K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72615-13020W3 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-13020P0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72615-13020K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
1 | ||
| 72615-13020W3 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-13010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72646-13010J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-13010B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72646-13010E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-13010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72646-13010B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72646-13010E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72646-13010J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72661-13030K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72661-13030E1 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72661-13030B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72661-13030B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72661-13030K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72661-13030E1 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-13010 |
AE102..JPP..WG |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-16010B2 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72681-16010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72681-16010W3 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72681-16010E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-13010 |
AE102..JPP..WG |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06126 | ||||
| 90149-80031 | ||||
| 90159-50321 | ||||
| 90159-60070 | ||||
| 90468-18071 | ||||
| 91511-60612 | ||||
| 93540-54014 | ||||
(9206-9608)JPP..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-13170 |
AE102..JPP..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-13030 |
AE102..JPP..WG |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1E080J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13470J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E080K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71075-13470K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71065-1E081J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13520J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71075-13520B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71075-13521J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71065-1E081B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71065-1E081K3 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71065-1E081J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-13521B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71075-13471E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-13530K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71077-13530B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K770J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-13530J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-13620J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-13620B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-13621B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K770B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-13531K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71077-1K770K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71077-13621J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-13533K2 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71077-1K771J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-1K771K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71077-1K771B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-13623B2 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1K771J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-1K771K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71077-13533E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71077-13623J2 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71077-1K771B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-13150J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-1E060J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-1E060K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71078-13150B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E060B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-13170B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-13171B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-13170J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-1E061J1 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-13150K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71078-13151K1 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71078-13171J1 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-1E061B1 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E061K1 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71078-1E061K2 |
AE102..JPP..E;AE102..JPP..SED..CND TAUPE,TRIM9# |
1 | ||
| 71078-1E061J2 |
AE102..JPP..E;AE102..JPP..SED..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-13153K2 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71078-13173J2 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 71078-13153E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71078-13173B2 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1E061B2 |
AE102..JPP..E;AE102..JPP..SED..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71201 - PANEL SUB-ASSY, REAR SEAT CUSHION | ||||
| 71201-13150 |
AE102..JPP..WG |
1 | ||
| 71250B - BRACKET ASSY, SEAT, OUTER RH | ||||
| 71250-13010 |
AE102..JPP..WG |
1 | ||
| 71260 - BRACKET ASSY, SEAT, OUTER LH | ||||
| 71260-13010 |
AE102..JPP..WG |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-13070 |
AE102..JPP..WG |
1 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-13030 |
AE102..JPP..WG |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12110 |
AE102..JPP..WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-12110 |
AE102..JPP..WG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 71305-12110 |
AE10#..JPP..N |
1 | ||
| 71393 - BAND, REAR SEAT CUSHION | ||||
| 71393-13080B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1#,8# |
1 | ||
| 71393-13080K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 71393-13080E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-0704901 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-07042J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
3 | ||
| 90467-07042K0 |
AE102..JPP..WG TAUPE,TRIM9# |
3 | ||
| 90467-07042B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
3 | ||
| 90467-07135 |
AE102..JPP..WG |
1 | ||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
3 | ||
| 90467-07042E1 |
AE102..JPP..WG OAK,TRIM4# |
3 | ||
| 90467-0704213 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
3 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
5 | ||
| 90467-07042K0 |
AE102..JPP..WG TAUPE,TRIM9# |
4 | ||
| 90467-07049C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-0704901 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
5 | ||
| 90467-07135 |
AE102..JPP..WG |
1 | ||
| 90467-0704213 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07042E1 |
AE102..JPP..WG OAK,TRIM4# |
4 | ||
| 90467-07042J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
4 | ||
| 90467-07042B1 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
4 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-13180 |
AE102..JPP..WG |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-13010J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
2 | ||
| 71629-13010B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
2 | ||
| 71629-13010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-13161 |
AE102..JPP..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-13081 |
AE102..JPP..WG |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-13080 |
AE102..JPP..WG |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-13080 |
AE102..JPP..WG |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-13120 |
AE102..JPP..WG |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-13120 |
AE102..JPP..WG |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-13020P0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72615-13020K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72615-13020W3 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-13020P0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72615-13020K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,8#,9# |
1 | ||
| 72615-13020W3 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72615-13020C0 |
AE102..JPP..WG BLACK,TRIM1#,4#,8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-13010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72646-13010J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-13010B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72646-13010E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-13010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72646-13010B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72646-13010E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72646-13010J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72661-13030K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72661-13030E1 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72661-13030B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-13030J0 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72661-13030B0 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72661-13030K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72661-13030E1 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-13010 |
AE102..JPP..WG |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-16010B2 |
AE102..JPP..WG SHADOW GRAY,TRIM1# |
1 | ||
| 72681-16010K0 |
AE102..JPP..WG TAUPE,TRIM9# |
1 | ||
| 72681-16010W3 |
AE102..JPP..WG DARK BLUE,TRIM8# |
1 | ||
| 72681-16010E0 |
AE102..JPP..WG OAK,TRIM4# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-13010 |
AE102..JPP..WG |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06126 | ||||
| 90149-80031 | ||||
| 90159-50321 | ||||
| 90159-60070 | ||||
| 90468-18071 | ||||
| 91511-60612 | ||||
| 93540-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
