AE102L-AWMNKA (1992)
Toyota Corolla Jpp
(9206- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-12120B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55539-12120K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55539-12120J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002003 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 55539-20020K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 55539-20020W3 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-12111P0 |
AE10#..JPP..5F SHADOW GRAY,TRIM1# |
1 | ||
| 58808-12111K0 |
AE10#..JPP..5F TAUPE,TRIM9# |
1 | ||
| 58808-12112K0 |
AE10#..JPP..5F TAUPE,TRIM9# |
1 | ||
| 58808-12111W3 |
AE10#..JPP..5F DARK BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-12280K0 |
AE102..JPP..WG TAUPE,TRIM9#,(J) |
1 | ||
| 58901-12280K0 |
AE10#..JPP TAUPE,TRIM9#,(J) |
1 | ||
| 58901-12280B0 |
AE102..JPP..WG;AE10#..JPP..(D,E);AE102..JPP..SED..CND SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 58901-02020K0 |
AE10#..JPP TAUPE,TRIM9#,(L) |
1 | ||
| 58901-02020K0 |
AE101..JPP;AE102..JPP..WG;AE102..JPP..SED..N..USA TAUPE,TRIM9#,(L) |
1 | ||
| 58901-12280J0 |
AE10#..JPP DARK BLUE,TRIM8#,(J) |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-12050 |
AE10#..JPP |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-12080 |
AE10#..JPP..5F |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-12101 |
AE10#..JPP |
1 | ||
| 58996-12100 |
AE10#..JPP |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-12060 |
AE10#..JPP |
1 | ||
| 58997-12070 |
AE10#..JPP |
1 | ||
| Common parts | ||||
| 90119-06578 | ||||
| 90149-80023 | ||||
| 90168-50057 | ||||
| 90467-10130 | ||||
| 93568-15012 | ||||
| 93568-55014 | ||||

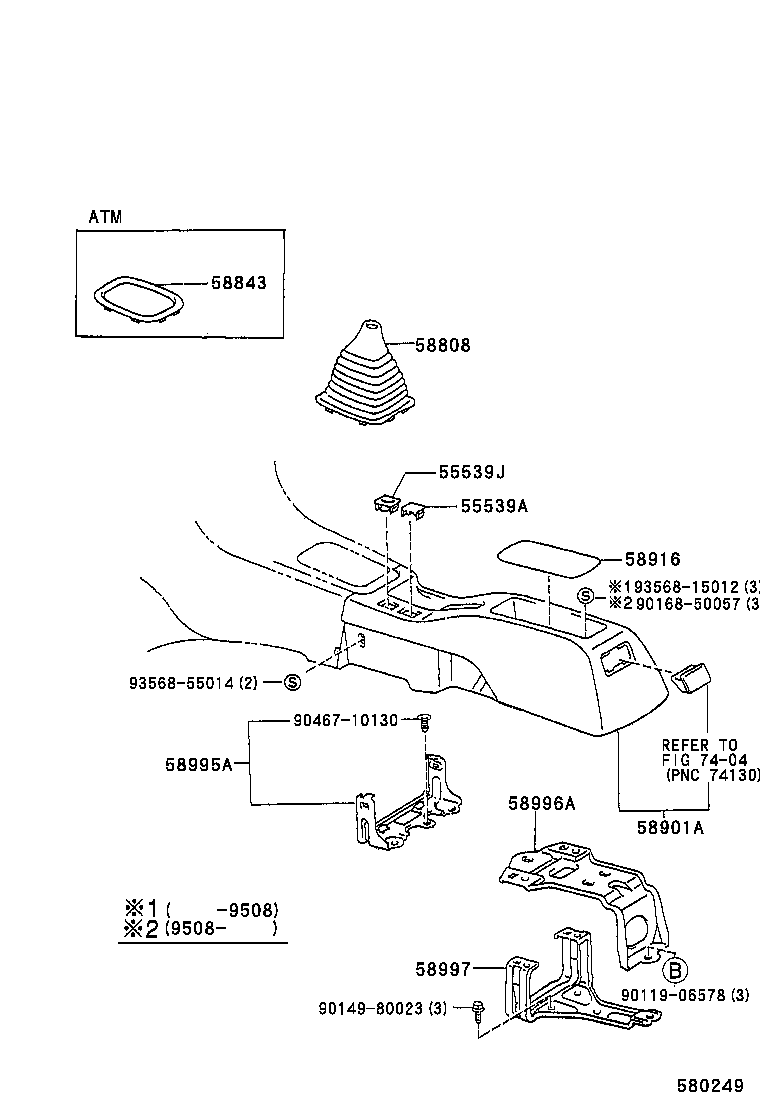

| Linked diagrams | ||||
| 7404 | ||||
