AE102L-AEPNKA (1992)

Toyota Corolla Jpp

Production Jun 1992 - Aug 1996
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP

Click highlighted areas on diagram

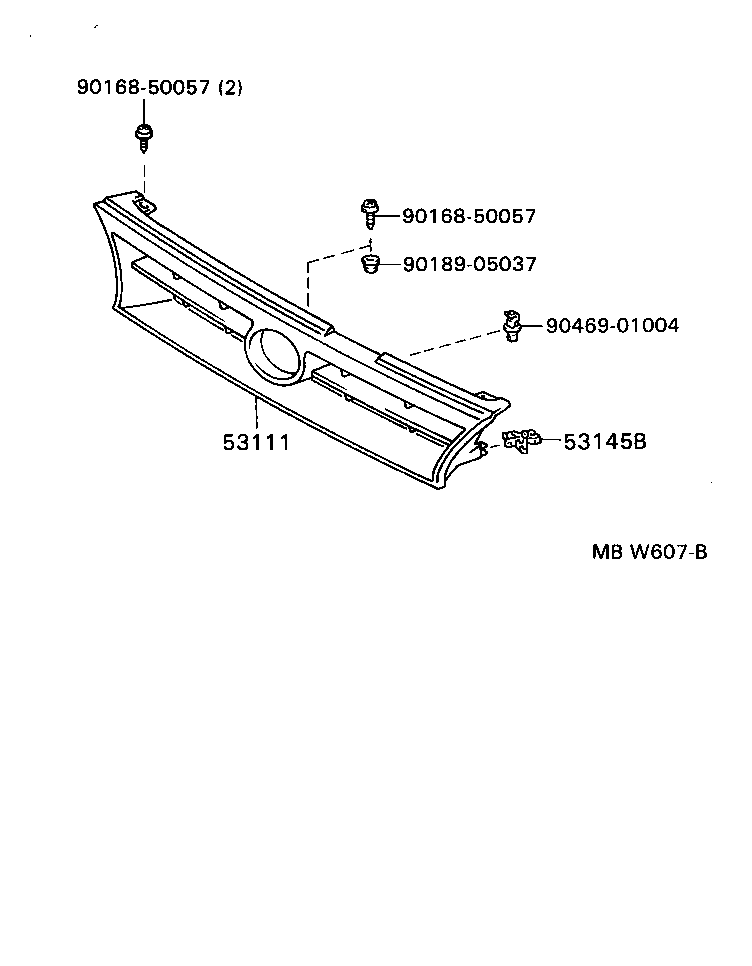

diagram 53111 53145B 9016850057 9016850057 9018905037 9046901004
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-1A130D0

AE10#..JPP

SUPER RED 2,3E5

 1
53101-1A130G1

AE10#..JPP

MD.GRAISH GREEN GR,6N1

 1
53101-1A010

AE10#..JPP

 1
53101-1A130J0

AE10#..JPP

LT.PURPLISH BLUE M.,8K1

 1
53101-1A130E0

AE10#..JPP

BEIGE ME,4M9

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-12010

AE10#..JPP

 2
Common parts
90168-50057
90189-05037
90469-01004
