AE102L-AEPNKA (1992)

Toyota Corolla Jpp

Production Jun 1992 - Aug 1996
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP

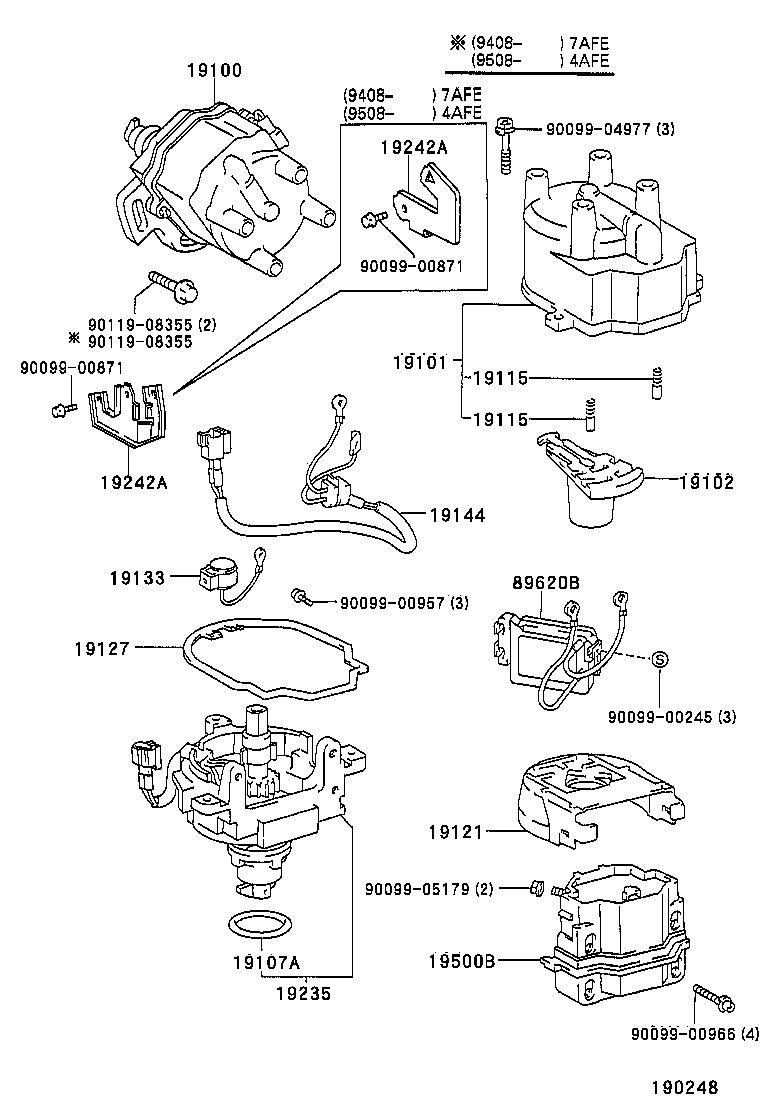

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19115 19121 19127 19133 19144 19235 19242A 19242A 19500B 89620B 9009900245 9009900871 9009900871 9009900957 9009900966 9009904977 9009905179 9011908355 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19050-16030

7AFE..AE102..JPP

 1
19020-16280

7AFE..AE102..JPP

 1
19050-16030

4AFE,7AFE..AE10#..JPP

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11060

4AFE,7AFE..AE10#..JPP

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16010

4AFE,7AFE..AE10#..JPP

 1
19102-11031

4AFE,7AFE..AE10#..JPP

 1
19102-16010

7AFE..AE102..JPP

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14127

4AFE,7AFE..AE10#..JPP

 1
90099-14091

4AFE,7AFE..AE10#..JPP

 1
90099-14127

7AFE..AE102..JPP

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4AFE,7AFE..AE10#..JPP

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4AFE,7AFE..AE10#..JPP

 2
19121 - COVER, DUST PROOF
19121-11080

4AFE,7AFE..AE10#..JPP

 1
19127 - PACKING, DUST PROOF
19127-15120

4AFE,7AFE..AE10#..JPP

 1
19133 - CONDENSER, DISTRIBUTOR
19133-16240

4AFE,7AFE..AE10#..JPP

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-16020

4AFE,7AFE..AE10#..JPP

 1
19235 - HOUSING, DISTRIBUTOR
19235-16190

7AFE..AE102..JPP

 1
19235-16190

4AFE,7AFE..AE10#..JPP

 1
19235-16270

4AFE,7AFE..AE10#..JPP

 1
19242A - CLAMP, CORD, NO.2
19242-16020

7AFE..AE102..JPP

 1
19242-16020

4AFE,7AFE..AE10#..JPP

 1
19242-15180

4AFE,7AFE..AE10#..JPP

 1
19242A - CLAMP, CORD, NO.2
19242-16020

7AFE..AE102..JPP

 1
19242-16020

4AFE,7AFE..AE10#..JPP

 1
19242-15180

4AFE,7AFE..AE10#..JPP

 1
19500B - COIL ASSY, IGNITION
90919-02163

7AFE..AE102..JPP

 1
90919-02164

4AFE,7AFE..AE10#..JPP

 1
90919-02163

4AFE,7AFE..AE10#..JPP

 1
89620B - IGNITER ASSY
89620-12440

AE10#..JPP

 1
Common parts
90099-00245
90099-00871
90099-00957
90099-00966
90099-04977
90099-05179
90119-08355
