AE102L-AEMNKA (1992)
Toyota Corolla Jpp
Production
Jun 1992
-
Aug 1996
Engine
7AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9206- )JPP..SED

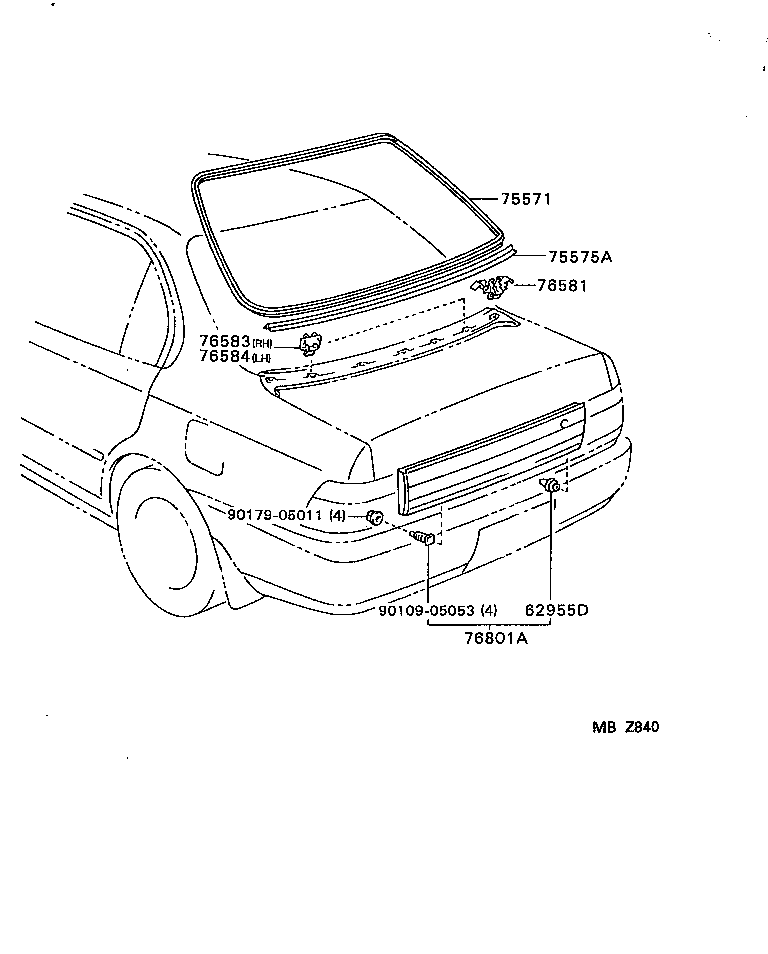

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62955D - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH | ||||
| 62955-12040 |
AE10#..JPP..SED |
6 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-12570 |
AE10#..JPP..SED |
1 | ||
| 75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-12360 |
AE10#..JPP..SED |
1 | ||
| 76581 - RETAINER, BACK WINDOW OUTSIDE MOULDING | ||||
| 76581-12080 |
AE10#..JPP..SED |
5 | ||
| 76581-12080 |
AE10#..JPP..SED |
5 | ||
| 76583 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH | ||||
| 76583-12080 |
AE10#..JPP..SED |
1 | ||
| 76583-12080 |
AE10#..JPP..SED |
1 | ||
| 76584 - RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, LH | ||||
| 76584-12050 |
AE10#..JPP..SED |
1 | ||
| 76584-12050 |
AE10#..JPP..SED |
1 | ||
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-12420 |
AE101..JPP;AE102..JPP..SED..N..USA TYPE A |
1 | ||
| 76801-12420 |
AE101..JPP;AE102..JPP..SED..N..USA |
1 | ||
| 76801-12370 |
AE102..JPP..E;AE102..JPP..SED..CND |
1 | ||
| 76801-02070 |
AE10#..JPP..SED..N |
1 | ||
| Common parts | ||||
| 90109-05053 | ||||
| 90179-05011 | ||||
