AE102L-AEMNKA (1992)
Toyota Corolla Jpp

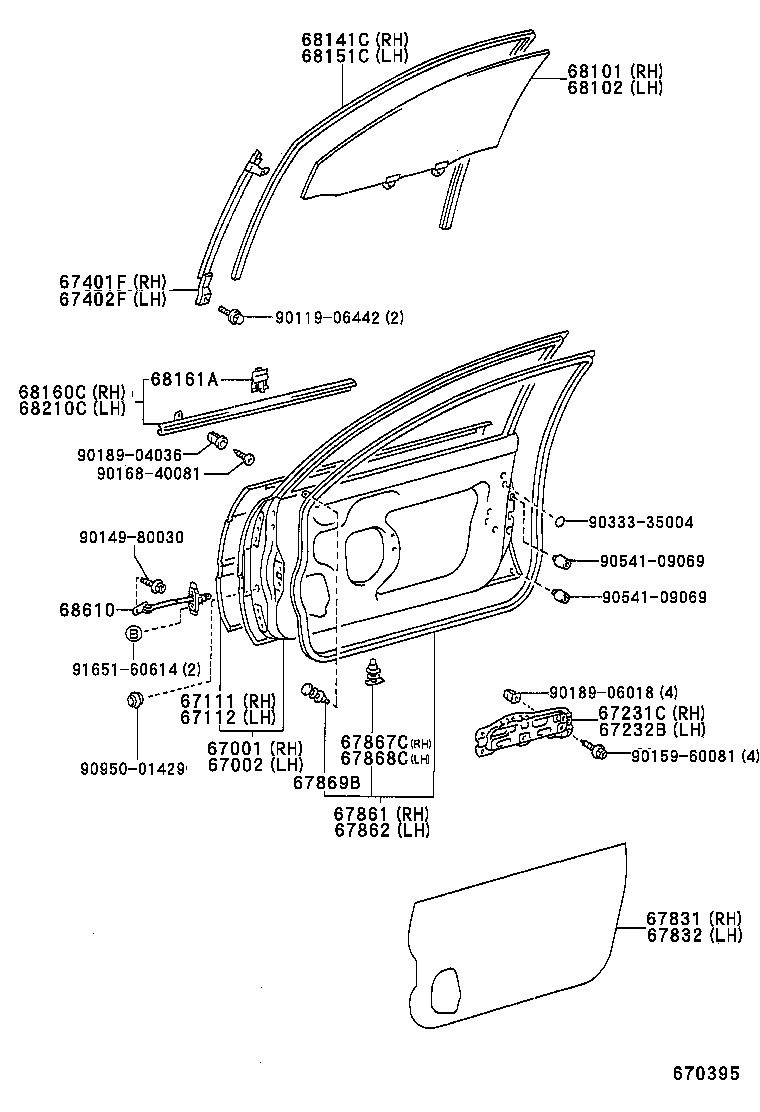

ILLUST NO. 1 OF 2(9206- )AE101..JPP ; (9206- )AE102..JPP..CND ; (9206- )AE102..JPP..SED..US
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-12241 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA |
1 | ||
| 67491-12241 |
AE10#..JPP..N |
1 | ||
| 67491-12231 |
AE102..JPP..SED W(ELECTRICAL REMOTE CONTROL DOOR MIRROR) |
1 | ||
| 67491-12231 |
AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-12231 |
AE102..JPP..SED..CND;AE10#..JPP..(D,E)..USA |
1 | ||
| 67492-12241 |
AE10#..JPP..N |
1 | ||
| 67492-12241 |
AE102..JPP..WG;AE101..JPP..CND;AE102..JPP..SED..N..USA |
1 | ||
| 67492-12231 |
AE102..JPP..SED W(ELECTRICAL REMOTE CONTROL DOOR MIRROR) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-30070 |
AE10#..JPP |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E330B2 |
AE102..JPP..SED..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E330J1 |
AE102..JPP..SED..N..USA W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67650-1E330K0 |
AE102..JPP..SED..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-1H880B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E340K1 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67650-1E230B1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H880K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67650-1E230J1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67650-1E230K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67650-1E340B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H880J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340J2 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340B2 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H160K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67650-1H150B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E340K2 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67650-1H150K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67650-1H160J0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67650-1H160B0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H150J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E330B2 |
AE102..JPP..SED..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E330J1 |
AE102..JPP..SED..N..USA W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67650-1E330K0 |
AE102..JPP..SED..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-1H880B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E340K1 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67650-1E230B1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H880K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67650-1E230J1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67650-1E230K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67650-1E340B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H880J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340J2 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340B2 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H160K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67650-1H150B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E340K2 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67650-1H150K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67650-1H160J0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67650-1H160B0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H150J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1E330B2 |
AE102..JPP..SED..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E330J1 |
AE102..JPP..SED..N..USA W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67650-1E330K0 |
AE102..JPP..SED..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-1H880B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E340K1 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67650-1E230B1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H880K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67650-1E230J1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67650-1E230K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67650-1E340B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-1H880J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340J2 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67650-1E340B2 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H160K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67650-1H150B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1E340K2 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67650-1H150K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67650-1H160J0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67650-1H160B0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67650-1H150J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12070 |
AE10#..JPP WHITE |
6 | ||
| 67771-13030 |
AE102..JPP..E;AE102..JPP..WG;AE102..JPP..SED..CND BROWN |
6 | ||
| 67771-13030 |
AE10#..JPP..(D,N) PLANT NO. K21 |
6 | ||
| 67771-13030 |
AE101..JPP..USA;AE10#..JPP..SED..N PLANT NO. K21 |
6 | ||
| 67771-16170 |
AE102..JPP..E;AE102..JPP..SED..CND SABLE,PLANT K21 |
6 | ||
| 67771-16170 |
AE10#..JPP..(D,N) SABLE,PLANT A31,A32 |
6 | ||
| 90467-08179 |
AE10#..JPP YELLOW |
5 | ||
| 67771-13030 |
AE10#..JPP..SED..(D,N) PLANT NO. K21 |
6 | ||
| 90467-08179 |
AE102..JPP..E SABLE,PLANT A31,A32 |
5 | ||
| 67771-12030 |
AE10#..JPP YELLOWISH GREEN |
4 | ||
| 67771-16170 |
AE10#..JPP..SED..(D,N) SABLE,PLANT A31,A32 |
6 | ||
| 67771-12070 |
AE101..JPP..D..CND;AE102..JPP..SED..N..USA NATURAL |
6 | ||
| 90467-08179 |
AE10#..JPP..(D,N) YELLOW |
5 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12070 |
AE10#..JPP WHITE |
6 | ||
| 67771-13030 |
AE102..JPP..E;AE102..JPP..WG;AE102..JPP..SED..CND BROWN |
6 | ||
| 67771-13030 |
AE10#..JPP..(D,N) PLANT NO. K21 |
6 | ||
| 67771-13030 |
AE101..JPP..USA;AE10#..JPP..SED..N PLANT NO. K21 |
6 | ||
| 67771-16170 |
AE102..JPP..E;AE102..JPP..SED..CND SABLE,PLANT K21 |
6 | ||
| 67771-16170 |
AE10#..JPP..(D,N) SABLE,PLANT A31,A32 |
6 | ||
| 90467-08179 |
AE10#..JPP YELLOW |
5 | ||
| 67771-13030 |
AE10#..JPP..SED..(D,N) PLANT NO. K21 |
6 | ||
| 90467-08179 |
AE102..JPP..E SABLE,PLANT A31,A32 |
5 | ||
| 67771-12030 |
AE10#..JPP YELLOWISH GREEN |
4 | ||
| 67771-16170 |
AE10#..JPP..SED..(D,N) SABLE,PLANT A31,A32 |
6 | ||
| 67771-12070 |
AE101..JPP..D..CND;AE102..JPP..SED..N..USA NATURAL |
6 | ||
| 90467-08179 |
AE10#..JPP..(D,N) YELLOW |
5 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12070 |
AE10#..JPP WHITE |
6 | ||
| 67771-13030 |
AE102..JPP..E;AE102..JPP..WG;AE102..JPP..SED..CND BROWN |
6 | ||
| 67771-13030 |
AE10#..JPP..(D,N) PLANT NO. K21 |
6 | ||
| 67771-13030 |
AE101..JPP..USA;AE10#..JPP..SED..N PLANT NO. K21 |
6 | ||
| 67771-16170 |
AE102..JPP..E;AE102..JPP..SED..CND SABLE,PLANT K21 |
6 | ||
| 67771-16170 |
AE10#..JPP..(D,N) SABLE,PLANT A31,A32 |
6 | ||
| 90467-08179 |
AE10#..JPP YELLOW |
5 | ||
| 67771-13030 |
AE10#..JPP..SED..(D,N) PLANT NO. K21 |
6 | ||
| 90467-08179 |
AE102..JPP..E SABLE,PLANT A31,A32 |
5 | ||
| 67771-12030 |
AE10#..JPP YELLOWISH GREEN |
4 | ||
| 67771-16170 |
AE10#..JPP..SED..(D,N) SABLE,PLANT A31,A32 |
6 | ||
| 67771-12070 |
AE101..JPP..D..CND;AE102..JPP..SED..N..USA NATURAL |
6 | ||
| 90467-08179 |
AE10#..JPP..(D,N) YELLOW |
5 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L130B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L130K1 |
AE102..JPP..E TAUPE,TRIM1# |
1 | ||
| 67620-1L470B1 |
AE102..JPP..SED..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L470K0 |
AE102..JPP..SED..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-1L470J1 |
AE102..JPP..SED..N..USA W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-1L120J1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-1L130J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L120B1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L120K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-1L131J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N010B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N010K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-1N010J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131K1 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67620-1L131B2 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L131J2 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131K2 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67620-1N160J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-1N160K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-1N160B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N170B0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N170J0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-1N170K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L130B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L130K1 |
AE102..JPP..E TAUPE,TRIM1# |
1 | ||
| 67620-1L470B1 |
AE102..JPP..SED..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L470K0 |
AE102..JPP..SED..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-1L470J1 |
AE102..JPP..SED..N..USA W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-1L120J1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-1L130J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L120B1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L120K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-1L131J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N010B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N010K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-1N010J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131K1 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67620-1L131B2 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L131J2 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131K2 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67620-1N160J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-1N160K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-1N160B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N170B0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N170J0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-1N170K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1L130B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L130K1 |
AE102..JPP..E TAUPE,TRIM1# |
1 | ||
| 67620-1L470B1 |
AE102..JPP..SED..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L470K0 |
AE102..JPP..SED..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-1L470J1 |
AE102..JPP..SED..N..USA W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67620-1L120J1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-1L130J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L120B1 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L120K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-1L131J1 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131B1 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N010B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N010K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-1N010J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131K1 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67620-1L131B2 |
AE102..JPP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1L131J2 |
AE102..JPP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-1L131K2 |
AE102..JPP..E TAUPE,TRIM9# |
1 | ||
| 67620-1N160J0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-1N160K0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-1N160B0 |
AE101..JPP..CND;AE102..JPP..SED..N..USA W(*PW) OR W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N170B0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-1N170J0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-1N170K0 |
AE101..JPP..CND;AE102..JPP..WG..CND;AE102..JPP..SED..N..USA TAUPE,TRIM9# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 90467-08179 |
AE102..JPP..E;AE102..JPP..SED..CND PLANT NO. A31-A32 |
5 | ||
| 67771-13030 |
AE10#..JPP..SED..(D,N) PLANT NO. K21 |
6 | ||
| 90467-08179 |
AE10#..JPP YELLOW |
5 | ||
| 67771-13030 |
AE10#..JPP..(D,N) PLANT NO. K21 |
6 | ||
| 67771-16170 |
AE102..JPP..E;AE102..JPP..SED..CND SABLE,PLANT K21 |
6 | ||
| 67771-12070 |
AE10#..JPP WHITE |
6 | ||
| 67771-16170 |
AE10#..JPP SABLE,PLANT A31,A32 |
6 | ||
| 67771-12070 |
AE101..JPP..D..CND;AE102..JPP..SED..N..USA NATURAL |
6 | ||
| 67771-12030 |
AE10#..JPP YELLOWISH GREEN |
4 | ||
| 67771-16170 |
AE10#..JPP..SED SABLE,PLANT A31,A32 |
6 | ||
| 90467-08179 |
AE10#..JPP..(D,N) YELLOW |
5 | ||
| 67771-13030 |
AE102..JPP..E;AE102..JPP..WG;AE102..JPP..SED..CND BROWN |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 90467-08179 |
AE102..JPP..E;AE102..JPP..SED..CND PLANT NO. A31-A32 |
5 | ||
| 67771-13030 |
AE10#..JPP..SED..(D,N) PLANT NO. K21 |
6 | ||
| 90467-08179 |
AE10#..JPP YELLOW |
5 | ||
| 67771-13030 |
AE10#..JPP..(D,N) PLANT NO. K21 |
6 | ||
| 67771-16170 |
AE102..JPP..E;AE102..JPP..SED..CND SABLE,PLANT K21 |
6 | ||
| 67771-12070 |
AE10#..JPP WHITE |
6 | ||
| 67771-16170 |
AE10#..JPP SABLE,PLANT A31,A32 |
6 | ||
| 67771-12070 |
AE101..JPP..D..CND;AE102..JPP..SED..N..USA NATURAL |
6 | ||
| 67771-12030 |
AE10#..JPP YELLOWISH GREEN |
4 | ||
| 67771-16170 |
AE10#..JPP..SED SABLE,PLANT A31,A32 |
6 | ||
| 90467-08179 |
AE10#..JPP..(D,N) YELLOW |
5 | ||
| 67771-13030 |
AE102..JPP..E;AE102..JPP..WG;AE102..JPP..SED..CND BROWN |
6 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 90467-08179 |
AE102..JPP..E;AE102..JPP..SED..CND PLANT NO. A31-A32 |
5 | ||
| 67771-13030 |
AE10#..JPP..SED..(D,N) PLANT NO. K21 |
6 | ||
| 90467-08179 |
AE10#..JPP YELLOW |
5 | ||
| 67771-13030 |
AE10#..JPP..(D,N) PLANT NO. K21 |
6 | ||
| 67771-16170 |
AE102..JPP..E;AE102..JPP..SED..CND SABLE,PLANT K21 |
6 | ||
| 67771-12070 |
AE10#..JPP WHITE |
6 | ||
| 67771-16170 |
AE10#..JPP SABLE,PLANT A31,A32 |
6 | ||
| 67771-12070 |
AE101..JPP..D..CND;AE102..JPP..SED..N..USA NATURAL |
6 | ||
| 67771-12030 |
AE10#..JPP YELLOWISH GREEN |
4 | ||
| 67771-16170 |
AE10#..JPP..SED SABLE,PLANT A31,A32 |
6 | ||
| 90467-08179 |
AE10#..JPP..(D,N) YELLOW |
5 | ||
| 67771-13030 |
AE102..JPP..E;AE102..JPP..WG;AE102..JPP..SED..CND BROWN |
6 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..JPP |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..JPP |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..JPP |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
AE10#..JPP |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
AE10#..JPP |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-12050 |
AE10#..JPP |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 69751-12050B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-12050K0 |
AE10#..JPP TAUPE,TRIM9# |
1 | ||
| 69751-12050B0 |
AE10#..JPP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#..JPP DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90080-16018 | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9206- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A530 |
AE10#..JPP..N |
1 | ||
| 67001-1A530 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A510 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 67002-1A510 |
AE10#..JPP..N |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12610 |
AE10#..JPP..N |
1 | ||
| 67111-12610 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12460 |
AE102..JPP;AE101..JPP..CND |
1 | ||
| 67112-12460 |
AE10#..JPP..N |
1 | ||
| 67231C - SUPPORT, DOOR TRIM, RH | ||||
| 67231-12010 |
AE10#..JPP |
1 | ||
| 67232B - SUPPORT, DOOR TRIM, LH | ||||
| 67232-12010 |
AE10#..JPP |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12320 |
AE10#..JPP |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12340 |
AE10#..JPP |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12480 |
AE10#..JPP W(SPEAKER) |
1 | ||
| 67831-12470 |
AE10#..JPP |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12280 |
AE10#..JPP W(SPEAKER) |
1 | ||
| 67832-12270 |
AE10#..JPP |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12820 |
AE10#..JPP |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12780 |
AE10#..JPP |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
AE10#..JPP YELLOW OR RED |
16 | ||
| 67868-20140 |
AE10#..JPP PURPLE |
16 | ||
| 67867-12150 |
AE10#..JPP |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
AE10#..JPP YELLOW OR RED |
16 | ||
| 67868-20150 |
AE10#..JPP GREEN |
16 | ||
| 67867-12150 |
AE10#..JPP |
16 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AE10#..JPP |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-12800 |
AE10#..JPP *TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-12800 |
AE10#..JPP *TT,T=3.5 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12330 |
AE10#..JPP |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12050 |
AE10#..JPP |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12080 |
AE10#..JPP RH |
1 | ||
| 68620-12010 |
AE10#..JPP LH |
1 | ||
| 68610-12081 |
AE10#..JPP RH |
1 | ||
| 68620-12011 |
AE10#..JPP LH |
1 | ||
| Common parts | ||||
| 90119-06442 | ||||
| 90149-80030 | ||||
| 90159-60081 | ||||
| 90168-40081 | ||||
| 90189-04036 | ||||
| 90189-06018 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 90950-01429 | ||||
| 91651-60614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
