AE101L-AEMDKA (1992)

Toyota Corolla Jpp

Production Jun 1992 - Aug 1996
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP

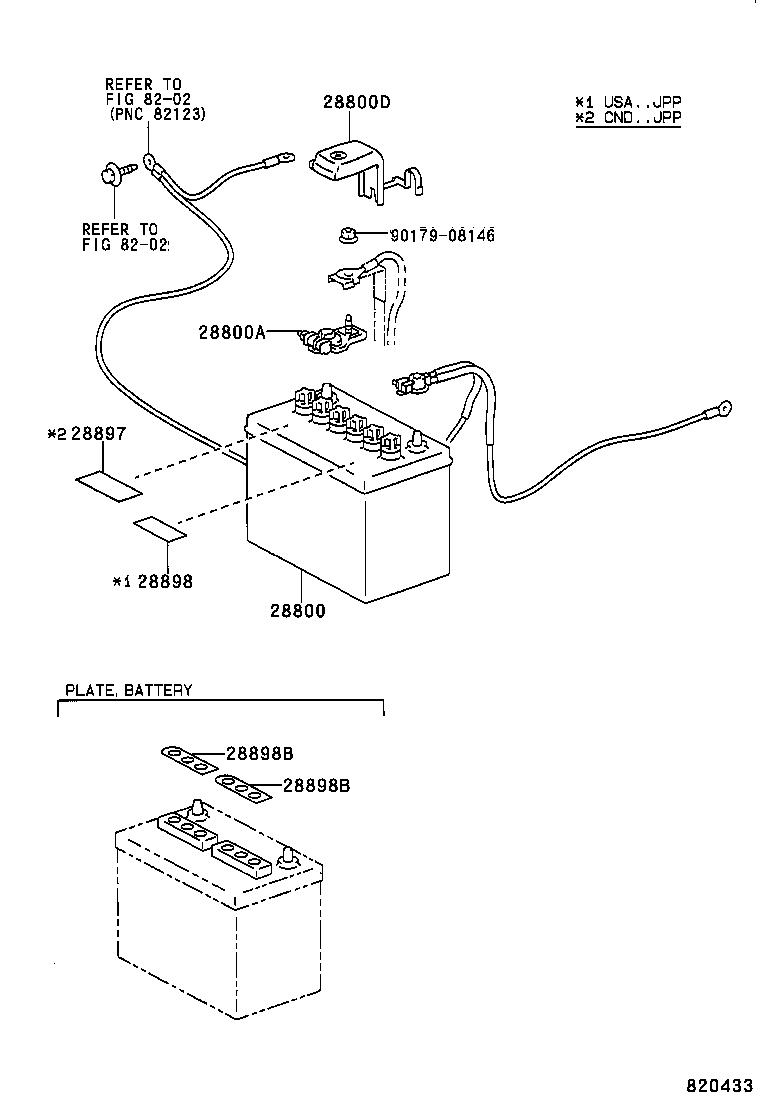

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28897 28898 28898B 28898B 8202 8202 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-15140

4AFE,7AFE..AE10#..JPP..USA

50D20L

 1
28800-70060

4AFE,7AFE..AE10#..JPP..USA

50D20L

 1
28800-42030

4AFE,7AFE..AE10#..JPP

55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

4AFE,7AFE..AE10#..JPP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12290

4AFE,7AFE..AE10#..JPP

 1
28898 - PLATE, BATTERY
28898-26010

4AFE,7AFE..AE10#..JPP..USA

 1
28898B - PLATE, BATTERY
28898-11010

4AFE,7AFE..AE10#..JPP..(D,N)..USA

 2
28898-11020

4AFE,7AFE..AE10#..JPP..(D,N)..USA

BATTERY=55D23L

 2
28898B - PLATE, BATTERY
28898-11010

4AFE,7AFE..AE10#..JPP..(D,N)..USA

 2
28898-11020

4AFE,7AFE..AE10#..JPP..(D,N)..USA

BATTERY=55D23L

 2
Common parts
90179-08146
Linked diagrams
8202
