AE101L-AEHNKK (1995)

Toyota Corolla Jpp

Production Aug 1995 - Apr 1997
Engine 4AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )JPP

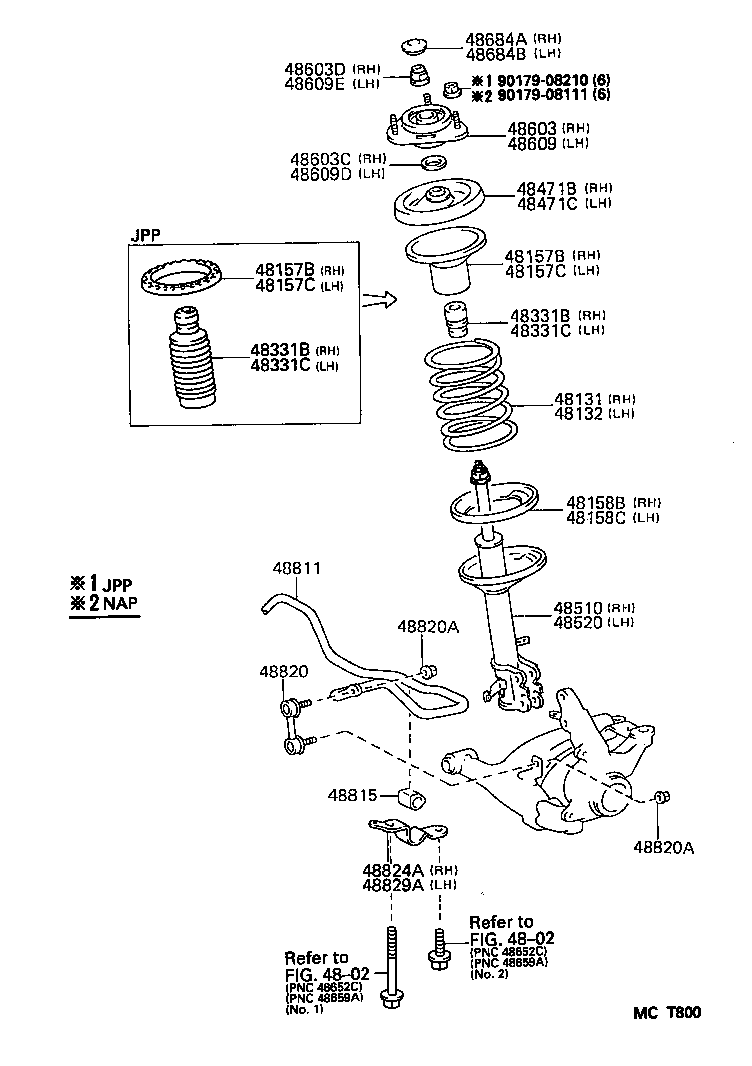

Click highlighted areas on diagram

diagram 4802 4802 48131 48132 48157B 48157B 48157C 48157C 48158B 48158C 48331B 48331B 48331C 48331C 48471B 48471C 48510 48520 48603 48603C 48603D 48609 48609D 48609E 48684A 48684B 48811 48815 48820 48820A 48820A 48824A 48829A 9017908111 9017908210
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-1K540

AE102..JPP..5F;AE101..JPP..3FC

W(AIR CONDITIONER)

 1
48131-1K380

AE102..JPP..5F;AE101..JPP..3FC

 1
48132 - SPRING, FRONT COIL, LH
48131-1K400

AE102..JPP..5F;AE101..JPP..3FC

W(AIR CONDITIONER)

 1
48131-1K540

AE102..JPP..5F;AE101..JPP..3FC

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-12060

AE10#..JPP

 1
48157-12070

AE10#..JPP

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-12060

AE10#..JPP

 1
48157-12070

AE10#..JPP

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-12060

AE10#..JPP

 1
48157-12070

AE10#..JPP

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-12060

AE10#..JPP

 1
48157-12070

AE10#..JPP

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-12030

AE10#..JPP

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-12030

AE10#..JPP

 1
48331B - BUMPER, FRONT SPRING, RH
48331-12140

AE10#..JPP

 1
48331-12120

AE10#..JPP

 1
48331B - BUMPER, FRONT SPRING, RH
48331-12140

AE10#..JPP

 1
48331-12120

AE10#..JPP

 1
48331C - BUMPER, FRONT SPRING, LH
48331-12140

AE10#..JPP

 1
48331-12120

AE10#..JPP

 1
48331C - BUMPER, FRONT SPRING, LH
48331-12140

AE10#..JPP

 1
48331-12120

AE10#..JPP

 1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-01020

AE10#..JPP

(L)

 1
48044-12090

AE10#..JPP

(J)

 1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-12090

AE10#..JPP

(J)

 1
48044-01020

AE10#..JPP

(L)

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-12870

AE10#..JPP

KAYABA

 1
48510-02030

AE10#..JPP

DELCO

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-02030

AE10#..JPP

DELCO

 1
48520-12740

AE10#..JPP

KAYABA

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-12330

AE10#..JPP

 1
48609-12270

AE10#..JPP

 1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22049

AE10#..JPP

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
94182-11400

AE10#..JPP

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-12330

AE10#..JPP

 1
48609-12270

AE10#..JPP

 1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22049

AE10#..JPP

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
94182-11400

AE10#..JPP

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-12070

AE10#..JPP

 1
48684-32010

AE10#..JPP

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-32010

AE10#..JPP

 1
48684-12070

AE10#..JPP

 1
Common parts
90179-08111
90179-08210
Linked diagrams
4802
