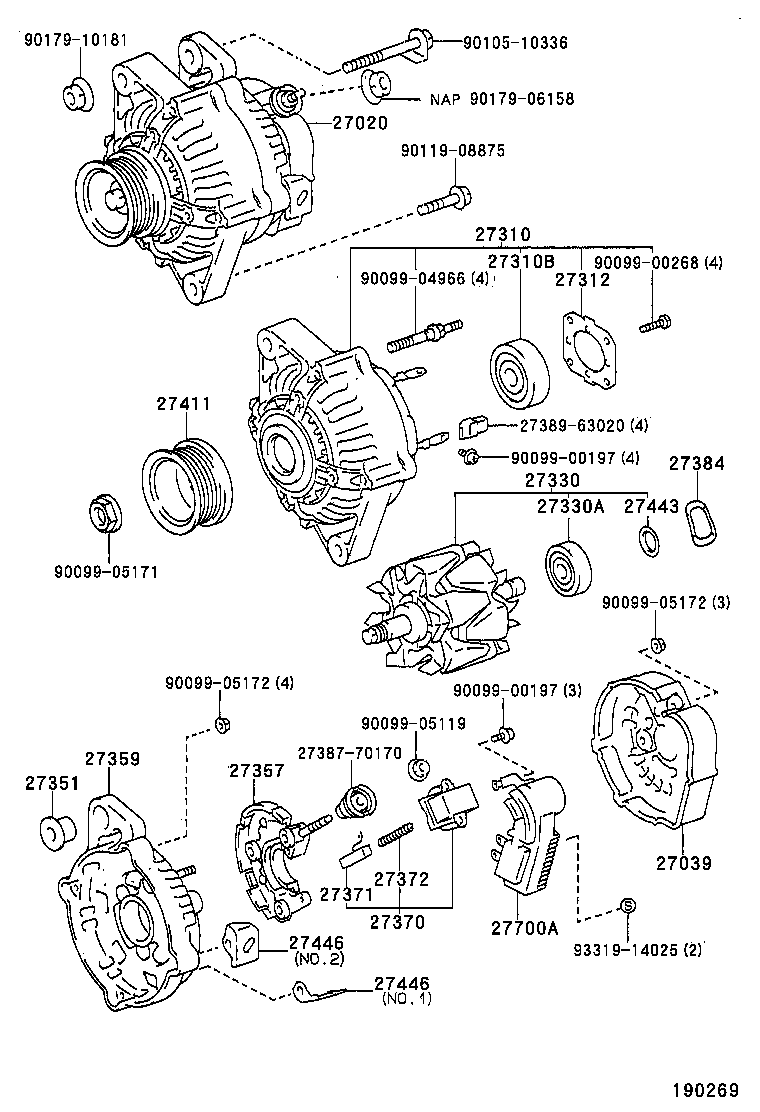

AE101L-AEHDKA (1992)
Toyota Corolla Jpp
(9206- )4AFE,7AFE..JPP..3FC,5F..USA
12V 70A,NIPPONDENSO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-15100 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,NIPPONDENSO |
1 | ||
| 27060-02050 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,DELCO REMY |
1 | ||
| 27060-02040 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,NIPPONDENSO TENESSEE |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15170 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-70010 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-15170 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27359-15171 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-15170 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 27446-15220 |
4AFE,7AFE..AE10#..JPP NO.2 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-15170 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 27446-15220 |
4AFE,7AFE..AE10#..JPP NO.2 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74030 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10336 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10181 | ||||
| 93319-14025 | ||||

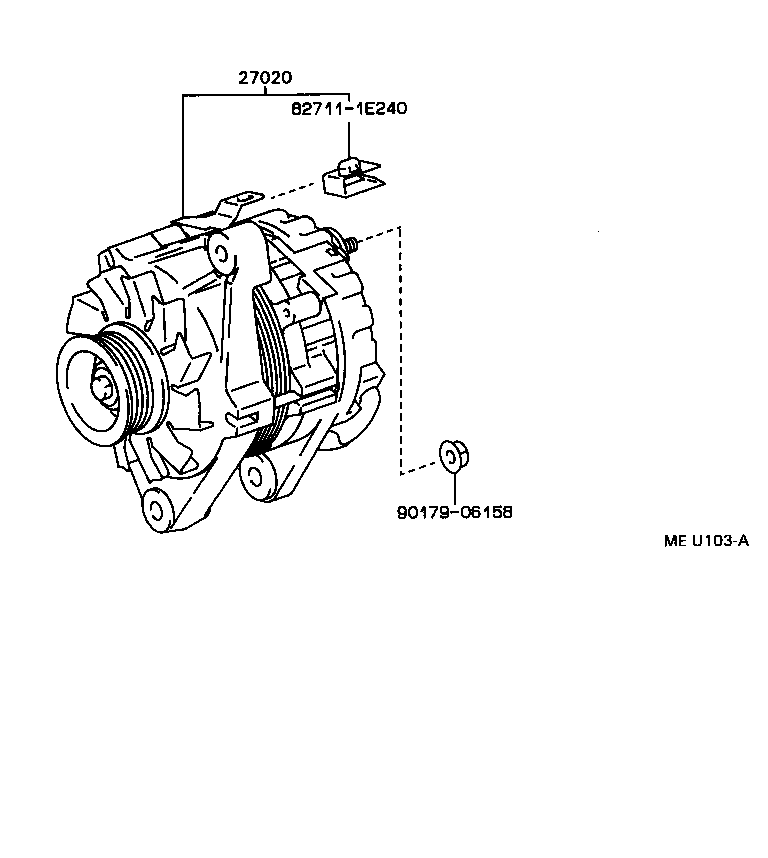

(9209- )JPP
12V 70A,DELCO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-15100 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,NIPPONDENSO |
1 | ||
| 27060-02050 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,DELCO REMY |
1 | ||
| 27060-02040 |
4AFE,7AFE..AE10#..JPP..(3FC,5F)..USA 12V 70A,NIPPONDENSO TENESSEE |
1 | ||
| Common parts | ||||
| 82711-1E240 | ||||
| 90179-06158 | ||||
