AE101L-AEHDKA (1992)
Toyota Corolla Jpp

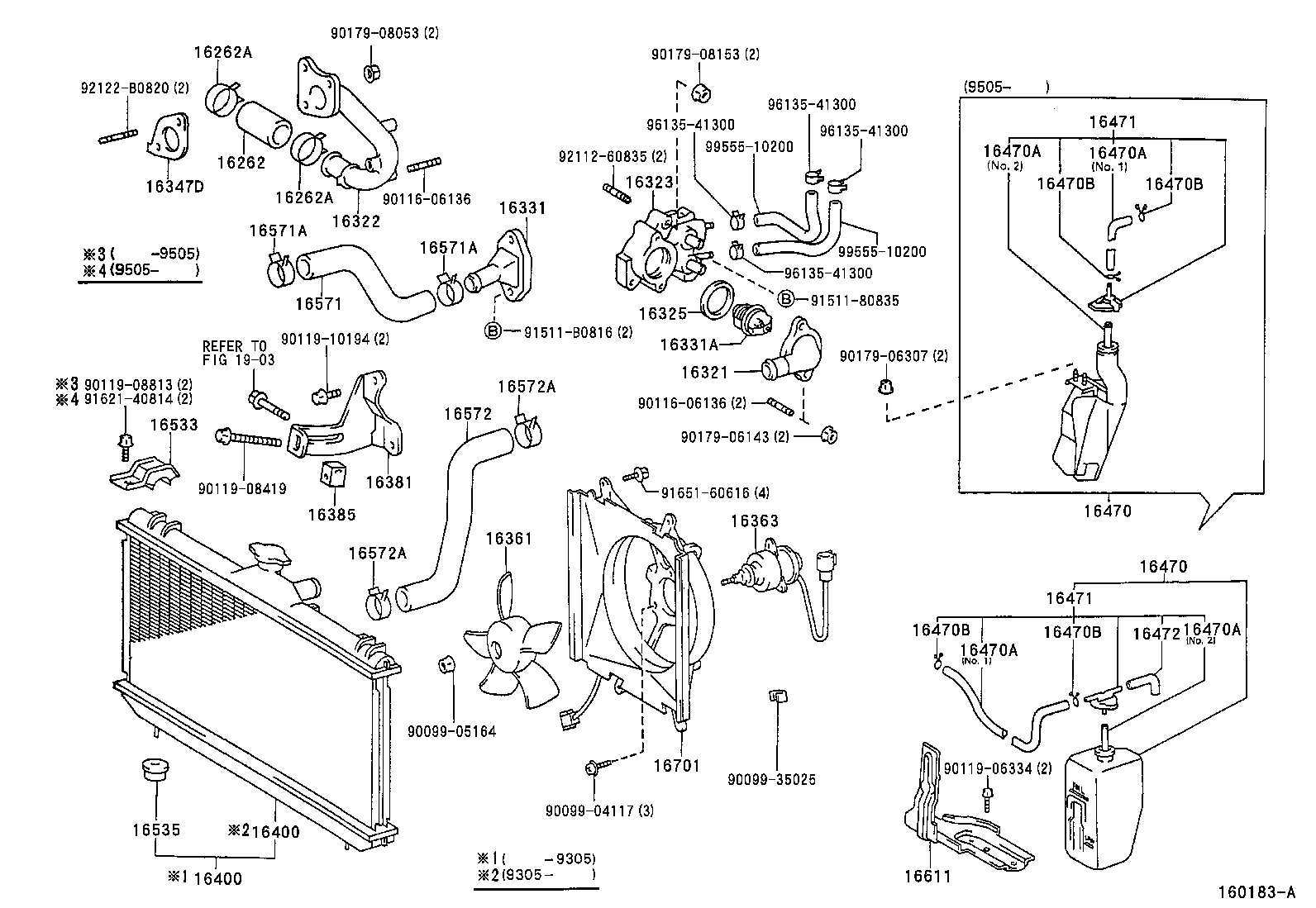

ILLUST NO. 1 OF 2(9206- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15040 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-15040 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-15050 |
4AFE..AE101..JPP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-16420 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AFE,7AFE..AE10#..JPP *WAX 82-95 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-15010 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16361 - FAN | ||||
| 16361-02050 |
4AFE,7AFE..AE10#..JPP NIPPONDENSO USA |
1 | ||
| 16361-11020 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16361-11020 |
4AFE,7AFE..AE10#..JPP NIPPONDENSO JAPAN |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-02040 |
4AFE,7AFE..AE10#..JPP..(D,N) (L) |
1 | ||
| 16363-74020 |
4AFE,7AFE..AE10#..JPP (J) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15080 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-15020 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722 |
1 | ||
| 16400-16440 |
4AFE..AE101..JPP..3FC |
1 | ||
| 16400-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722,NIPPONDENSO |
1 | ||
| 16410-02110 |
4AFE,7AFE..AE10#..JPP..ATM HARISON TOSHIBA |
1 | ||
| 16400-16441 |
4AFE..AE101..JPP..3FC NIPPONDENSO |
1 | ||
| 16400-16440 |
4AFE..AE101..JPP..3FC NIPPONDENSO |
1 | ||
| 16400-16431 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722,NIPPONDENSO |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722 |
1 | ||
| 16400-16440 |
4AFE..AE101..JPP..3FC |
1 | ||
| 16400-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722,NIPPONDENSO |
1 | ||
| 16410-02110 |
4AFE,7AFE..AE10#..JPP..ATM HARISON TOSHIBA |
1 | ||
| 16400-16441 |
4AFE..AE101..JPP..3FC NIPPONDENSO |
1 | ||
| 16400-16440 |
4AFE..AE101..JPP..3FC NIPPONDENSO |
1 | ||
| 16400-16431 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722,NIPPONDENSO |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15081 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16470-15080 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16470-15090 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA |
1 | ||
| 16470-15090 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15081 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16470-15080 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16470-15090 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA |
1 | ||
| 16470-15090 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.1 |
1 | ||
| 16471-15080 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 16478-15090 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 90445-12078 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.2 |
1 | ||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.1 |
1 | ||
| 16471-15080 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 16478-15090 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 90445-12078 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.2 |
1 | ||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.1 |
1 | ||
| 16471-15080 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 16478-15090 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 90445-12078 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.2 |
1 | ||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP *H,L=170,NO.2 |
1 | ||
| 16478-15090 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.1 |
1 | ||
| 16471-15080 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 16478-15090 |
4AFE,7AFE..AE10#..JPP NO.1 |
1 | ||
| 90445-12078 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA NO.2 |
1 | ||
| 90445-12078 |
4AFE,7AFE..AE10#..JPP NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16405-15091 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16405-15100 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16405-15100 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15090 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16405-15091 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16405-15100 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16405-15100 |
7AFE..AE102..JPP..4FC..CND;4AFE,7AFE..AE10#..JPP..(3FC,5F);7AFE..AE102..JPP..SED..4FC..USA |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-15080 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-02020 |
4AFE,7AFE..AE10#..JPP W(*66),(L),RH |
1 | ||
| 16533-15130 |
4AFE,7AFE..AE10#..JPP W(*66),LH |
1 | ||
| 16533-02020 |
4AFE..AE101..JPP;7AFE..AE102..JPP..USA;7AFE..AE102..JPP..SED..CND W(*66),(L),RH |
1 | ||
| 16533-15120 |
4AFE,7AFE..AE10#..JPP (J) |
2 | ||
| 16533-02020 |
4AFE,7AFE..AE10#..JPP (L) |
2 | ||
| 16533-15120 |
4AFE..AE101..JPP;7AFE..AE102..JPP..USA;7AFE..AE102..JPP..SED..CND W(*66),(J),RH |
1 | ||
| 16533-15130 |
4AFE..AE101..JPP;7AFE..AE102..JPP..USA;7AFE..AE102..JPP..SED..CND W(*66),LH |
1 | ||
| 16533-15120 |
4AFE,7AFE..AE10#..JPP W(*66),(J),RH |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-11030 |
4AFE,7AFE..AE10#..JPP..ATM |
2 | ||
| 16535-11030 |
4AFE,7AFE..AE10#..JPP..ATM TOYOTA GOUSEI |
2 | ||
| 16535-02020 |
4AFE,7AFE..AE10#..JPP HARISON TOSHIBA |
2 | ||
| 90916-04005 |
4AFE,7AFE..AE10#..JPP..ATM TOYOTA GOUSEI |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15160 |
4AFE..AE101..JPP (J) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15210 |
4AFE..AE101..JPP (J) |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..JPP |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-15020 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15271 |
4AFE,7AFE..AE10#..JPP NIPPONDENSO JAPAN |
1 | ||
| 16711-02051 |
4AFE,7AFE..AE10#..JPP NIPPONDENSO USA |
1 | ||
| 16711-02050 |
4AFE,7AFE..AE10#..JPP NIPPONDENSO USA |
1 | ||
| 16711-15270 |
4AFE,7AFE..AE10#..JPP NIPPONDENSO JAPAN |
1 | ||
| 16711-15270 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90116-06136 | ||||
| 90119-06334 | ||||
| 90119-08419 | ||||
| 90119-08813 | ||||
| 90119-10194 | ||||
| 90179-06143 | ||||
| 90179-06307 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 91621-40814 | ||||
| 91651-60616 | ||||
| 92112-60835 | ||||
| 92122-B0820 | ||||
| 96135-41300 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1903 | ||||

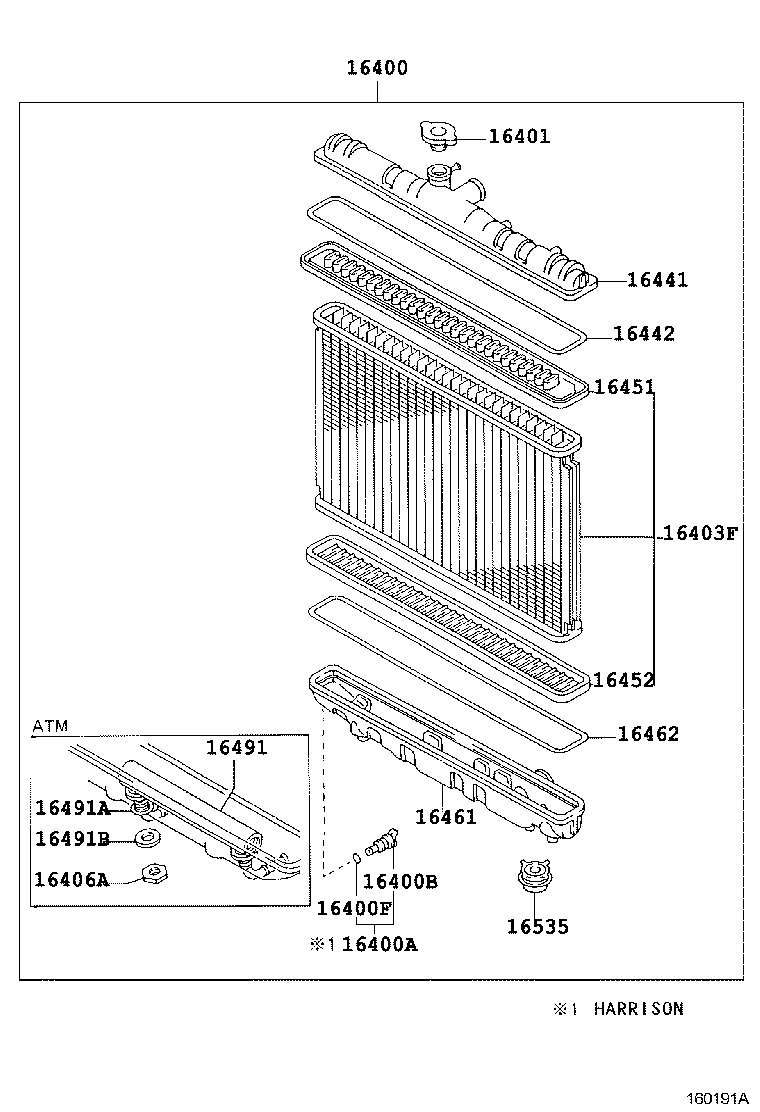

ILLUST NO. 2 OF 2(9206- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722 |
1 | ||
| 16400-16440 |
4AFE..AE101..JPP..3FC |
1 | ||
| 16400-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722,NIPPONDENSO |
1 | ||
| 16410-02110 |
4AFE,7AFE..AE10#..JPP..ATM HARISON TOSHIBA |
1 | ||
| 16400-16441 |
4AFE..AE101..JPP..3FC NIPPONDENSO |
1 | ||
| 16400-16440 |
4AFE..AE101..JPP..3FC NIPPONDENSO |
1 | ||
| 16400-16431 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722,NIPPONDENSO |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 90080-34011 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
7AFE..AE102..JPP;4AFE..AE101..JPP..3FC |
1 | ||
| 23322-54010 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 96711-19007 |
7AFE..AE102..JPP;4AFE..AE101..JPP..3FC |
1 | ||
| 90069-08019 |
4AFE,7AFE..AE10#..JPP HARRISON |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
4AFE,7AFE..AE10#..JPP |
1 | ||
| 16401-72090 |
7AFE..AE102..JPP;4AFE..AE101..JPP..3FC |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-64630 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722 |
1 | ||
| 16403-16440 |
4AFE..AE101..JPP..3FC |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
4AFE,7AFE..AE10#..JPP..ATM |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-16440 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-62050 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-62050 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-16430 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722 |
1 | ||
| 16461-16440 |
4AFE..AE101..JPP..3FC |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
4AFE,7AFE..AE10#..JPP..ATM |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-11310 |
4AFE..AE101..JPP..3FC |
1 | ||
| 16491-16380 |
4AFE..AE101..JPP..3FC..USA DIFFERENTIAL RATIO=3.722 |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4AFE,7AFE..AE10#..JPP..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
4AFE,7AFE..AE10#..JPP..ATM |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-11030 |
4AFE,7AFE..AE10#..JPP..ATM |
2 | ||
| 16535-11030 |
4AFE,7AFE..AE10#..JPP..ATM TOYOTA GOUSEI |
2 | ||
| 16535-02020 |
4AFE,7AFE..AE10#..JPP HARISON TOSHIBA |
2 | ||
| 90916-04005 |
4AFE,7AFE..AE10#..JPP..ATM TOYOTA GOUSEI |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
