MZEA12L-AHXNBK (2018)
Toyota Corolla Hatchback

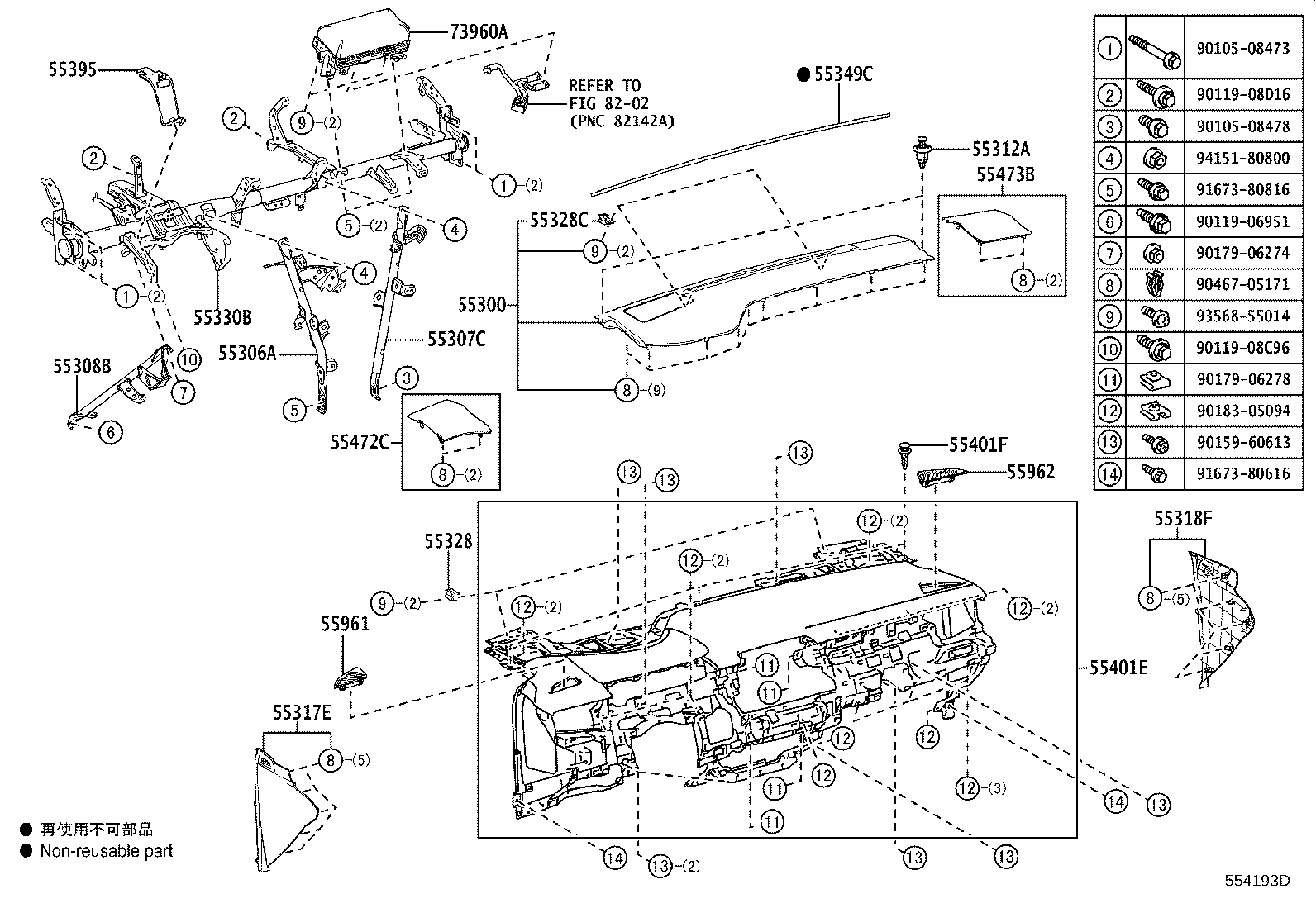

ILLUST NO. 1 OF 2(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-12050C0 |
MZEA12..CND HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55300-12040C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-12510 |
MZEA12 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-12410 |
MZEA12 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-12320 |
MZEA12 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07217 |
MZEA12 |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-12230C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-12170C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12430 |
MZEA12 |
2 | ||
| 55328-60090 |
MZEA12 |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-12420 |
MZEA12 |
2 | ||
| 55328-12440 |
MZEA12 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12630 |
MZEA12..CVT HEAD UP DISPLAY-WITH |
1 | ||
| 55330-12851 |
MZEA12..CVT |
1 | ||
| 55330-12850 |
MZEA12..CVT |
1 | ||
| 55330-12631 |
MZEA12..CVT..CND HEAD UP DISPLAY-WITH |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-12190 |
MZEA12 |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-12020 |
MZEA12 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-12900C0 |
MZEA12..CND BLACK,TRIM1#,2# |
1 | ||
| 55400-12901C1 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55400-12901C1 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55400-12901C3 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12901C9 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12901C8 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 55400-12901C3 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12901C2 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 55400-12901C2 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 55400-12901C9 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55400-12901C7 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55400-12901C7 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55400-12901C7 |
MZEA12..CND Z PACKAGE,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55400-12901C8 |
MZEA12 Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 55400-12900C4 |
MZEA12 BLACK,TRIM1#,2# |
1 | ||
| 55400-12901C8 |
MZEA12..CND Z PACKAGE,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 55400-12901C9 |
MZEA12..CND Z PACKAGE,BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-16010 |
MZEA12 |
3 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-12100C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55472-12110C0 |
MZEA12..CVT..CND AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER&DATA COMMUNICATION MODULE-19DCM,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55472-12110C0 |
MZEA12 AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-12090C0 |
MZEA12 AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55473-12080C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55473-12090C0 |
MZEA12..CVT..CND AUDIO(OVERSEAS MARKET)-T2 (8INCH) NAVI JBL 8SPEAKER&DATA COMMUNICATION MODULE-19DCM,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12250C0 |
MZEA12..CND Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55961-12250C0 |
MZEA12..CND BLACK,TRIM1#,2# |
1 | ||
| 55961-12250C0 |
MZEA12..CND Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55961-12250C0 |
MZEA12..CND Z PACKAGE,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-12220C0 |
MZEA12..CND Z PACKAGE&SEAT COVER MATERIAL-LEATHER & SUEDE,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55962-12220C0 |
MZEA12..CND Z PACKAGE,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55962-12220C0 |
MZEA12..CND BLACK,TRIM1#,2# |
1 | ||
| 55962-12220C0 |
MZEA12..CND Z PACKAGE&SEAT COVER MATERIAL-FABRIC & LEATHER,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12240 |
MZEA12 |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90119-06951 | ||||
| 90119-08C96 | ||||
| 90119-08D16 | ||||
| 90159-60613 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

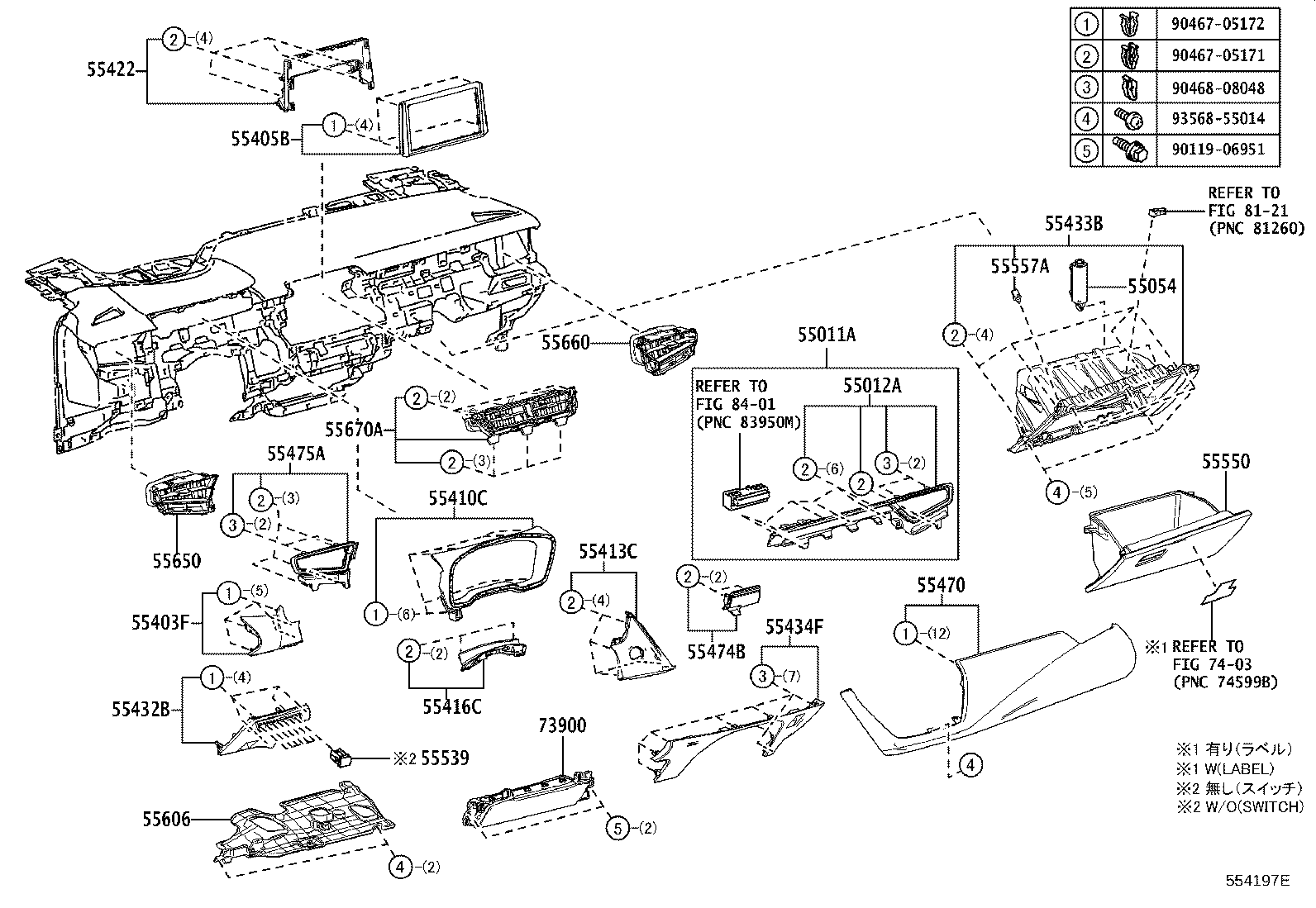

ILLUST NO. 2 OF 2(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-12160B0 |
MZEA12 SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-12080B0 |
MZEA12 SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MZEA12 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-12190C0 |
MZEA12 BLACK,TRIM2#,3#,4# |
1 | ||
| 55403-12190B1 |
MZEA12 COOL GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-12E90B0 |
MZEA12 SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-12D30C1 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-12730C0 |
MZEA12 BLACK,TRIM2#,3#,4# |
1 | ||
| 55413-12730B1 |
MZEA12 COOL GRAY,TRIM1# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-12210 |
MZEA12 |
1 | ||
| 55422 - ORNAMENT, INSTRUMENT PANEL METER, UPPER | ||||
| 55422-12340 |
MZEA12 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-12680C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12370C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-12310C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-12080B0 |
MZEA12 COOL GRAY/BLACK,TRIM1# |
1 | ||
| 55470-12081B0 |
MZEA12 COOL GRAY/GRAY,TRIM1# |
1 | ||
| 55470-12081C2 |
MZEA12 BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55470-12081C3 |
MZEA12 BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55470-12081C4 |
MZEA12 BLACK/GRAY,TRIM2# |
1 | ||
| 55470-12080C2 |
MZEA12 BLACK/TERRA COTTA,TRIM4# |
1 | ||
| 55470-12080C4 |
MZEA12 BLACK/BLACK,TRIM2# |
1 | ||
| 55470-12080C3 |
MZEA12 BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-12290B0 |
MZEA12 SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 55474-12260B0 |
MZEA12 SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-12160C1 |
MZEA12 BLACK/SILVER,TRIM1#,2#,3#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
MZEA12 BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12570C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MZEA12 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-12130 |
MZEA12 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12460 |
MZEA12 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-12530 |
MZEA12 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-12720 |
MZEA12 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-12110C0 |
MZEA12 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8401 | ||||
