MZEA12L-AHXNBK (2018)

Toyota Corolla Hatchback

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

Click highlighted areas on diagram

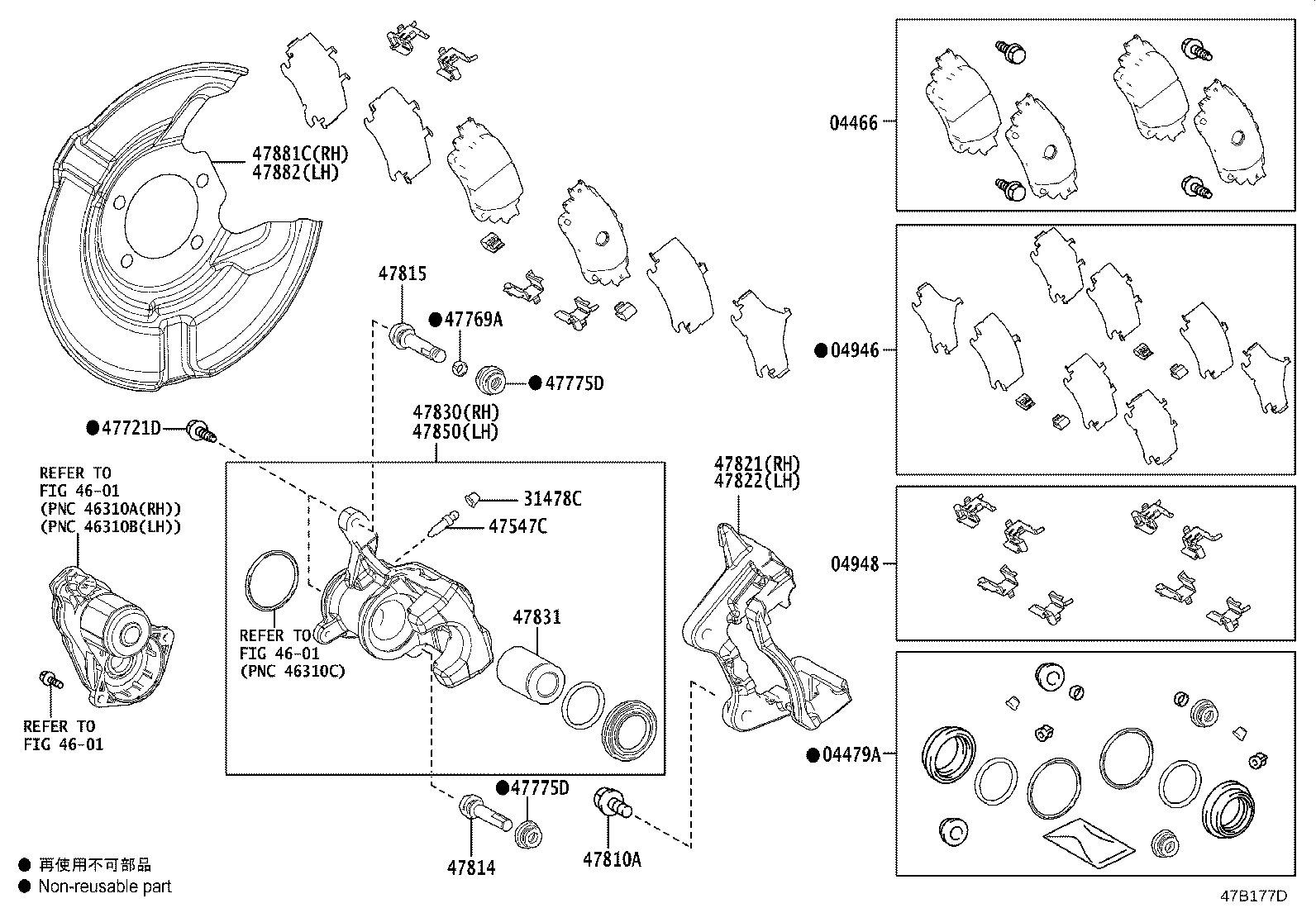

diagram 04466 04479A 04946 04948 31478C 4601 4601 4601 47547C 47721D 47769A 47775D 47775D 47810A 47814 47815 47821 47822 47830 47831 47850 47881C 47882
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-12162

MZEA12

MARK NBK D6360-FF

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-10091

MZEA12

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-12130

MZEA12

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12071

MZEA12

 1
04948-12070

MZEA12

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

MZEA12

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

MZEA12

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA603

MZEA12

*8-1.00PX23-12.5

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-50010

MZEA12

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270

MZEA12

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-33270

MZEA12

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12174

MZEA12

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-78010

MZEA12

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-78010

MZEA12

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-12280

MZEA12

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-12280

MZEA12

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-12280

MZEA12

 1
47831 - PISTON, REAR DISC BRAKE
47831-10030

MZEA12

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-12280

MZEA12

 1
47881C - COVER, DISC BRAKE DUST, REAR RH
47881-12130

MZEA12

 1
47882 - COVER, DISC BRAKE DUST, REAR LH
47882-12130

MZEA12

 1
Linked diagrams
4601
