MZEA12L-AHXNBA (2018)

Toyota Corolla Hatchback

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

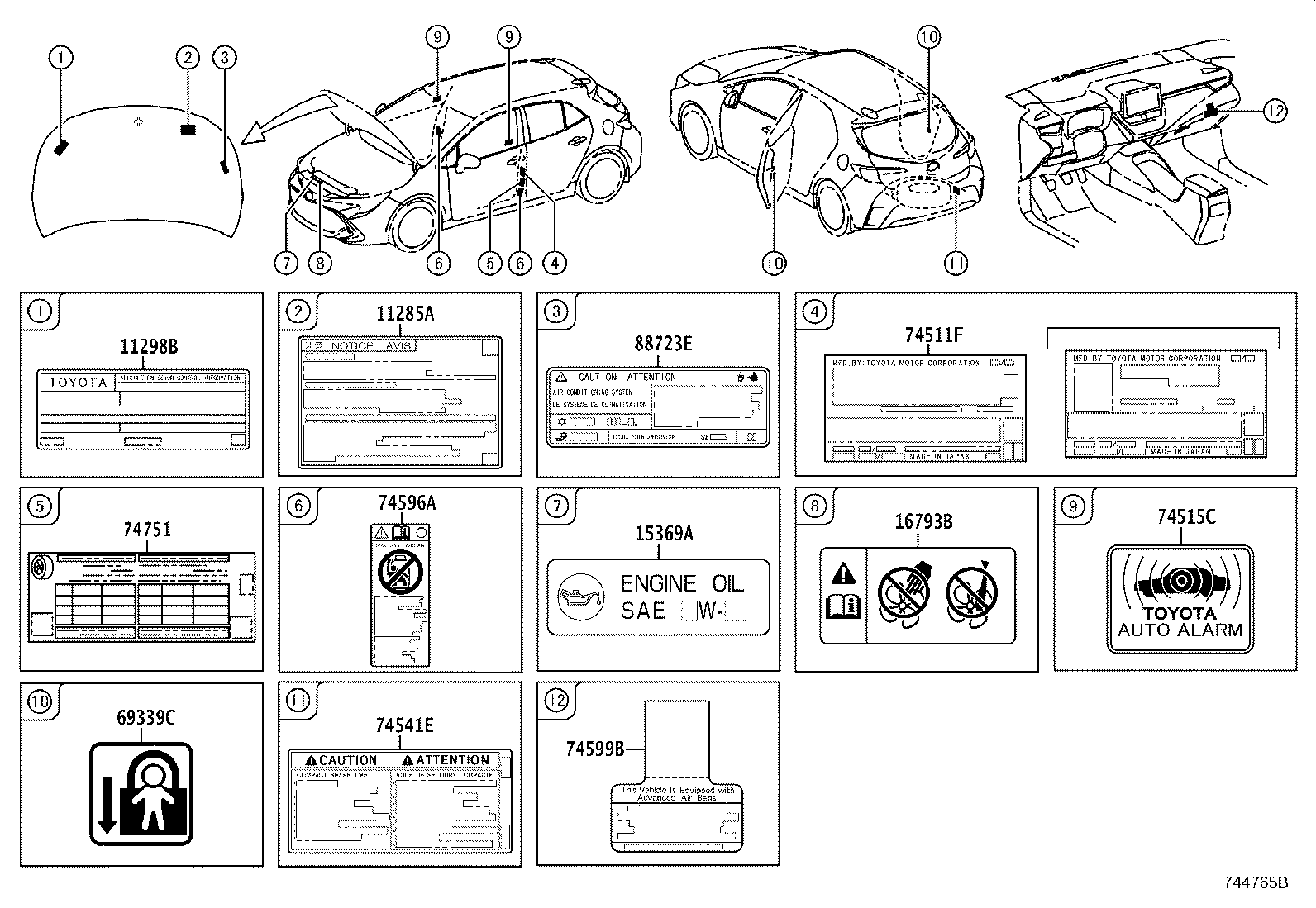

Click highlighted areas on diagram

diagram 11285A 11298B 15369A 16793B 69339C 74511F 74515C 74541E 74596A 74599B 74751 88723E
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-33030

M20AFKS..MZEA12

 1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-24121

M20AFKS..MZEA12

 1
11298-24070

M20AFKS..MZEA12

 1
11298-24120

M20AFKS..MZEA12

 1
15369A - LABEL, ENGINE OIL INFORMATION
15369-25010

M20AFKS..MZEA12

 1
16793B - LABEL, COOLING FAN INFORMATION
16793-36030

M20AFKS..MZEA12

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-33040

MZEA12

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74514-33010

MZEA12..USA

*111

 1
74515C - LABEL, THEFT WARNING INFORMATION
74515-33020

MZEA12

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)

 2
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-28090

MZEA12..USA

TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
42668-28090

MZEA12

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-78010

MZEA12

 2
74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-48020

MZEA12..USA

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-12N00

MZEA12

TIRE&DISC WHEEL-195/65R15 ALL SEASON TIRE STEEL WHEEL

 1
42661-12N10

MZEA12

 1
42661-12N40

MZEA12

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
42661-12N20

MZEA12

TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL

 1
42661-12N10

MZEA12..USA

TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
42661-12N30

MZEA12

TIRE&DISC WHEEL-195/65R15 ALL SEASON TIRE STEEL WHEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
42661-12S90

MZEA12

TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-12350

MZEA12

 1
88723-12280

MZEA12

 1
