MZEA12L-AHXNBA (2018)

Toyota Corolla Hatchback

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1806- )

Click highlighted areas on diagram

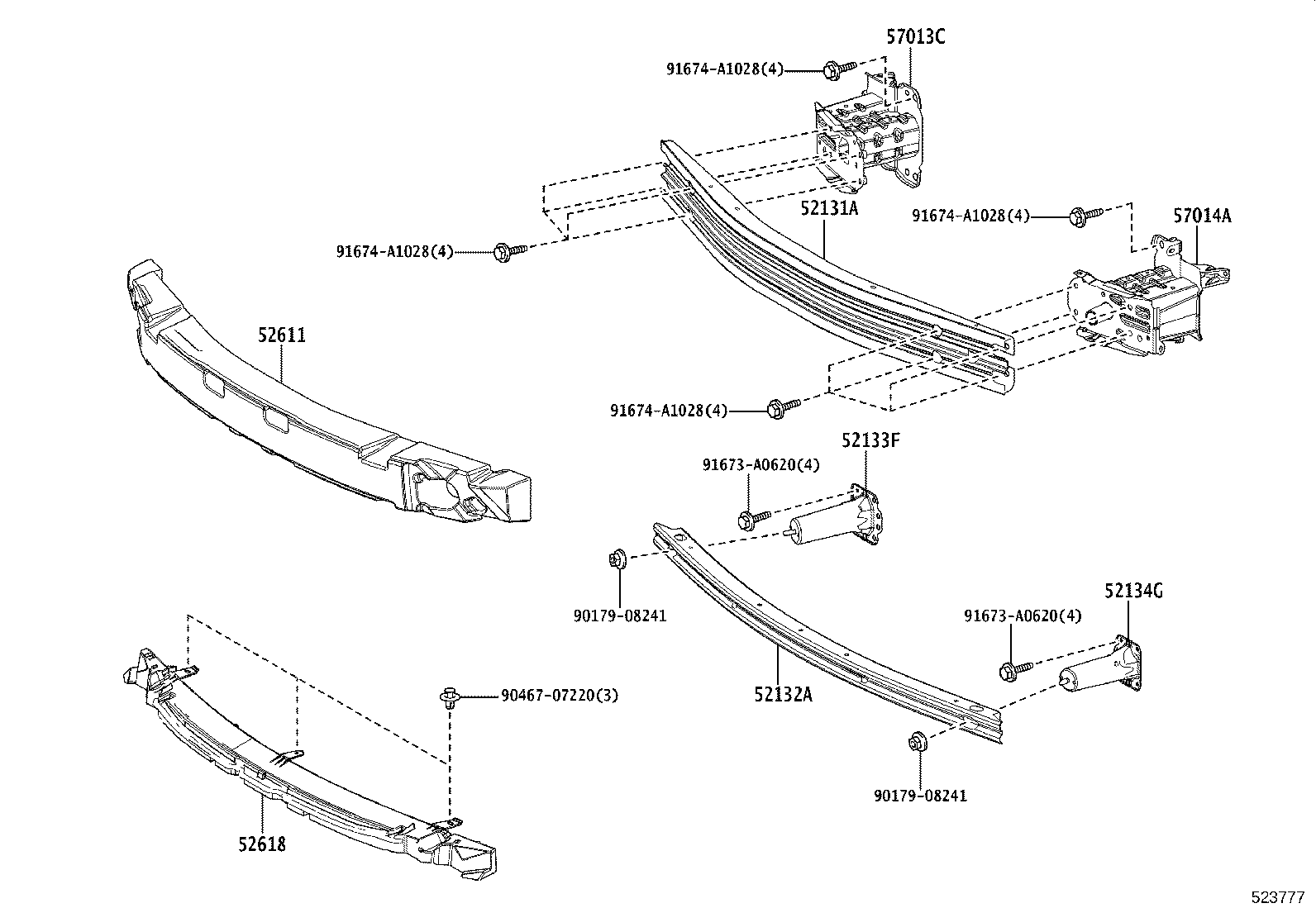

BUMPER REINFORCEMENT

diagram 52131A 52132A 52133F 52134G 52611 52618 57013C 57014A 9017908241 9017908241 9046707220 91673A0620 91673A0620 91674A1028 91674A1028 91674A1028 91674A1028
Part # Description Qty Price
52131A - REINFORCEMENT, FRONT BUMPER
52131-12310

MZEA12

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-12160

MZEA12

 1
52133F - BRACKET, FRONT BUMPER, RH
52133-12190

MZEA12

 1
52134G - BRACKET, FRONT BUMPER, LH
52133-12190

MZEA12

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-12410

MZEA12

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-12100

MZEA12

 1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-12070

MZEA12

 1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-12070

MZEA12

 1
Common parts
90179-08241
90467-07220
91673-A0620
91674-A1028

ILLUST NO. 1 OF 2(1806- )

Click highlighted areas on diagram

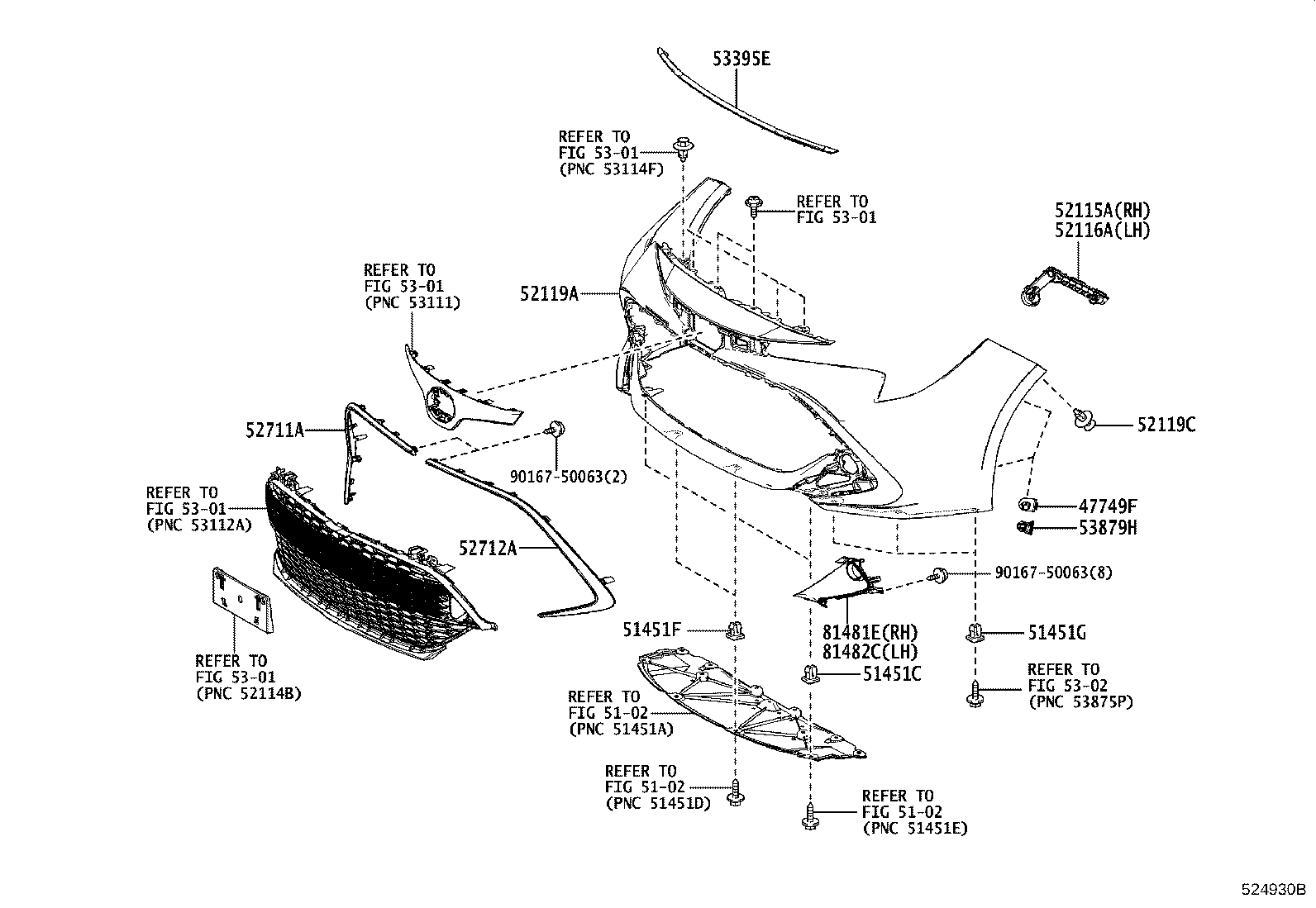

BUMPER COVER

diagram 47749F 5102 5102 5102 51451C 51451F 51451G 52115A 52116A 52119A 52119C 52711A 52712A 5301 5301 5301 5301 5301 5302 53395E 53879H 81481E 81482C 9016750063 9016750063
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

MZEA12

 4
51451C - GROMMET(FOR ENGINE UNDER COVER)
90189-06237

MZEA12

 2
51451F - GROMMET, NO.1
90189-06237

MZEA12

 2
51451G - GROMMET, NO.2
90189-06237

MZEA12

 6
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12520

MZEA12

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12470

MZEA12

 1
52119A - COVER, FRONT BUMPER
52119-12994

MZEA12

 1
52119C - CLIP, FRONT BUMPER COVER
90467-05170

MZEA12

 2
52711A - GARNISH, FRONT BUMPER
52711-12390

MZEA12

Z PACKAGE&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH

 1
52711-12380

MZEA12

 1
52712A - GARNISH, FRONT BUMPER, LH
52712-12070

MZEA12

Z PACKAGE&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH

 1
52712-12060

MZEA12

 1
53395E - SEAL, HOOD TO FRONT END PANEL
53395-12140

MZEA12

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

MZEA12

 4
81481E - COVER, FOG LAMP, RH
81481-12400

MZEA12

Z PACKAGE&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH

 1
81481-12390

MZEA12

 1
81482C - COVER, FOG LAMP, LH
81482-12310

MZEA12

Z PACKAGE&AIR CONDITIONER-AUTO AIR CONDITIONER(DUAL MODE CONTROL)&SEAT HEATER-WITH

 1
81482-12300

MZEA12

 1
Common parts
90167-50063
Linked diagrams
5102
5301
5302
