Toyota Corolla hatchback MZEA12 SWITCH & RELAY & COMPUTER

MZEA12L-AHFNBK (2018)

Toyota Corolla Hatchback

Production Jun 2018 - Sep 9999

Engine M20AFKS

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

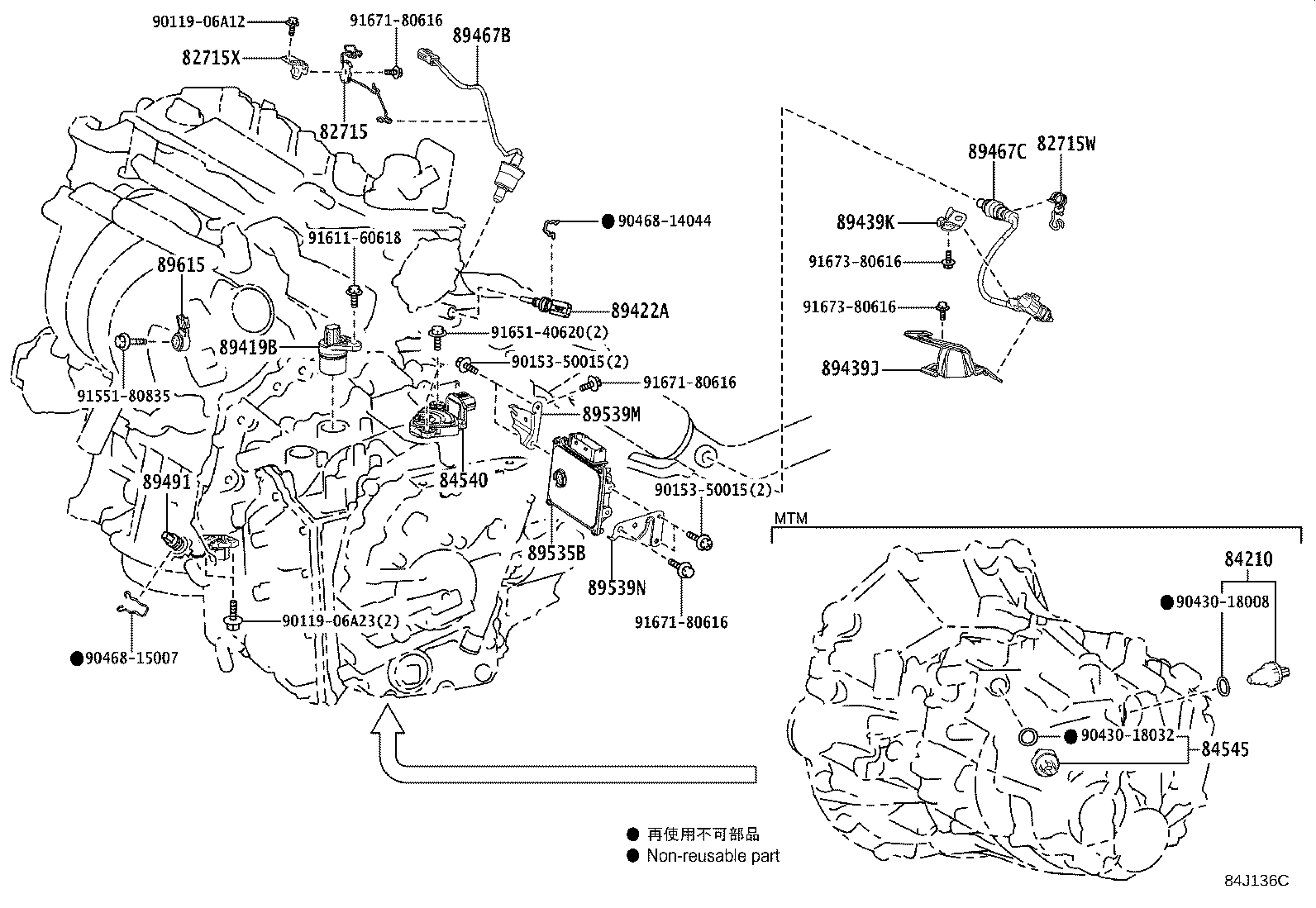

ILLUST NO. 1 OF 9(1806- )

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
82715 - BRACKET,WIRING HARNESS CLAMP
82715-12V90	MZEA12	06/2018 - 12/2999	1
82715W - BRACKET, WIRING HARNESS CLAMP
82729-20040	MZEA12	06/2018 - 12/2999	1
82715X - BRACKET, WIRING HARNESS CLAMP, NO.2
82715-12X50	MZEA12	06/2018 - 12/2999	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-52050	MZEA12..6F	06/2018 - 12/2999	1
84545 - SWITCH, NEUTRAL POSITION
84545-52010	MZEA12..6F	06/2018 - 12/2999	1
89422A - SENSOR, WATER TEMPERATURE
89422-33040	MZEA12	06/2018 - 12/2999	1
89439J - BRACKET, SENSOR, NO.2
82715-47A60	MZEA12	06/2018 - 12/2999	1
89439K - BRACKET, SENSOR, NO.3
82715-47690	MZEA12	06/2018 - 12/2999	1
89467B - SENSOR, AIR FUEL RATIO
89467-12280	MZEA12	06/2018 - 12/2999	1
89467C - SENSOR, AIR FUEL RATIO, NO.2
89467-12290	MZEA12	06/2018 - 12/2999	1
89491 - SENSOR, ENGINE OIL LEVEL
89491-33051	MZEA12	06/2018 - 12/2999	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	MZEA12	06/2018 - 12/2999	1
Common parts
90119-06A12
90119-06A23
90153-50015
90430-18008
90430-18032
90468-14044
90468-15007
91551-80835
91611-60618
91651-40620
91671-80616
91673-80616

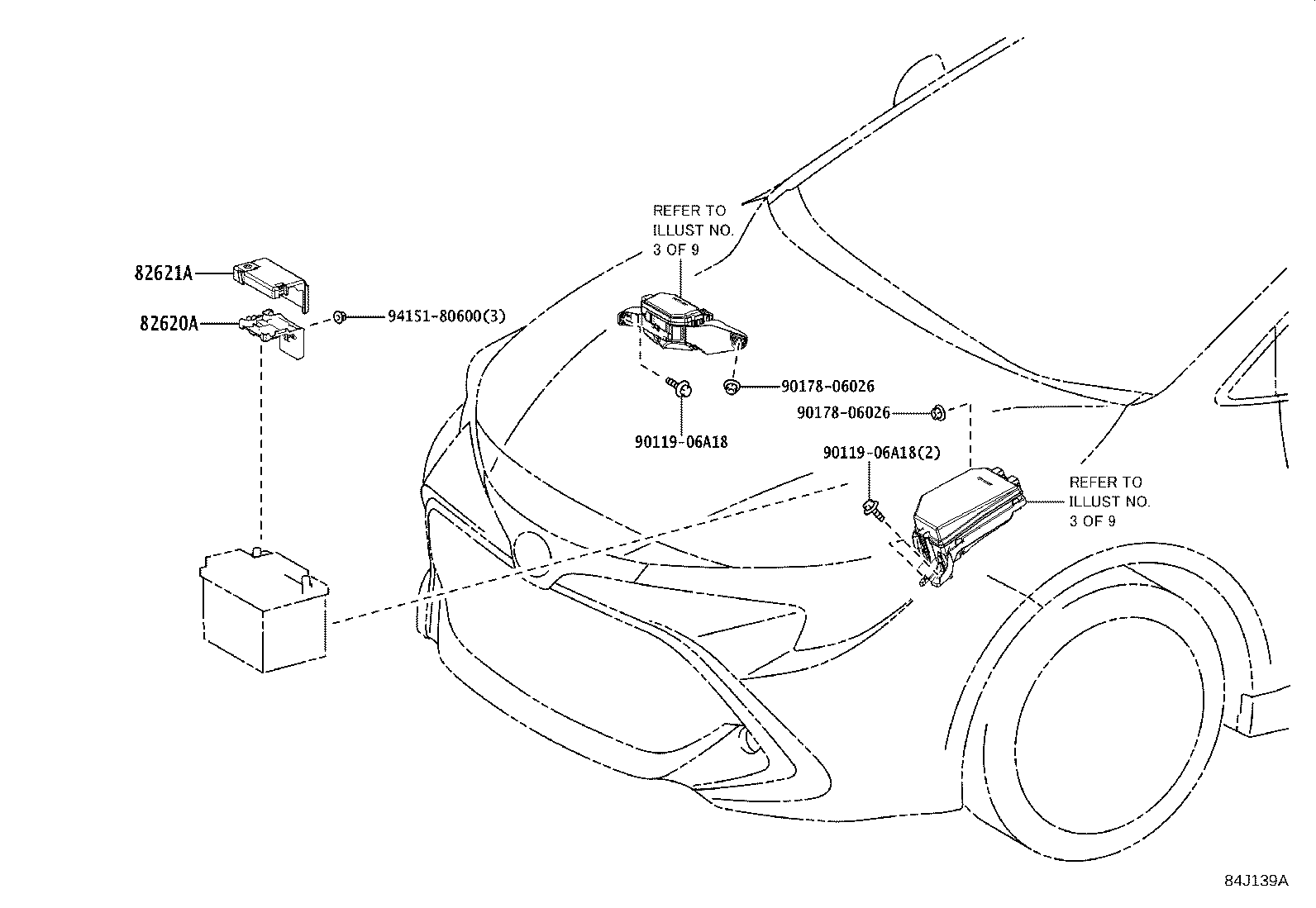

ILLUST NO. 2 OF 9(1806- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82620A - BLOCK ASSY, FUSIBLE LINK
82620-12310	MZEA12	06/2018 - 12/2999	1
82621A - COVER, FUSIBLE LINK
82621-12040	MZEA12	06/2018 - 12/2999	1
Common parts
90119-06A18
90178-06026
94151-80600

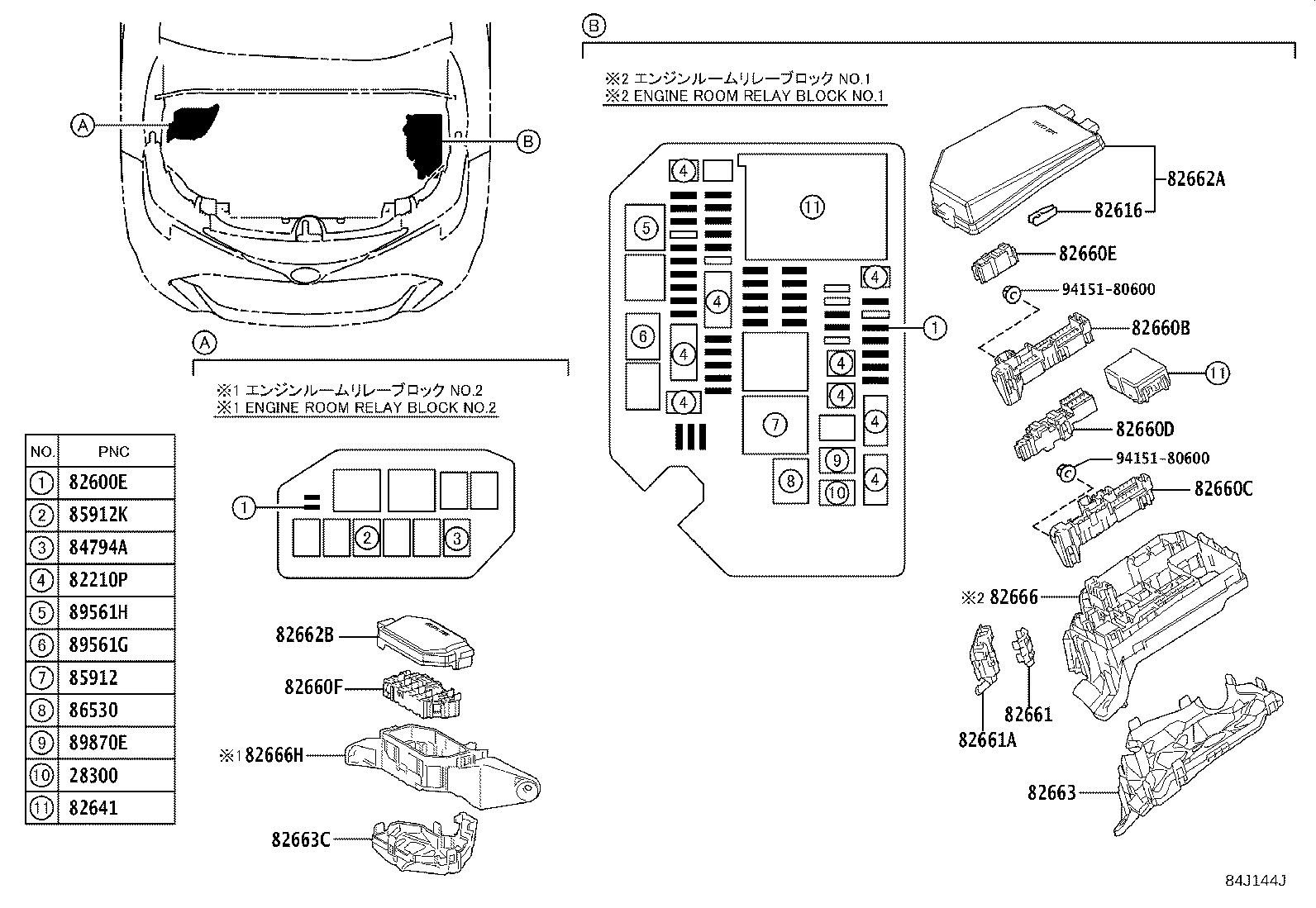

ILLUST NO. 3 OF 9(1806- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-21020	M20AFKS..MZEA12	06/2018 - 12/2999	1
82210P - ENGINE ROOM FUSIBLE LINK
90982-08295	MZEA12 30A,TERM.:FEMALE,PNK	06/2018 - 12/2999	1
90982-08294	MZEA12 40A,TERM.:FEMALE,GRN	06/2018 - 12/2999	1
90982-08300	MZEA12 50A-30A-30A,FEMALE	06/2018 - 12/2999	1
90982-08296	MZEA12 50A,TERM.:FEMALE,RED	06/2018 - 12/2999	1
90982-08305	MZEA12 80A,TERM.:FEMALE,BLK	06/2018 - 12/2999	1
90982-08299	MZEA12 40A-40A-40A,FEMALE	06/2018 - 12/2999	1
82600E - ENGINE ROOM FUSE
90982-09019	MZEA12 5A,MINI FUSE,TAN	06/2018 - 12/2999	1
90982-09023	MZEA12 20A,MINI FUSE,YELLOW	06/2018 - 12/2999	1
90982-09021	MZEA12 10A,MINI FUSE,RED	06/2018 - 12/2999	1
90982-09024	MZEA12 25A,MINI FUSE	06/2018 - 12/2999	1
90982-09025	MZEA12 30A,MINI FUSE,GRN	06/2018 - 12/2999	1
90982-09020	MZEA12 7.5A,MINI FUSE,BROWN	06/2018 - 12/2999	1
90982-09022	MZEA12 15A,MINI FUSE,BLUE	06/2018 - 12/2999	1
82616 - PULLER, FUSE
82616-58010	MZEA12	06/2018 - 12/2999	1
82641 - RELAY, INTEGRATION NO.1
82641-47050	MZEA12	06/2018 - 12/2999	1
82660B - BLOCK ASSY, RELAY
82660-12360	MZEA12	06/2018 - 12/2999	1
82660C - BLOCK ASSY, RELAY
82660-12390	MZEA12	06/2018 - 12/2999	1
82660D - BLOCK ASSY, RELAY
82660-12400	MZEA12	06/2018 - 12/2999	1
82660E - BLOCK ASSY, RELAY
82660-12470	MZEA12	06/2018 - 12/2999	1
82660F - BLOCK ASSY, RELAY
82660-12410	MZEA12	06/2018 - 12/2999	1
82661 - COVER, RELAY BLOCK, NO.1
82661-12350	MZEA12	06/2018 - 12/2999	1
82661A - COVER, RELAY BLOCK, NO.2
82661-12340	MZEA12	06/2018 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12E20	MZEA12 Z PACKAGE&HEADLAMP-PROJECTOR & W(AHB & AFLS)&SEAT HEATER-WITH	06/2018 - 12/2999	1
82662-12E70	MZEA12	06/2018 - 12/2999	1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-12E40	MZEA12	06/2018 - 12/2999	1
82663 - COVER, RELAY BLOCK, LOWER
82663-12160	MZEA12	06/2018 - 12/2999	1
82663C - COVER, RELAY BLOCK LOWER, NO.4
82663-47090	MZEA12	06/2018 - 12/2999	1
82666 - HOLDER, CONNECTOR
82666-12650	MZEA12	06/2018 - 12/2999	1
82666H - HOLDER, CONNECTOR, NO.2
82666-47620	MZEA12	06/2018 - 12/2999	1
84794A - RELAY, FR WIPER DEICER
90987-02027	MZEA12..CND	06/2018 - 12/2999	1
85912 - RELAY, DEFOGGER
90987-04010	MZEA12	06/2018 - 12/2999	1
85912K - RELAY, VVT
90987-02027	MZEA12	06/2018 - 12/2999	1
86530 - RELAY ASSY, HORN
90987-02027	MZEA12	06/2018 - 12/2999	1
89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
90987-02027	MZEA12	06/2018 - 12/2999	1
89561H - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
90987-02027	MZEA12	06/2018 - 12/2999	1
89870E - RELAY, ELECTRONIC DRIVER UNIT
90987-02027	MZEA12	06/2018 - 12/2999	1
Common parts
94151-80600

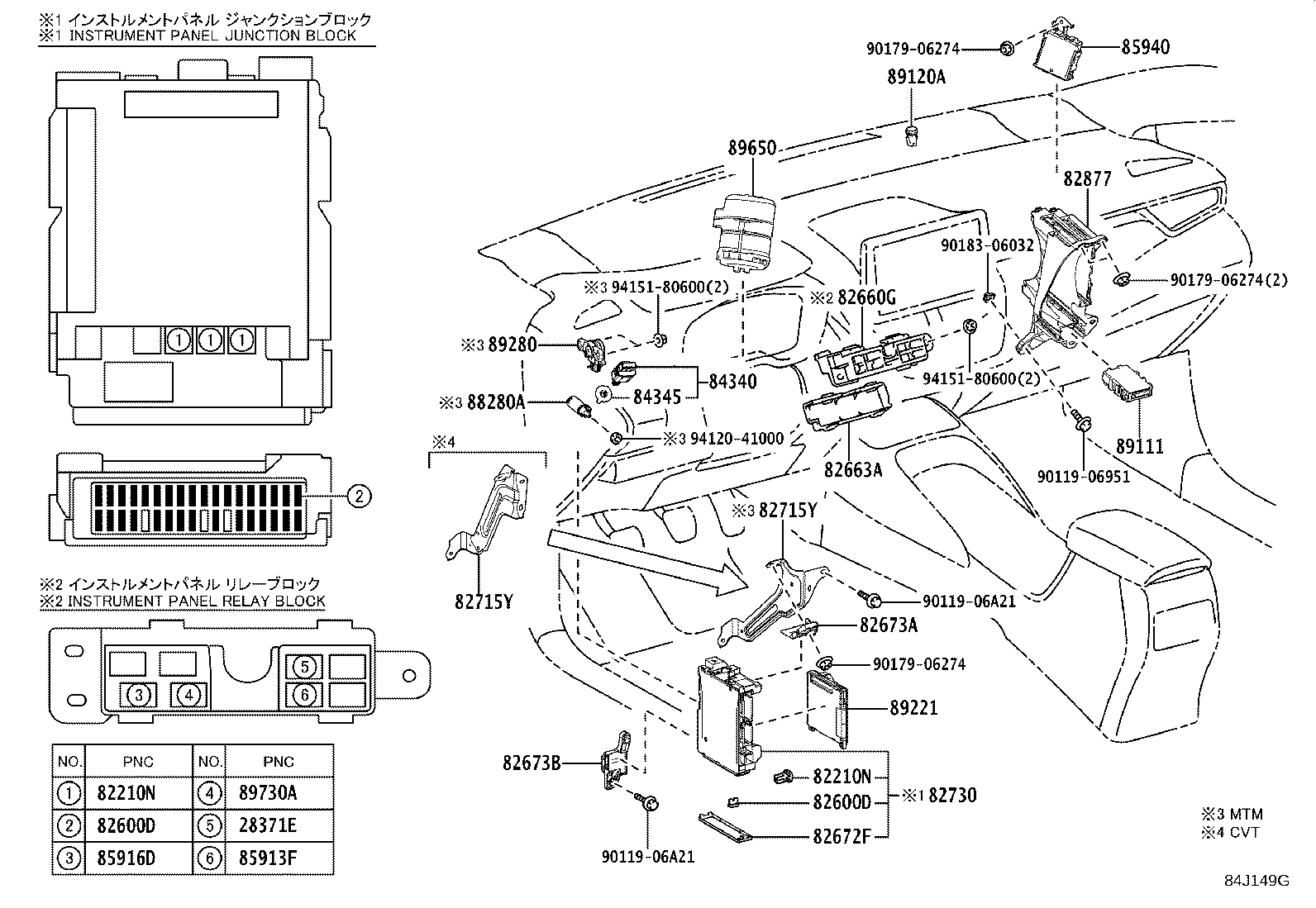

ILLUST NO. 4 OF 9(1806- )

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28371E - RELAY, IGNITION, NO.4
90987-02027	M20AFKS..MZEA12 SEAT HEATER-WITH	06/2018 - 12/2999	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306	MZEA12 30A,TERM.:FEMALE,PNK	06/2018 - 12/2999	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08306	MZEA12 30A,TERM.:FEMALE,PNK	06/2018 - 12/2999	1
82600D - INSTRUMENT PANEL FUSE
90982-09023	MZEA12 20A,MINI FUSE,YELLOW	06/2018 - 12/2999	1
90982-09019	MZEA12 5A,MINI FUSE,TAN	06/2018 - 12/2999	1
90982-09020	MZEA12 7.5A,MINI FUSE,BROWN	06/2018 - 12/2999	1
90982-09022	MZEA12 15A,MINI FUSE,BLUE	06/2018 - 12/2999	1
90982-09021	MZEA12 10A,MINI FUSE,RED	06/2018 - 12/2999	1
82600D - INSTRUMENT PANEL FUSE
90982-09023	MZEA12 20A,MINI FUSE,YELLOW	06/2018 - 12/2999	1
90982-09019	MZEA12 5A,MINI FUSE,TAN	06/2018 - 12/2999	1
90982-09020	MZEA12 7.5A,MINI FUSE,BROWN	06/2018 - 12/2999	1
90982-09022	MZEA12 15A,MINI FUSE,BLUE	06/2018 - 12/2999	1
90982-09021	MZEA12 10A,MINI FUSE,RED	06/2018 - 12/2999	1
82660G - BLOCK ASSY, RELAY
82660-12460	MZEA12	06/2018 - 12/2999	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12150	MZEA12	06/2018 - 12/2999	1
82672F - COVER, JUNCTION BLOCK
82672-12610	MZEA12	06/2018 - 07/2021	1
82673A - BRACKET, JUNCTION BLOCK
82673-12340	MZEA12	06/2018 - 12/2999	1
82673B - BRACKET, JUNCTION BLOCK
82673-12350	MZEA12	06/2018 - 12/2999	1
82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3
82715-12W60	MZEA12..6F	06/2018 - 12/2999	1
82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3
82715-12W60	MZEA12..6F	06/2018 - 12/2999	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-12N90	MZEA12	06/2018 - 07/2021	1
82877 - BOX, COMPUTER INTEGRATION, RH
82877-47040	MZEA12	06/2018 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-19095	MZEA12	04/2020 - 12/2999	1
84340-19085	MZEA12	06/2018 - 03/2020	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	MZEA12	06/2018 - 12/2999	1
85913F - RELAY, STEERING HEATER
90987-02027	MZEA12 STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER)	06/2018 - 12/2999	1
85916D - RELAY, FOG LAMP
90987-02027	MZEA12 Z PACKAGE	06/2018 - 12/2999	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12230	MZEA12	06/2018 - 12/2999	1
88280A - SWITCH ASSY, CLUTCH
88280-70010	MZEA12..6F	06/2018 - 12/2999	1
89111 - COMPUTER, NETWORK GATEWAY
89111-12030	MZEA12	06/2018 - 12/2999	1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-30020	MZEA12	06/2018 - 12/2999	1
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89220-12A20	MZEA12..6F..CND ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)&HEADLAMP-PROJECTOR & W(AHB & AFLS)	06/2018 - 07/2021	1
89220-12A10	MZEA12..6F..CND ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)	06/2018 - 07/2021	1
89220-12890	MZEA12..6F..CND	06/2018 - 07/2021	1
89220-12A00	MZEA12..6F..CND HEADLAMP-PROJECTOR & W(AHB & AFLS)	06/2018 - 07/2021	1
89280 - SENSOR ASSY, CLUTCH PEDAL STROKE
89280-10010	MZEA12..6F	06/2018 - 12/2999	1
89650 - COMPUTER ASSY, POWER STEERING
89650-12M00	MZEA12 JTEKT	09/2019 - 12/2999	1
89650-12M10	MZEA12 JTEKT,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL	09/2019 - 12/2999	1
89650-12J40	MZEA12 JTEKT/DENSO,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL	06/2018 - 09/2019	1
89650-12J30	MZEA12 JTEKT/DENSO	06/2018 - 09/2019	1
89730A - RELAY(FOR SECURITY WARNING)
90987-02027	MZEA12 ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)	06/2018 - 12/2999	1
Common parts
90119-06951
90119-06A21
90179-06274
90183-06032
94120-41000
94151-80600

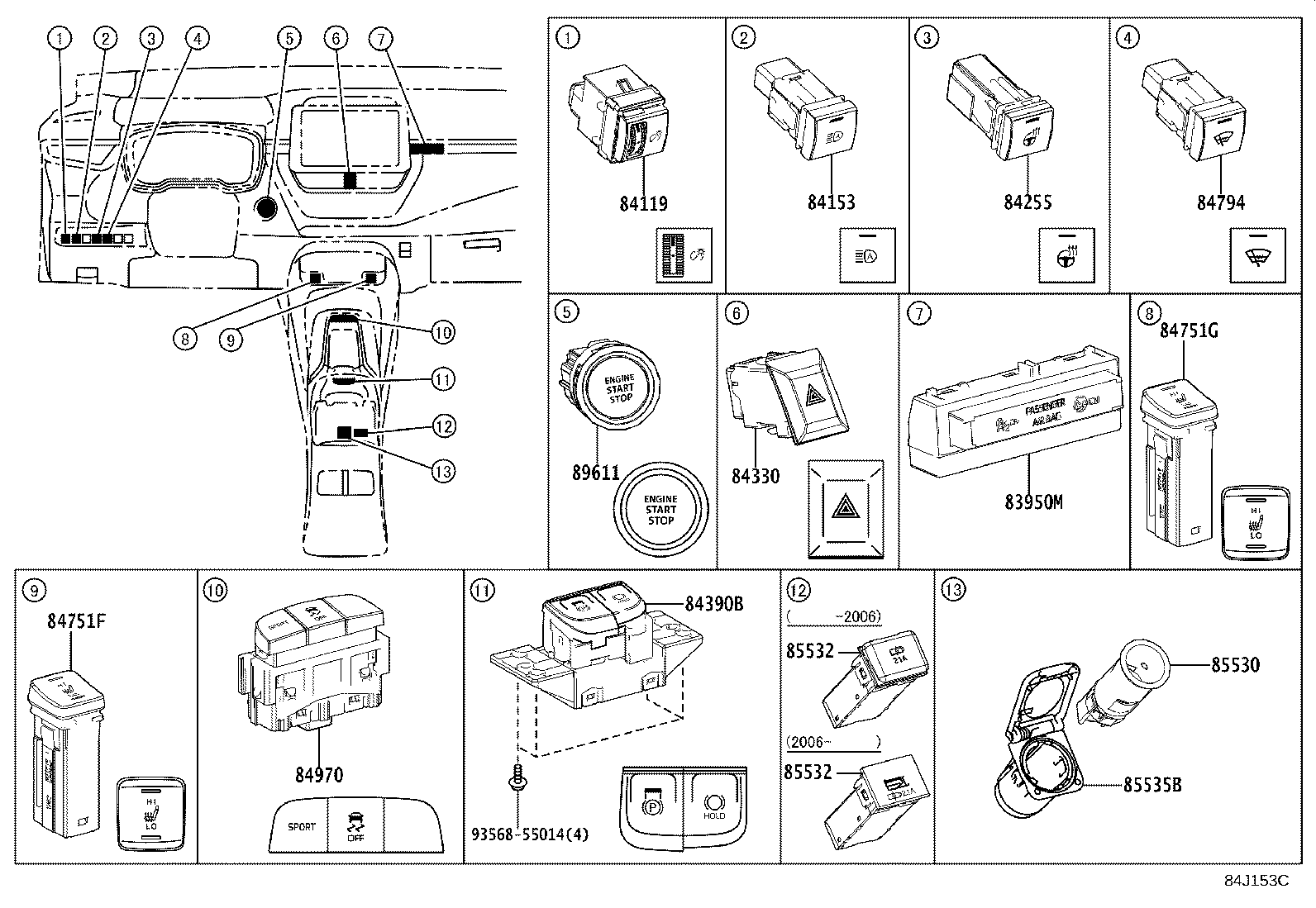

ILLUST NO. 5 OF 9(1806-2107)

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
83950M - LAMP ASSY, TELLTALE
83950-12340	MZEA12	06/2018 - 12/2999	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12200	MZEA12	06/2018 - 12/2999	1
84153 - SWITCH, AUTO HIGH BEAM
84153-33040	MZEA12	06/2018 - 12/2999	1
84153-33040	MZEA12 HEADLAMP-PROJECTOR	06/2018 - 12/2999	1
84255 - SWITCH, STEERING HEATER
84255-33010	MZEA12 STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER)	06/2018 - 12/2999	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12600	MZEA12	06/2018 - 12/2999	1
84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE
84390-12050	MZEA12	10/2019 - 12/2999	1
84390-12010	MZEA12	06/2018 - 10/2019	1
84751F - SWITCH, SEAT HEATER
84751-12140	MZEA12 SEAT HEATER-WITH,RIGHT SIDE	06/2018 - 12/2999	1
84751G - SWITCH, SEAT HEATER
84751-12150	MZEA12 SEAT HEATER-WITH,LEFT SIDE	06/2018 - 12/2999	1
84794 - SWITCH, FR WIPER DEICER
84871-60060	MZEA12..CND	06/2018 - 12/2999	1
84970 - SWITCH ASSY, COMBINATION
84970-12170	MZEA12..6F	06/2018 - 07/2021	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-42010	MZEA12	06/2018 - 12/2999	1
85532 - SOCKET, USB CHARGER
85532-12020	MZEA12	06/2020 - 07/2021	1
85532-12010	MZEA12	06/2018 - 06/2020	1
85532 - SOCKET, USB CHARGER
85532-12020	MZEA12	06/2020 - 07/2021	1
85532-12010	MZEA12	06/2018 - 06/2020	1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-12090C0	MZEA12 BLACK	06/2018 - 12/2020	1
85535-12080	MZEA12	01/2021 - 12/2999	1
89611 - SWITCH, PUSH START
89611-12010	MZEA12	06/2018 - 12/2999	1
Common parts
93568-55014

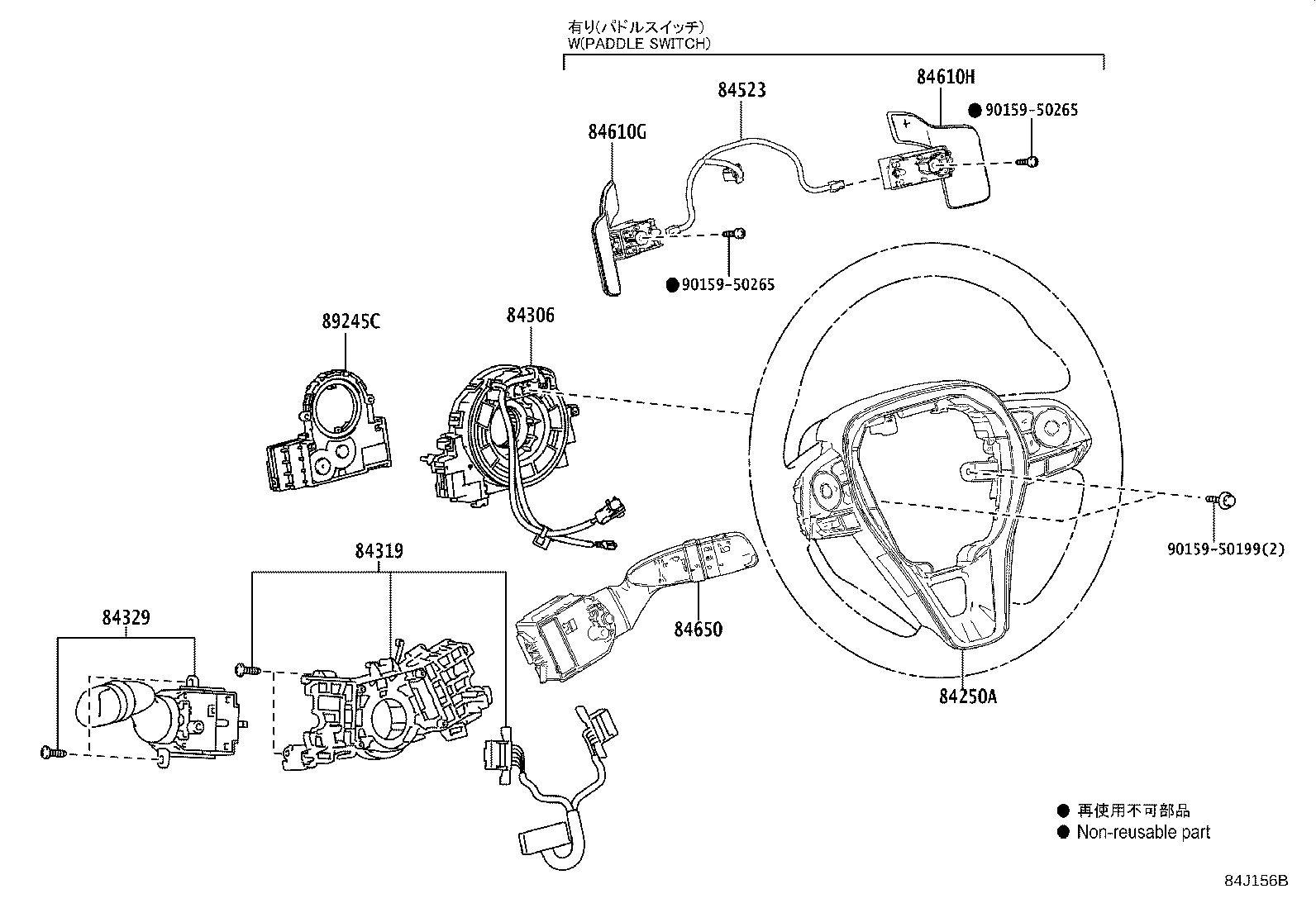

ILLUST NO. 6 OF 9(1806- )

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84250A - SWITCH ASSY, STEERING PAD
84250-12690	MZEA12	06/2018 - 12/2999	1
84306 - CABLE SUB-ASSY, SPIRAL
84308-12030	MZEA12	06/2018 - 12/2999	1
84308-11020	MZEA12 STEERING WHEEL-3-SPOKE, LEATHER, WITH(HEATER)	06/2018 - 12/2999	1
84319 - HOUSING, STEERING WHEEL SWITCH
84319-11010	MZEA12	06/2018 - 12/2999	1
84329 - SWITCH, TURN SIGNAL
84329-12140	MZEA12..CND Z PACKAGE	06/2018 - 07/2021	1
84329-12110	MZEA12..CND	06/2018 - 07/2021	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-12A70	MZEA12..CND	06/2018 - 12/2999	1
89245C - SENSOR, STEERING
8924B-50010	MZEA12	06/2018 - 12/2999	1
Common parts
90159-50199
90159-50265

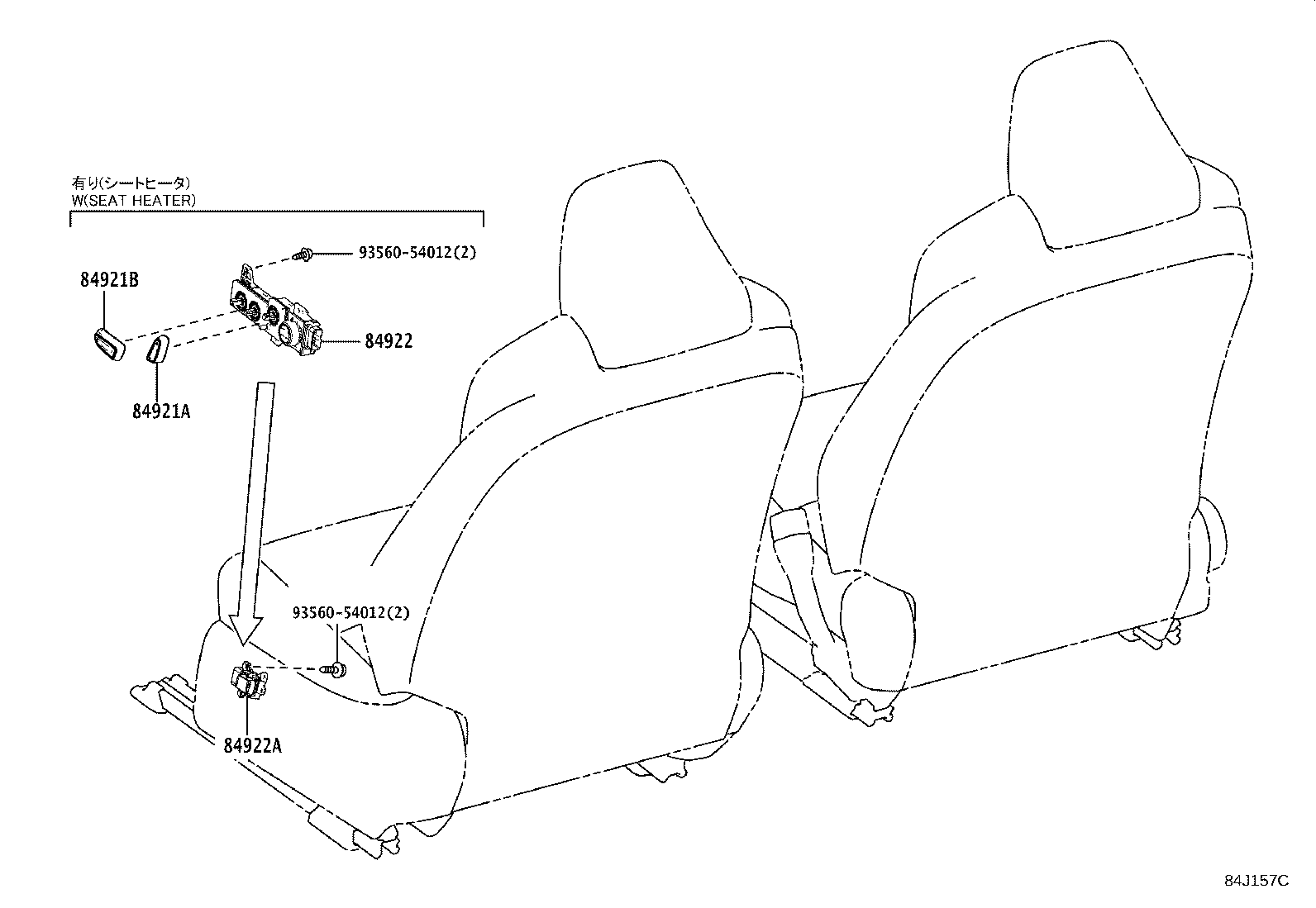

ILLUST NO. 7 OF 9(1806- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-33180C0	MZEA12 SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(DRS:POWER SEAT & PAS:MANUALSEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#	06/2018 - 12/2999	1
84921-33180C0	MZEA12 SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#	06/2018 - 12/2999	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-33170C0	MZEA12 SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(DRS:POWER SEAT & PAS:MANUALSEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#	06/2018 - 12/2999	1
84921-33170C0	MZEA12 SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#	06/2018 - 12/2999	1
84922 - SWITCH, FRONT POWER SEAT
84922-33210C0	MZEA12 SEAT COVER MATERIAL-LEATHER & SUEDE&FRONT SEAT-WITH(DRS:POWER SEAT & PAS:MANUALSEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#	06/2018 - 12/2999	1
84922-33210C0	MZEA12 SEAT COVER MATERIAL-FABRIC & LEATHER&FRONT SEAT-WITH(DRS:POWER SEAT & PAS:MANUAL SEAT)&SEAT HEATER-WITH,BLACK,TRIM1#,2#,3#,4#	06/2018 - 12/2999	1
84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR)
84920-12010C0	MZEA12 SEAT HEATER-WITH,BLACK,TRIM1#,2#	06/2018 - 07/2021	1
Common parts
93560-54012

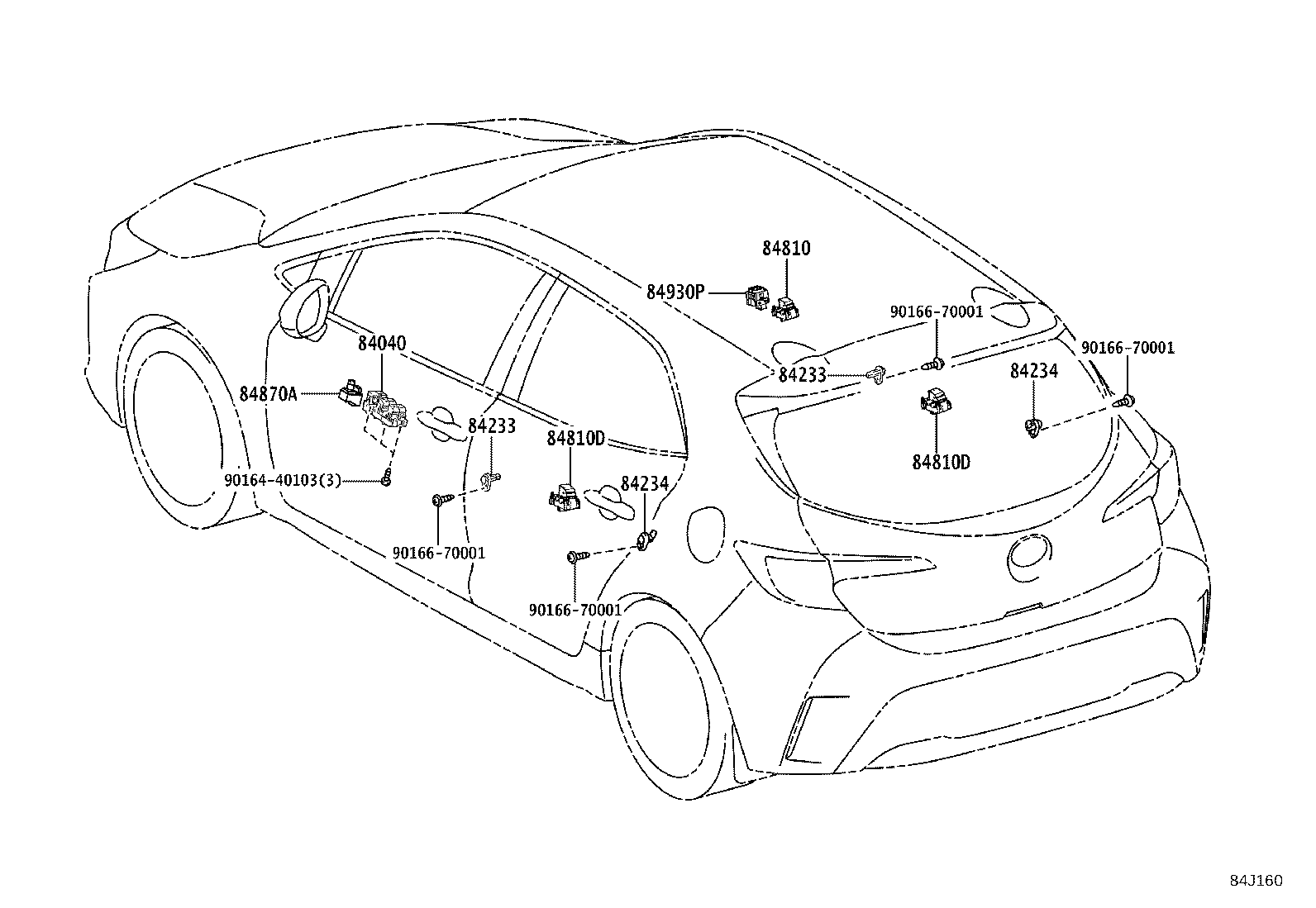

ILLUST NO. 8 OF 9(1806- )

Click highlighted areas on diagram

DOOR & ROOF

Part #	Description	Period	Qty
84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK
84040-12210	MZEA12	06/2018 - 12/2999	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	MZEA12	06/2018 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-60070	MZEA12	06/2018 - 12/2999	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010	MZEA12	06/2018 - 12/2999	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-53010	MZEA12	06/2018 - 12/2999	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12120	MZEA12	06/2018 - 12/2999	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12120	MZEA12	06/2018 - 12/2999	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12120	MZEA12	06/2018 - 12/2999	2
84870A - SWITCH ASSY, OUTER MIRROR
84872-12130	MZEA12	06/2018 - 07/2021	1
84930P - SWITCH ASSY, DOOR CONTROL
84930-12270	MZEA12	06/2018 - 12/2999	1
Common parts
90164-40103
90166-70001

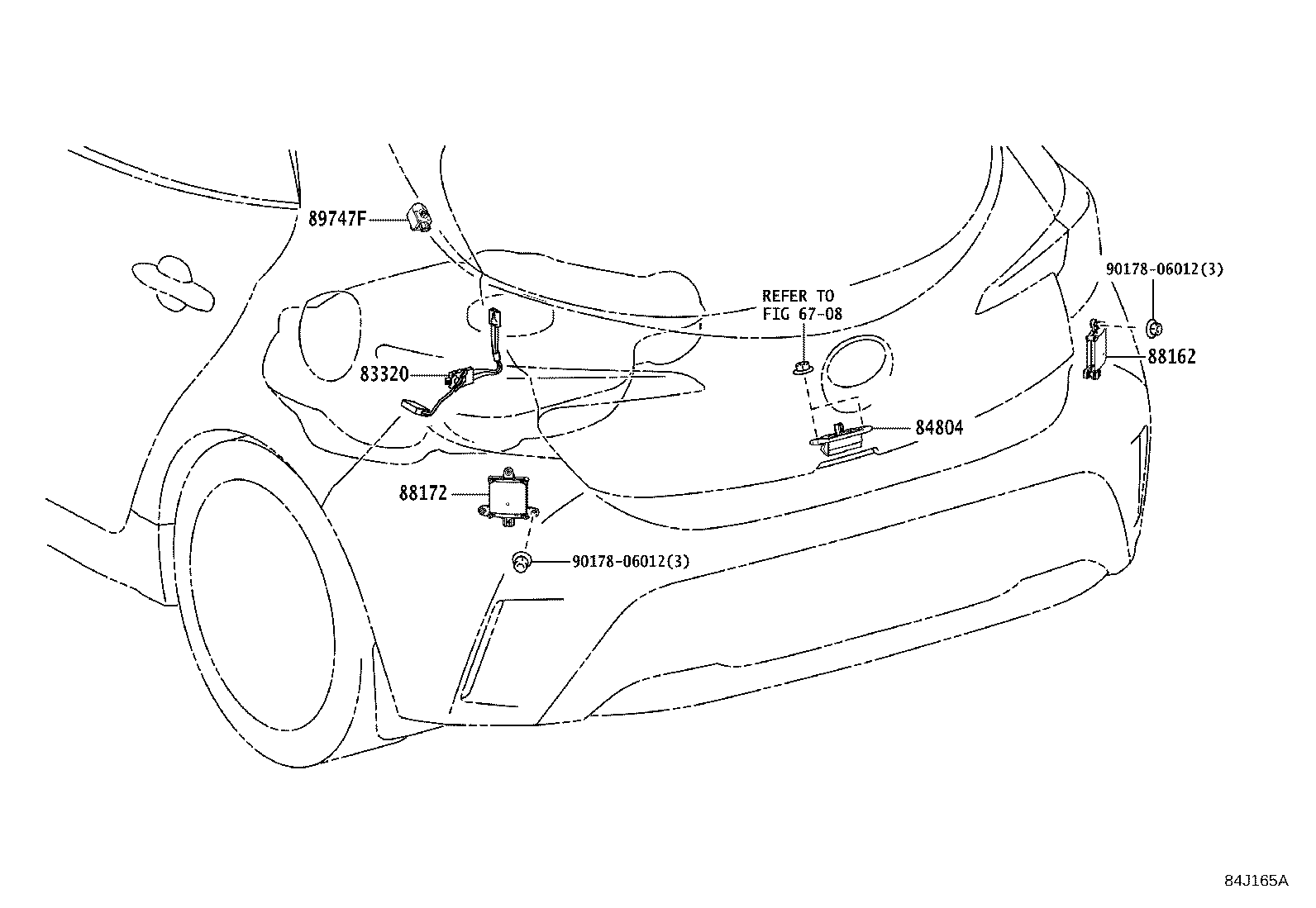

ILLUST NO. 9 OF 9(1806- )

Click highlighted areas on diagram

FLOOR & BACK DOOR

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-10260	MZEA12	06/2018 - 12/2999	1
84804 - SWITCH SUB-ASSY, BACK DOOR OPENER
84804-12050	MZEA12	06/2018 - 12/2999	1
88162 - SENSOR, BLIND SPOT MONITOR, RH
88162-12020	MZEA12 LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	06/2018 - 10/2018	1
88162-12022	MZEA12 LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	06/2020 - 12/2999	1
88162-12021	MZEA12 LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	11/2018 - 06/2020	1
88172 - SENSOR, BLIND SPOT MONITOR, LH
88162-12022	MZEA12 LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	06/2020 - 12/2999	1
88162-12020	MZEA12 LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	06/2018 - 10/2018	1
88162-12021	MZEA12 LANE CHANGE ASSIST-WITH(*BSM & LANE CHANGE ASSIST)	11/2018 - 06/2020	1
89747F - BUZZER, BLIND SPOT MONITOR
89747-52010	MZEA12 LANE CHANGE ASSIST-WITH(BSM & LANE CHANGE ASSIST & RCTA)	06/2020 - 12/2999	1
Common parts
90178-06012
Linked diagrams
6708

MZEA12L-AHFNBK (2018)

ILLUST NO. 1 OF 9(1806- )

ILLUST NO. 2 OF 9(1806- )

ILLUST NO. 3 OF 9(1806- )

ILLUST NO. 4 OF 9(1806- )

ILLUST NO. 5 OF 9(1806-2107)

ILLUST NO. 6 OF 9(1806- )

ILLUST NO. 7 OF 9(1806- )

ILLUST NO. 8 OF 9(1806- )

ILLUST NO. 9 OF 9(1806- )

Part Price Details
