MZEA12L-AHFNBK (2018)

Toyota Corolla Hatchback

Production Jun 2018 - Sep 9999
Engine M20AFKS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

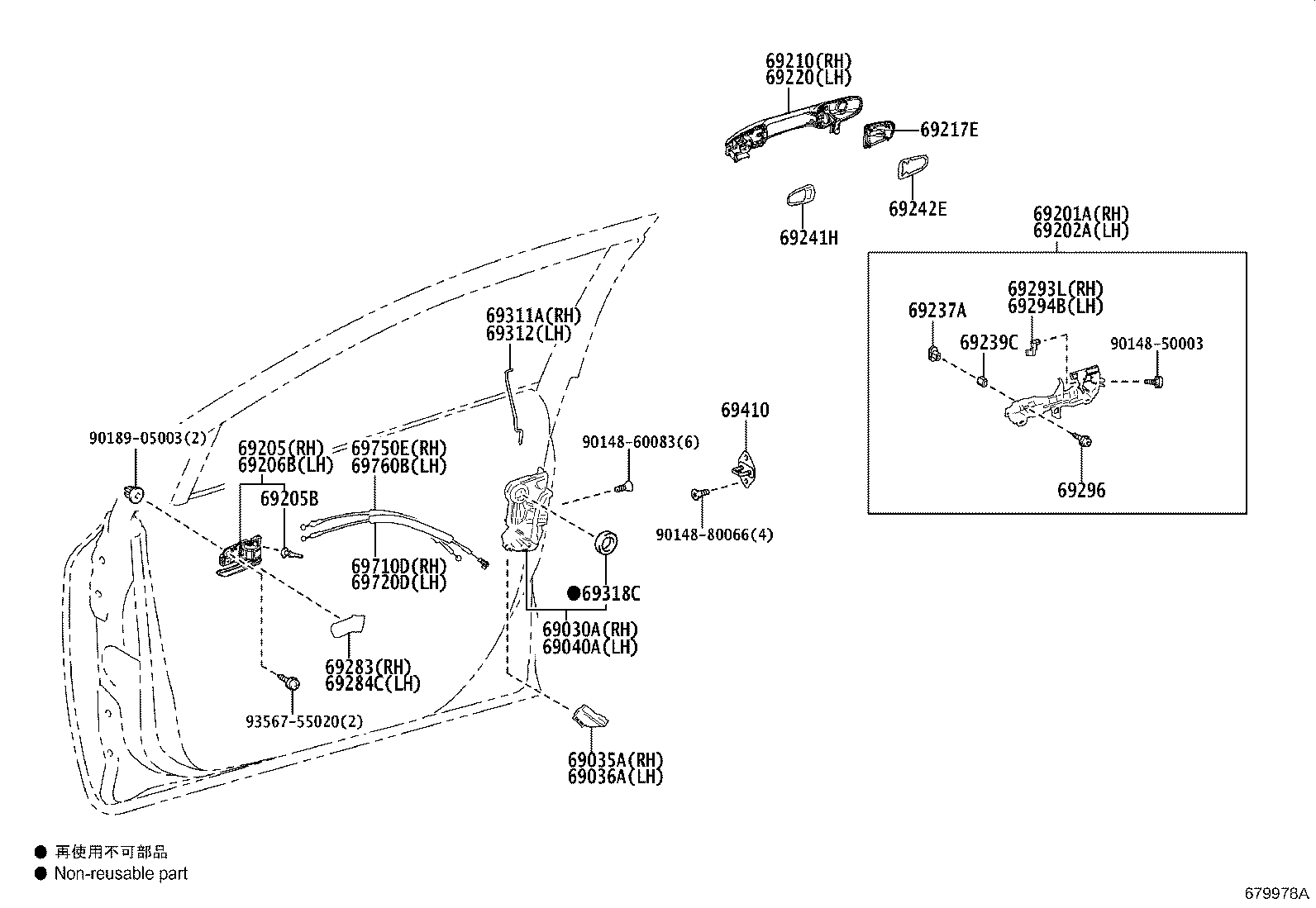

Click highlighted areas on diagram

diagram 69030A 69035A 69036A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217E 69220 69237A 69239C 69241H 69242E 69283 69284C 69293L 69294B 69296 69311A 69312 69318C 69410 69710D 69720D 69750E 69760B 9014850003 9014860083 9014880066 9018905003 9356755020
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-53120

MZEA12

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-30010

MZEA12

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-30010

MZEA12

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-53130

MZEA12

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-47070

MZEA12

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-47040

MZEA12

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-12250B1

MZEA12

COOL GRAY,TRIM1#

 1
69205-12250C0

MZEA12

BLACK,TRIM2#,3#,4#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

MZEA12

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-12250B1

MZEA12

COOL GRAY,TRIM1#

 1
69206-12250C0

MZEA12

BLACK,TRIM2#,3#,4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-47051A1

MZEA12

WHITE PEARL CS.,070 ,2QJ

 1
69210-47051D4

MZEA12

EMOTIONAL RED 2,2SC ,3U5

 1
69210-47051A0

MZEA12

SUPER WHITE 2,040

 1
69210-47051G3

MZEA12

OXIDE BRONZE ME.,2UD ,6X1

 1
69210-47051D3

MZEA12

SCARLET ME.,2UG ,3U4

 1
69210-47051C0

MZEA12..6F

ATTITUDE BLACK MC.,218

 1
69210-47051B0

MZEA12

SILVER ME.,1F7 ,2UF

 1
69210-47051A2

MZEA12

PLATINUM WHITE PEARL MC.,089 ,2PS

 1
69210-47051J5

MZEA12

CYAN METALLIC,2UH ,8W9

 1
69210-47051C1

MZEA12

BLACKISH AGEHA GF.,221

 1
69210-47051B1

MZEA12

GRAY ME.,1G3 ,2QZ

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-47020

MZEA12

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-47041G3

MZEA12

OXIDE BRONZE ME.,2UD ,6X1

 1
69210-47041D3

MZEA12

SCARLET ME.,2UG ,3U4

 1
69210-47041A0

MZEA12

SUPER WHITE 2,040

 1
69210-47041C0

MZEA12..6F

ATTITUDE BLACK MC.,218

 1
69210-47041J5

MZEA12

CYAN METALLIC,2UH ,8W9

 1
69210-47041A1

MZEA12

WHITE PEARL CS.,070 ,2QJ

 1
69210-47041A2

MZEA12

PLATINUM WHITE PEARL MC.,089 ,2PS

 1
69210-47041D4

MZEA12

EMOTIONAL RED 2,2SC ,3U5

 1
69210-47041B1

MZEA12

GRAY ME.,1G3 ,2QZ

 1
69210-47041C1

MZEA12

BLACKISH AGEHA GF.,221

 1
69210-47041B0

MZEA12

SILVER ME.,1F7 ,2UF

 1
69237A - NUT, FRONT DOOR HANDLE
69237-62010

MZEA12

 2
69239C - BUSH, FRONT DOOR HANDLE
69239-47010

MZEA12

 2
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-47020

MZEA12

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-47030

MZEA12

 2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
74037-12020C0

MZEA12

BLACK,TRIM2#,3#,4#

 1
74037-12020B0

MZEA12

COOL GRAY,TRIM1#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
74038-12020C0

MZEA12

BLACK,TRIM2#,3#,4#

 1
74038-12020B0

MZEA12

COOL GRAY,TRIM1#

 1
69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

MZEA12

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

MZEA12

 1
69296 - SCREW, DOOR INSIDE HANDLE
69296-30010

MZEA12

 2
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-12220

MZEA12

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-12220

MZEA12

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

MZEA12

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110

MZEA12

 2
69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE
69710-12190

MZEA12

 1
69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE
69710-12190

MZEA12

 1
69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK
69750-12220

MZEA12

 1
69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK
69750-12220

MZEA12

 1
Common parts
90148-50003
90148-60083
90148-80066
90189-05003
93567-55020
