AE82L-EGPQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

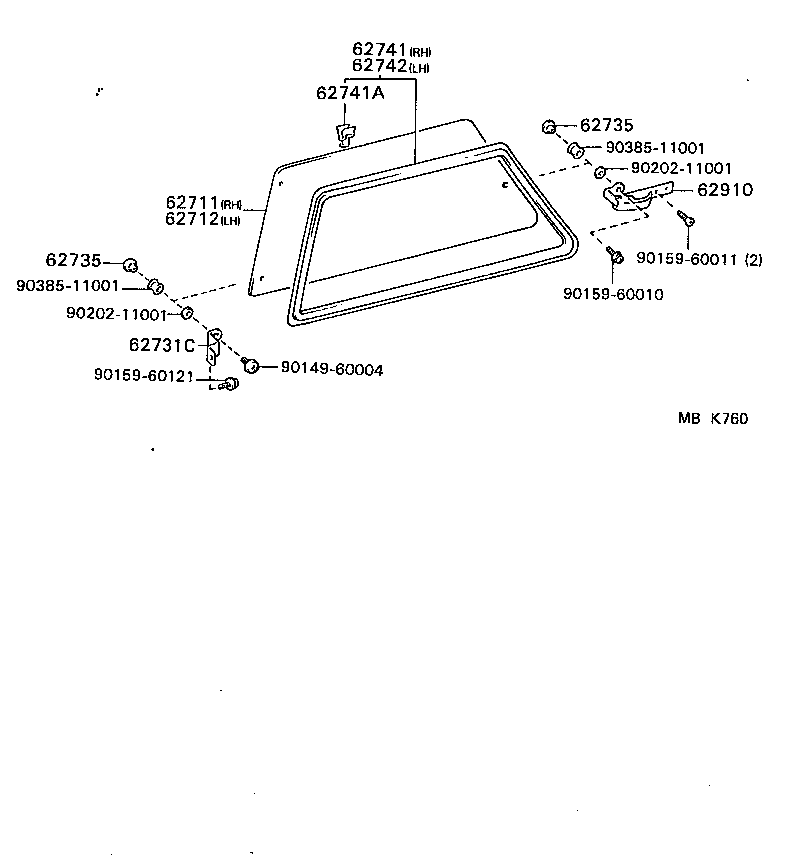

Click highlighted areas on diagram

diagram 62711 62712 62731C 62735 62735 62741 62741A 62742 62910 9014960004 9015960010 9015960011 9015960121 9020211001 9020211001 9038511001 9038511001
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-02010

AE82

*TT,T=4.0,*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-02010

AE82

*TT,T=4.0,*TT,T=4.0

 1
62731C - HINGE, QUARTER WINDOW, RH
62731-12080

AE82

 4
62735 - RETAINER, QUARTER WINDOW HINGE
62735-14010

AE82

 6
62735 - RETAINER, QUARTER WINDOW HINGE
62735-14010

AE82

 6
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-02010

AE82

 1
62741A - CLIP, QUARTER WINDOW WEATHERSTRIP
62759-12010

AE82

 8
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-02010

AE82

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-12080

AE82

 2
Common parts
90149-60004
90159-60010
90159-60011
90159-60121
90202-11001
90385-11001
