AE82L-EGPQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )D,Q

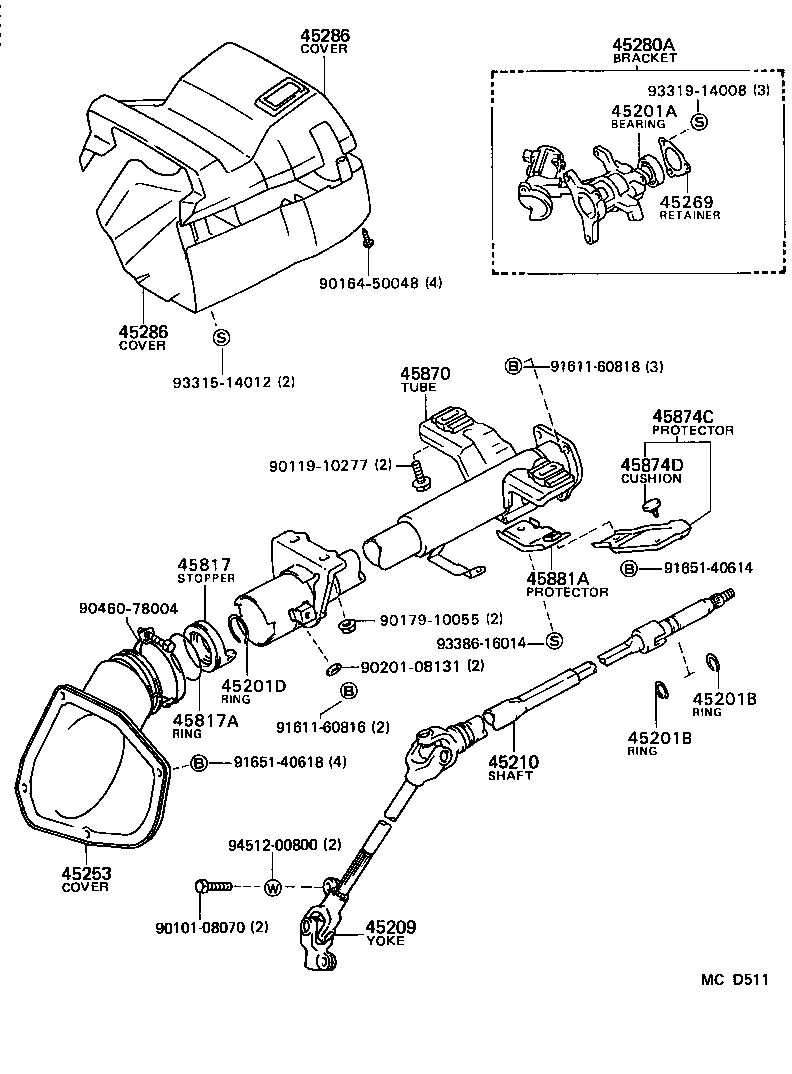

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AE82 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE82 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE82 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AE82 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AE82 T=1.35-1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AE82 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32020 |
AE82 W/POWER STEERING |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-12230 |
AE82 W/POWER STEERING |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12160 |
AE82 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
AE82 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-12052 |
AE82 |
1 | ||
| 45280-12050 |
AE82 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-01010J9 |
AE82..D,Q LWR,BLUE,DARK BLUE |
1 | ||
| 45286-01020J9 |
AE82 UPR,BLUE,DARK BLUE |
1 | ||
| 45286-01020P8 |
AE82 UPR,CHARCOAL,CHARCOAL |
1 | ||
| 45287-01010P8 |
AE82..D,Q LWR,CHARCOAL,CHARCOAL |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-01010J9 |
AE82..D,Q LWR,BLUE,DARK BLUE |
1 | ||
| 45286-01020J9 |
AE82 UPR,BLUE,DARK BLUE |
1 | ||
| 45286-01020P8 |
AE82 UPR,CHARCOAL,CHARCOAL |
1 | ||
| 45287-01010P8 |
AE82..D,Q LWR,CHARCOAL,CHARCOAL |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-20020 |
AE82 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 90301-54002 |
AE82 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-12190 |
AE82..D,Q |
1 | ||
| 45874C - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45802-02010 |
AE82..D,Q W/POWER STEERING |
1 | ||
| 45874D - CUSHION(FOR STEERING COLUMN PROTECTOR) | ||||
| 90081-54001 |
AE82..D,Q W/POWER STEERING |
1 | ||
| 45881A - PROTECTOR, STEERING COLUMN, NO.2 | ||||
| 45881-02010 |
AE82..D,Q W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90201-08131 | ||||
| 90460-78004 | ||||
| 91611-60816 | ||||
| 91611-60818 | ||||
| 91651-40614 | ||||
| 91651-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 93386-16014 | ||||
| 94512-00800 | ||||
