AE82L-EGPQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )4AGELC

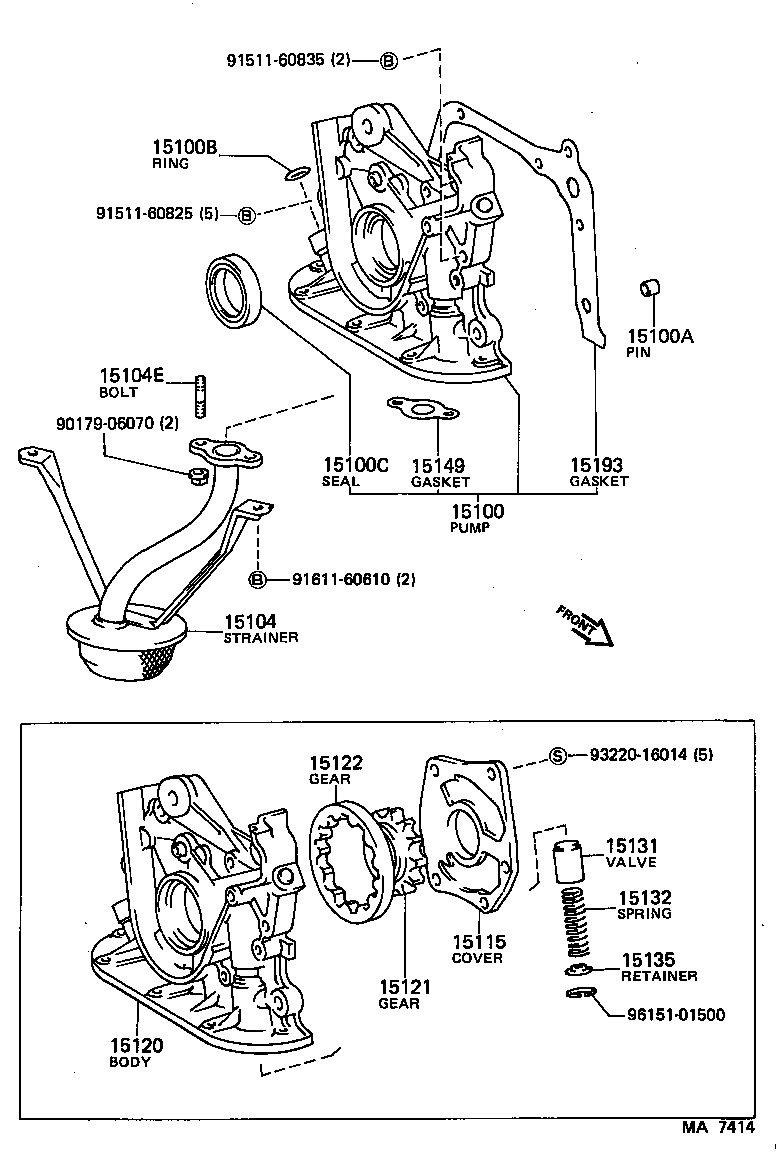

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15104 15104E 15115 15120 15121 15122 15131 15132 15135 15149 15193 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-19025

4AGELC..AE82

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

4A#..AE82

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

4A#..AE82

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

4A#..AE82

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

4A#..AE82

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06049

4A#..AE82

 2
90116-06022

4A#..AE82

 2
15115 - COVER, OIL PUMP
15115-16010

4AGELC..AE82

 1
15120 - BODY SUB-ASSY, OIL PUMP
15120-16010

4AGELC..AE82

 1
15121 - GEAR, OIL PUMP DRIVE
15121-16010

4AGELC..AE82

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-16010

4AGELC..AE82

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

4AGELC..AE82

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

4AGELC..AE82

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

4AGELC..AE82

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

4A#..AE82

 1
15193 - GASKET, OIL PUMP
15197-15011

4A#..AE82

 1
Common parts
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500
