AE82L-EGMVFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

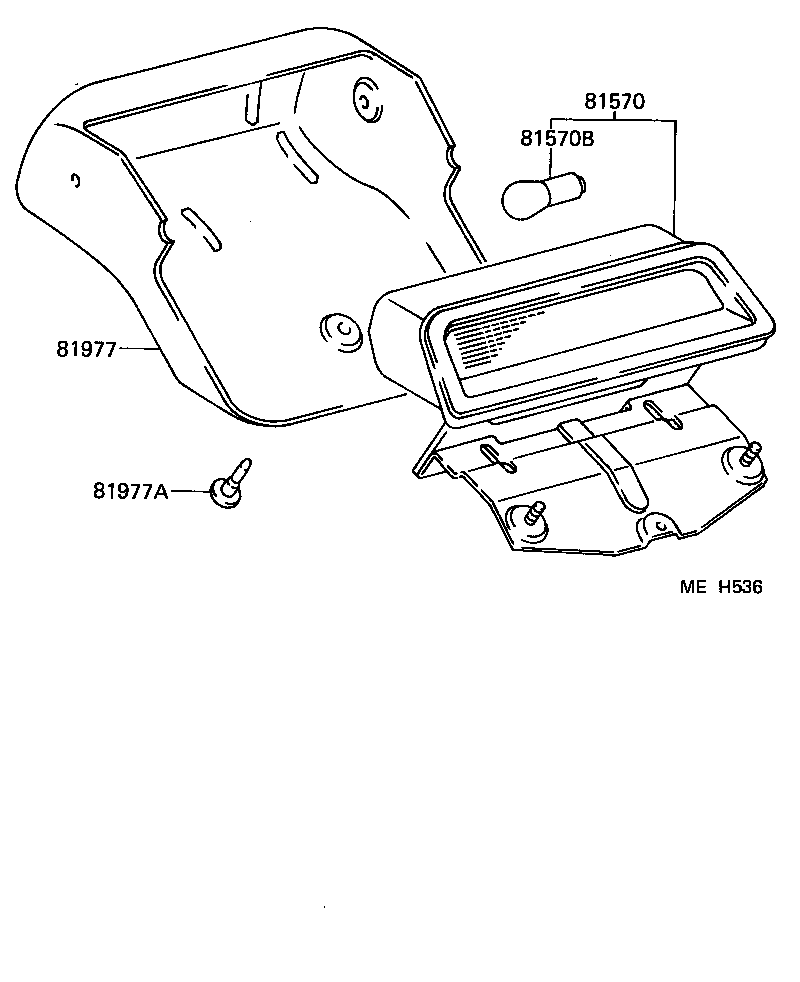

Click highlighted areas on diagram

diagram 81570 81570B 81977 81977A
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-02010

AE82

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

AE82

12V 27W,12V 27W

 1
81977 - COVER, CENTER STOP LAMP
81977-02010J9

AE82

DARK BLUE,DARK BLUE

 1
81977-02010P8

AE82

CHARCOAL,CHARCOAL

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-07055J9

AE82

DARK BLUE,DARK BLUE

 3
90467-07055P8

AE82

CHARCOAL,CHARCOAL

 3
