Toyota Corolla fx AE82 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-02010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	1
69205-02010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-02010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	1
69206-02010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-01020D4	AE82 BLACK,BLACK	09/1986 - 08/1988	1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021	AE82	09/1986 - 08/1988	4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-01020D4	AE82 BLACK,BLACK	09/1986 - 08/1988	1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69289-12010	AE82	09/1986 - 08/1988	2
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-20070	AE82 RH	09/1986 - 08/1988	1
69759-20060	AE82 LH	09/1986 - 08/1988	1
69273C - SNAP, DOOR INSIDE HANDLE LINK
69759-20060	AE82 RH	09/1986 - 08/1988	1
69759-20070	AE82 LH	09/1986 - 08/1988	1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-02010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	2
69277-02010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12030	AE82 RH	09/1986 - 08/1988	1
69293-12040	AE82 LH	09/1986 - 08/1988	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-02021	AE82..GTS W/*EL	09/1987 - 08/1988	1
69310-02011	AE82	09/1987 - 08/1988	1
69310-02020	AE82..GTS W/*EL	09/1986 - 09/1987	1
69310-02010	AE82	09/1986 - 09/1987	1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-02021	AE82..GTS W/*EL	09/1987 - 08/1988	1
69310-02011	AE82	09/1987 - 08/1988	1
69310-02020	AE82..GTS W/*EL	09/1986 - 09/1987	1
69310-02010	AE82	09/1986 - 09/1987	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-02010	AE82	09/1986 - 09/1987	1
69320-02021	AE82..GTS W/*EL	09/1987 - 08/1988	1
69320-02011	AE82	09/1987 - 08/1988	1
69320-02020	AE82..GTS W/*EL	09/1986 - 09/1987	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-02010	AE82	09/1986 - 09/1987	1
69320-02021	AE82..GTS W/*EL	09/1987 - 08/1988	1
69320-02011	AE82	09/1987 - 08/1988	1
69320-02020	AE82..GTS W/*EL	09/1986 - 09/1987	1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20020	AE82 TYPE A,LH	09/1986 - 08/1988	2
69759-20050	AE82 TYPE B,RH	09/1986 - 08/1988	1
69759-20030	AE82 TYPE A,RH	09/1986 - 08/1988	2
69759-20100	AE82 TYPE C,RH	09/1986 - 08/1988	2
69759-20040	AE82 TYPE B,LH	09/1986 - 08/1988	1
69759-20110	AE82 TYPE C,LH	09/1986 - 08/1988	2
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20020	AE82 TYPE A,LH	09/1986 - 08/1988	2
69759-20050	AE82 TYPE B,RH	09/1986 - 08/1988	1
69759-20030	AE82 TYPE A,RH	09/1986 - 08/1988	2
69759-20100	AE82 TYPE C,RH	09/1986 - 08/1988	2
69759-20040	AE82 TYPE B,LH	09/1986 - 08/1988	1
69759-20110	AE82 TYPE C,LH	09/1986 - 08/1988	2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001	AE82	09/1986 - 08/1988	2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-12090	AE82	09/1986 - 08/1988	1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-12100	AE82	09/1986 - 08/1988	1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69750-02011	AE82	09/1986 - 08/1988	1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69760-02011	AE82	09/1986 - 08/1988	1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12040	AE82	09/1986 - 08/1988	2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-14010	AE82	09/1986 - 08/1988	2
Common parts
90159-60081
90159-60268
90159-60329
90159-80014
90167-20001
90189-06043
90463-12570
91651-40610
91651-40612
93316-16012
93530-54010

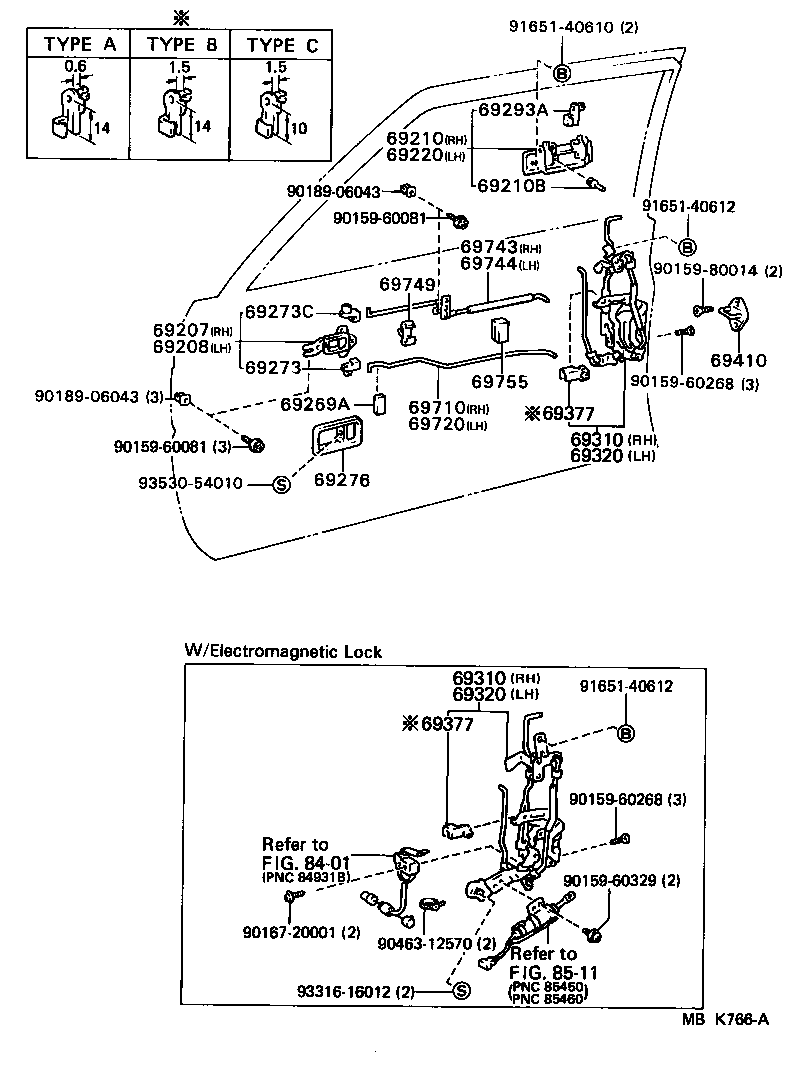

Linked diagrams
8401
8511

AE82L-EGMVFA (1986)

(8609- )
