AE82L-EGMVFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

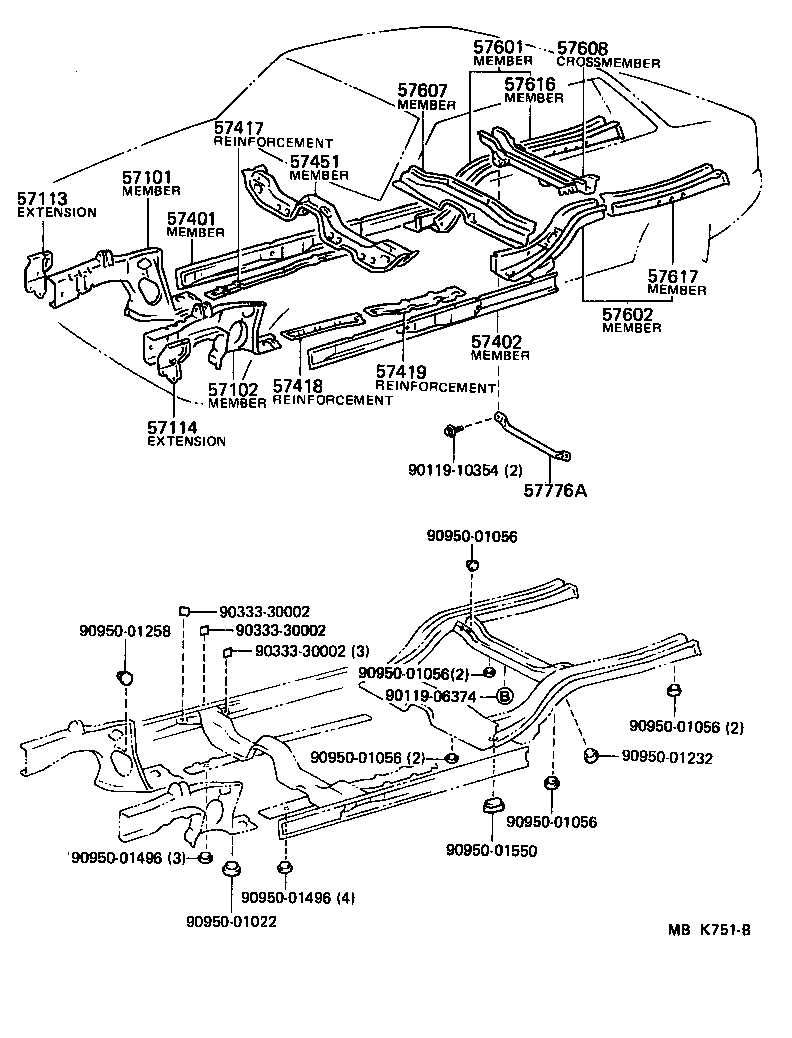

Click highlighted areas on diagram

diagram 57101 57102 57113 57114 57401 57402 57417 57418 57419 57451 57601 57602 57607 57608 57616 57617 57776A 9011906374 9011910354 9033330002 9033330002 9033330002 9095001022 9095001056 9095001056 9095001056 9095001056 9095001056 9095001232 9095001258 9095001496 9095001496 9095001550
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-02011

AE82..GTS,Q

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-02010

AE82..GTS,Q

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57105-01011

AE82

 1
57105-12030

AE82

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57106-12030

AE82

 1
57106-01011

AE82

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-02010

AE82

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-02010

AE82

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-12070

AE82

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-20040

AE82

 1
57419 - REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419-12020

AE82

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-01010

AE82

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-02010

AE82

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-02010

AE82

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-12060

AE82

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-12070

AE82

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-02900

AE82

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-02900

AE82

 1
57776A - BRACE, REAR LOWER ARM BRACKET
57776-12010

AE82..GTS,Q

 1
Common parts
90119-06374
90119-10354
90333-30002
90950-01022
90950-01056
90950-01232
90950-01258
90950-01496
90950-01550
