AE82L-EGMVFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )4AGELC

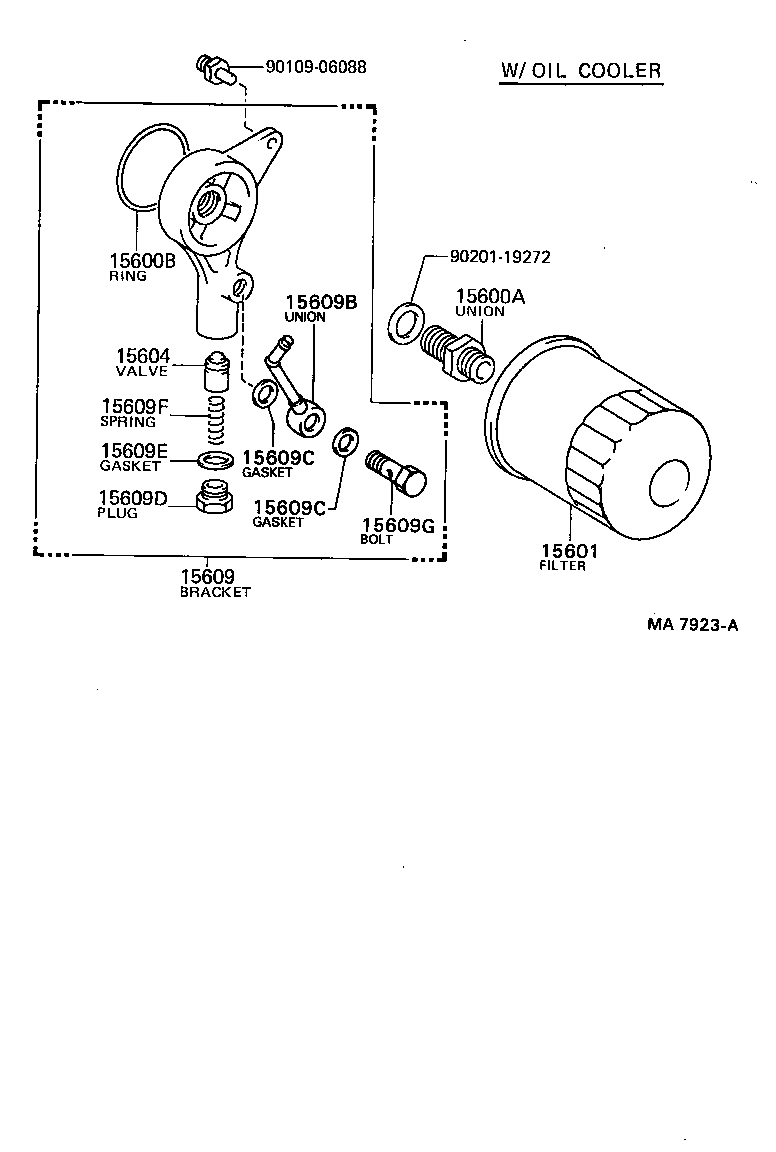

Click highlighted areas on diagram

diagram 15600A 15600B 15601 15604 15609 15609B 15609C 15609C 15609D 15609E 15609F 15609G 9010906088 9020119272
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90405-19003

4AGELC..AE82

 1
15600B - RING, O, NO.1(FOR OIL FILTER)
96732-31060

4AGELC..AE82

 1
15601 - FILTER SUB-ASSY, OIL
15601-13011

4AGELC..AE82

 1
90915-03004

4AGELC..AE82

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-38030

4AGELC..AE82

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15670-16030

4AGELC..AE82

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90029-40004

4AGELC..AE82

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-14235

4AGELC..AE82

 2
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90430-14235

4AGELC..AE82

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
15133-20010

4AGELC..AE82

 1
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
15134-20010

4AGELC..AE82

 1
15609F - SPRING(FOR OIL FILTER BRACKET)
15132-21010

4AGELC..AE82

 1
15609G - BOLT, UNION(FOR OIL FILTER BRACKET)
90401-14003

4AGELC..AE82

 1
Common parts
90109-06088
90201-19272
