AE82L-EGMVFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988

Engine 4AGELC

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

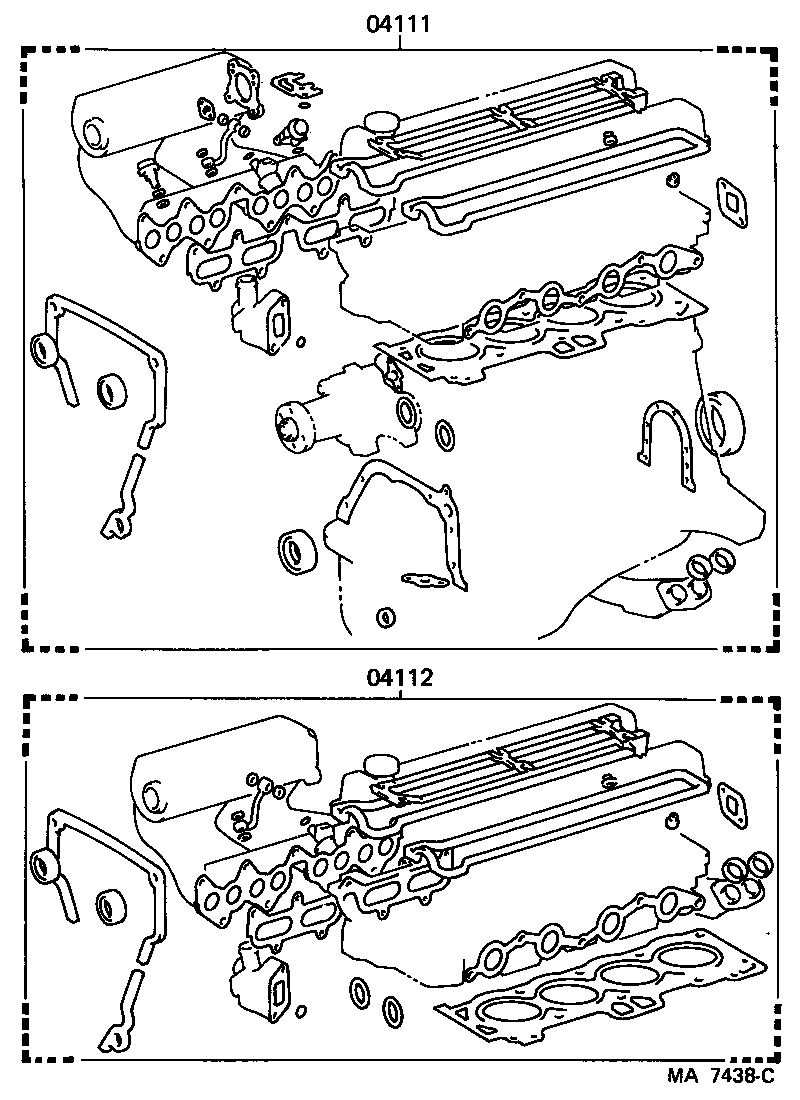

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-16073	4AGELC..AE82	05/1987 - 08/1987	1
04111-16072	4AGELC..AE82	09/1986 - 05/1987	1
04111-16074	4AGELC..AE82	08/1987 - 09/1987	1
04111-02011	4AGELC..AE82	09/1987 - 08/1988	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-16072	4AGELC..AE82	09/1986 - 08/1987	1
04112-16024	4AGELC..AE82	08/1987 - 09/1987	1
04112-02011	4AGELC..AE82	09/1987 - 08/1988	1
