AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

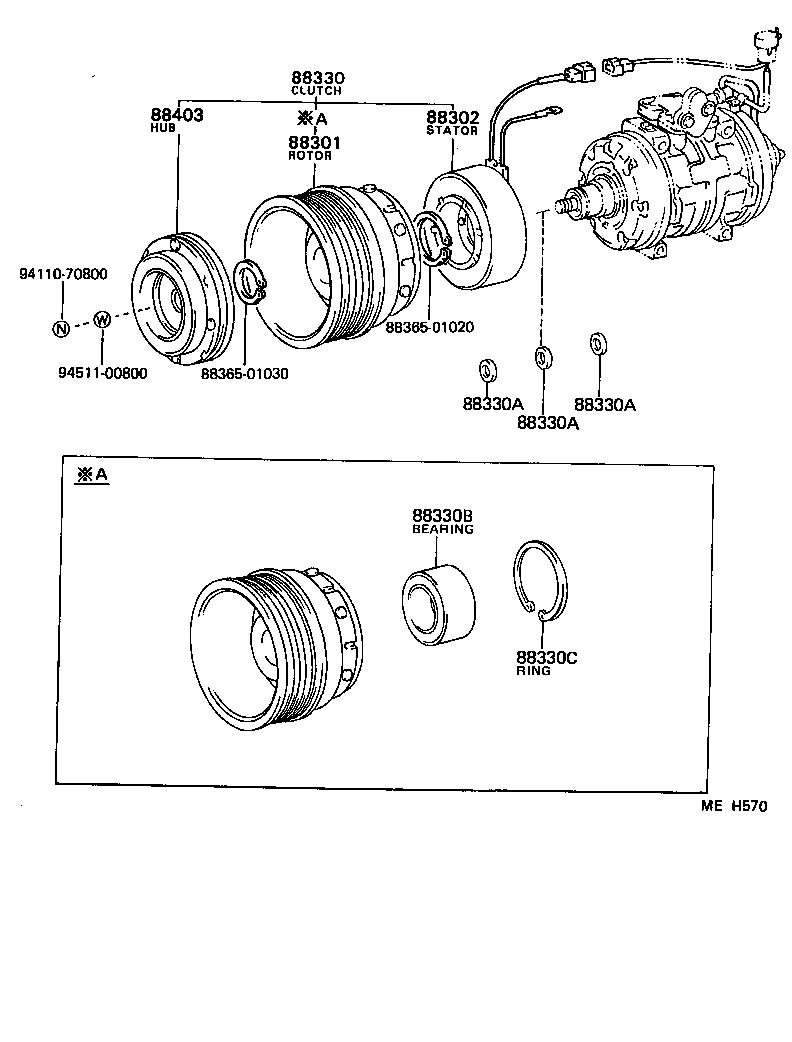

| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-02010 |
AE82..GTS,Q |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-02010 |
AE82..GTS,Q |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-02010 |
AE82..GTS,Q |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90080-20003 |
AE82 T=0.5 |
1 | ||
| 90080-20005 |
AE82 T=0.2 |
1 | ||
| 90080-20004 |
AE82 T=0.1 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90080-20003 |
AE82 T=0.5 |
1 | ||
| 90080-20005 |
AE82 T=0.2 |
1 | ||
| 90080-20004 |
AE82 T=0.1 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90080-20003 |
AE82 T=0.5 |
1 | ||
| 90080-20005 |
AE82 T=0.2 |
1 | ||
| 90080-20004 |
AE82 T=0.1 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 88366-01011 |
AE82 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 88365-02010 |
AE82..GTS,Q |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-02010 |
AE82..GTS,Q |
1 | ||
| Common parts | ||||
| 88365-01020 | ||||
| 88365-01030 | ||||
| 94110-70800 | ||||
| 94511-00800 | ||||
(8609- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

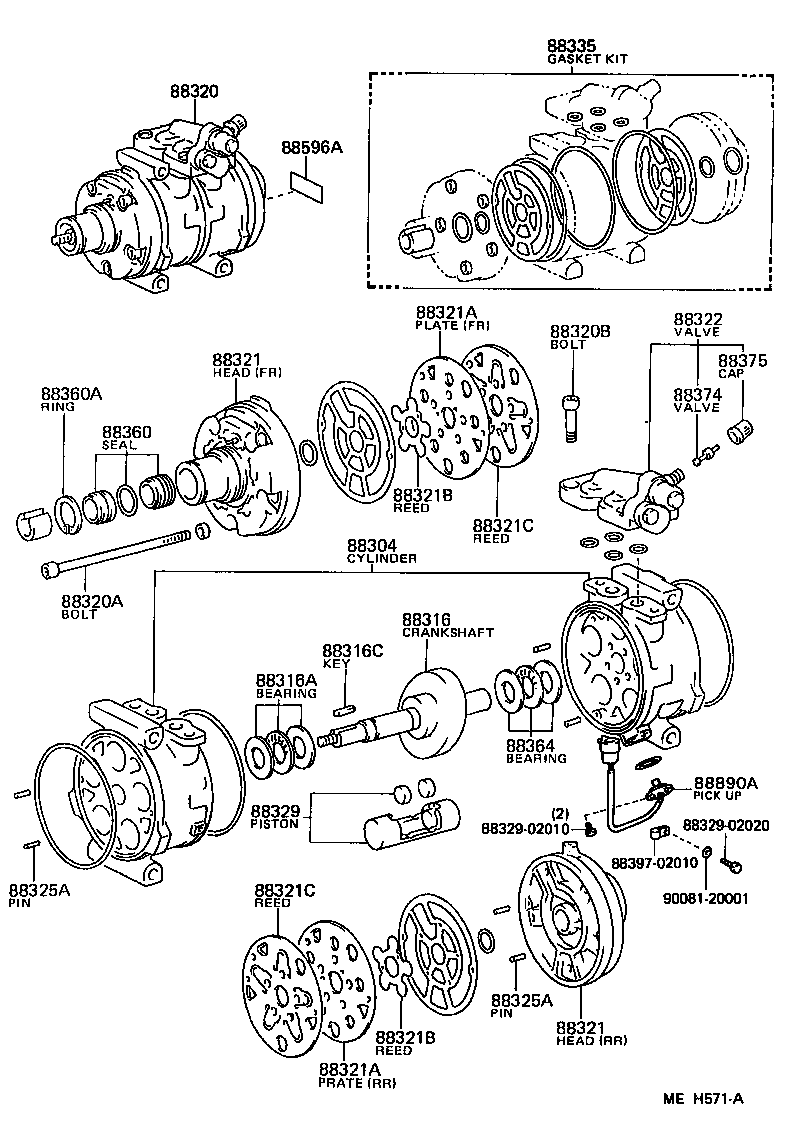

| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-02010 |
AE82..GTS,Q |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-02010 |
AE82..GTS,Q |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-01020 |
AE82 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 88327-01010 |
AE82 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-02020 |
AE82..GTS,Q |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-01011 |
AE82 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 88329-01021 |
AE82 |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-01010 |
AE82 FR |
1 | ||
| 88322-01010 |
AE82 RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-01010 |
AE82 FR |
1 | ||
| 88322-01010 |
AE82 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-01010 |
AE82 FR |
1 | ||
| 88342-01010 |
AE82 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-01010 |
AE82 FR |
1 | ||
| 88342-01010 |
AE82 RR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-01010 |
AE82 |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-01010 |
AE82 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-01010 |
AE82 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-01010 |
AE82 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-02010 |
AE82..GTS,Q |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 88328-01010 |
AE82 |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 88328-01010 |
AE82 |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-01011 |
AE82 |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-02010 |
AE82..GTS,Q |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-01010 |
AE82 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 88365-01040 |
AE82 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-01020 |
AE82 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-01010 |
AE82 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-01010 |
AE82 |
1 | ||
| 88596A - PLATE, CAUTION | ||||
| 88596-01010 |
AE82 |
1 | ||
| 88356-02010 |
AE82 |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88336-02010 |
AE82..GTS,Q |
1 | ||
| Common parts | ||||
| 88329-02010 | ||||
| 88329-02020 | ||||
| 88397-02010 | ||||
| 90081-20001 | ||||
(8609- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

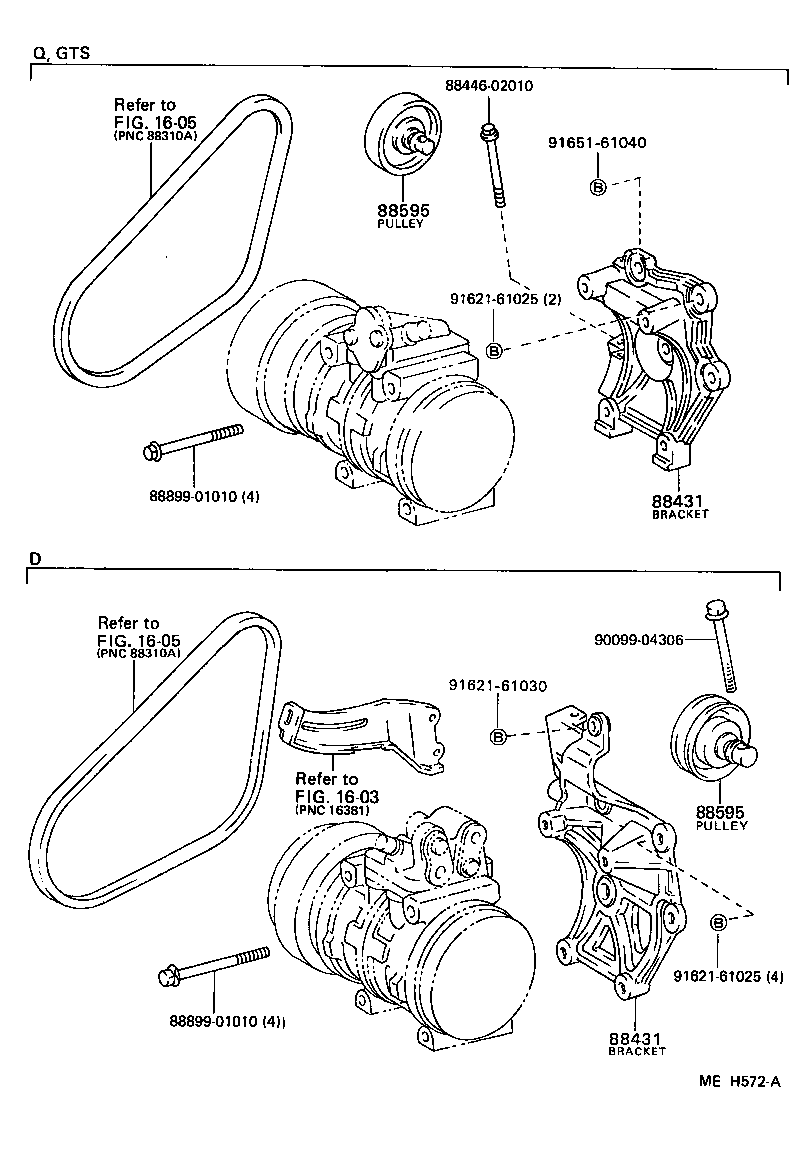

| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-02010 |
AE82..GTS,Q |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-02010 |
AE82..GTS,Q |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-02010 |
AE82..GTS,Q |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-02010 |
AE82..GTS,Q |
1 | ||
| Common parts | ||||
| 88446-02010 | ||||
| 88899-01010 | ||||
| 90099-04306 | ||||
| 91621-61025 | ||||
| 91621-61030 | ||||
| 91651-61040 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1605 | ||||
