AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )GTS,Q

Click highlighted areas on diagram

diagram 88453 88454A 88460 8846701020 8846701020 8846701030 8846701040 8846702010 8846901010 8846901010 8846901010 8846901010 8846901020 88470 88472 88550 88590 88590 88596B 88596C 8868802020 8868802050 8868802060 88716A 8889401010 9011906029 9011906100 9011906100 9011906100 9011906100 9165140614 9165640630
Part # Description Qty Price

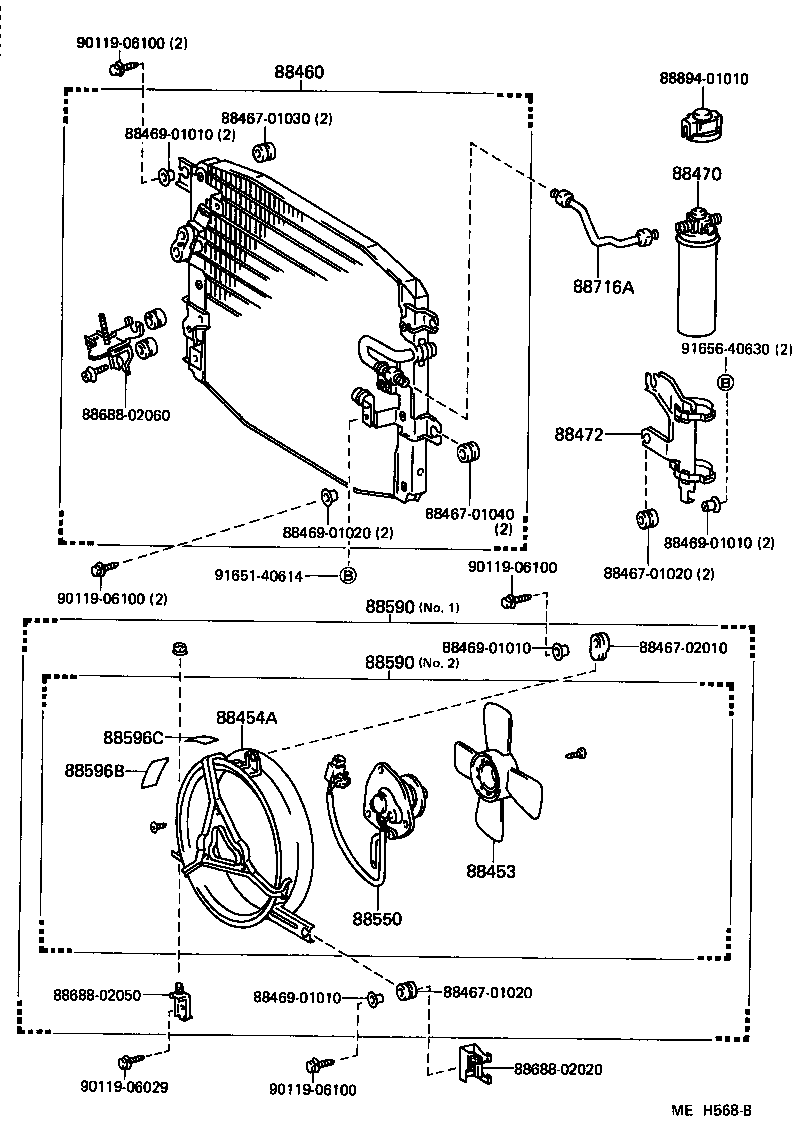

88453 - FAN, COOLING (FOR CONDENSER)
88453-02010

AE82..GTS,Q

 1
88454A - SHROUD, FAN
88454-02010

AE82..GTS,Q

 1
88460 - CONDENSER ASSY, COOLER
88460-02010

AE82..GTS,Q

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-01010

AE82

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-01010

AE82

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-01011

AE82

 1
88590 - BLOWER ASSY, W/SHROUD
88590-02020

AE82..GTS,Q

NO.2

 1
88590-02010

AE82..GTS,Q

NO.1

 1
88590 - BLOWER ASSY, W/SHROUD
88590-02020

AE82..GTS,Q

NO.2

 1
88590-02010

AE82..GTS,Q

NO.1

 1
88596B - PLATE, CAUTION, NO.1
88596-02010

AE82

 1
88596C - PLATE, CAUTION, NO.2
88723-02010

AE82

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-01060

AE82..GTS,Q

 1
Common parts
88467-01020
88467-01030
88467-01040
88467-02010
88469-01010
88469-01020
88688-02020
88688-02050
88688-02060
88894-01010
90119-06029
90119-06100
91651-40614
91656-40630

(8609- )GTS,Q

Click highlighted areas on diagram

diagram 88375A 8846702020 8846702020 88645H 8868802030 88705 88707 88707 88707 88711 88712 88715A 88716B 88716B 88716C 88716E 88717A 88717B 88717C 88717D 88717E 88717P 8871802010 8871802020 8871802021 8871802030 8871802040 8871802050 8871802060 8871802070 9017906070 9017906115 9017908035 9165140612 9165140614 9165140614 9165140614 9165140614 9165160835 9165160835 9165160845
Part # Description Qty Price

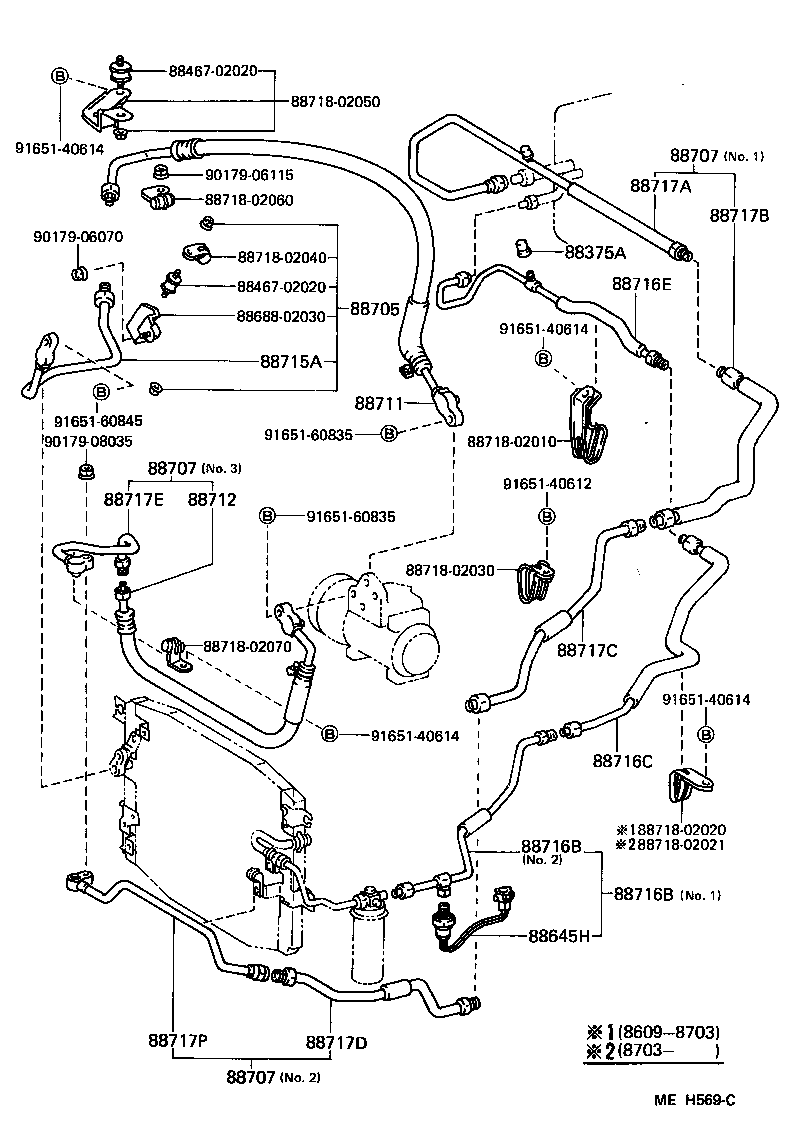

88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-01010

AE82

 1
88375-01020

AE82

 1
88645H - SWITCH, PRESSURE NO.1
88645-01021

AE82

 1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-02010

AE82..GTS,Q

 1
88707 - PIPE SUB-ASSY, SUCTION
88704-02010

AE82..GTS,Q

NO.3

 1
88707-02010

AE82..GTS,Q

NO.1

 1
88707-02020

AE82..GTS,Q

NO.2

 1
88707 - PIPE SUB-ASSY, SUCTION
88704-02010

AE82..GTS,Q

NO.3

 1
88707-02010

AE82..GTS,Q

NO.1

 1
88707-02020

AE82..GTS,Q

NO.2

 1
88707 - PIPE SUB-ASSY, SUCTION
88704-02010

AE82..GTS,Q

NO.3

 1
88707-02010

AE82..GTS,Q

NO.1

 1
88707-02020

AE82..GTS,Q

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-02010

AE82..GTS,Q

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02010

AE82..GTS,Q

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-02010

AE82..GTS,Q

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02020

AE82..GTS,Q

NO.1

 1
88716-02030

AE82..GTS,Q

NO.2

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02020

AE82..GTS,Q

NO.1

 1
88716-02030

AE82..GTS,Q

NO.2

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-02040

AE82..GTS,Q

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-02010

AE82..GTS,Q

 1
88716-02011

AE82..GTS,Q

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02010

AE82..GTS,Q

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-02020

AE82..GTS,Q

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-02060

AE82..GTS,Q

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-02040

AE82..GTS,Q

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-02050

AE82..GTS,Q

 1
88717P - PIPE, COOLER REFRIGERANT SUCTION, P
88717-02030

AE82..GTS,Q

 1
Common parts
88467-02020
88688-02030
88718-02010
88718-02020
88718-02021
88718-02030
88718-02040
88718-02050
88718-02060
88718-02070
90179-06070
90179-06115
90179-08035
91651-40612
91651-40614
91651-60835
91651-60845
