AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

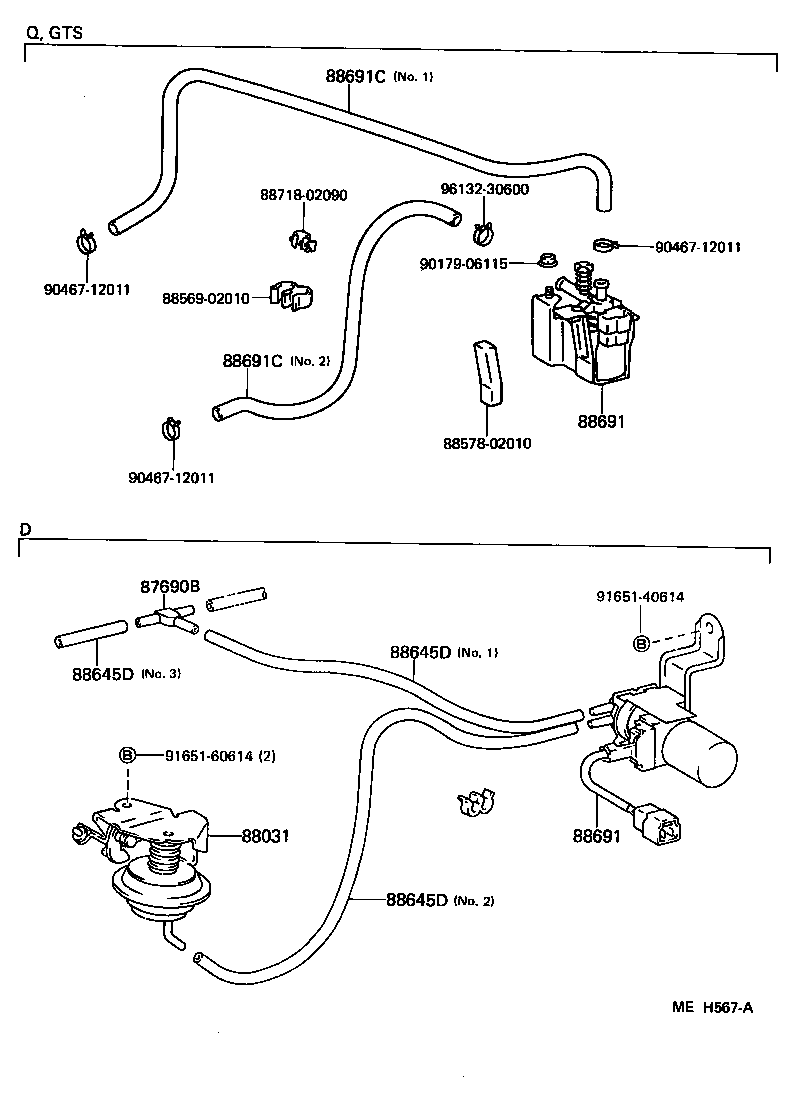

Click highlighted areas on diagram

diagram 87690B 88031 8856902010 8857802010 88645D 88645D 88645D 88691 88691 88691C 88691C 8871802090 9017906115 9046712011 9046712011 9046712011 9165140614 9165160614 9613230600
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-02010

AE82..GTS,Q

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-02010

AE82..GTS,Q

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-02010

AE82..GTS,Q

NO.2

 1
88689-02020

AE82..GTS,Q

NO.1

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-02010

AE82..GTS,Q

NO.2

 1
88689-02020

AE82..GTS,Q

NO.1

 1
Common parts
88569-02010
88578-02010
88718-02090
90179-06115
90467-12011
91651-40614
91651-60614
96132-30600
