AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 8302 8401 9018305103 9048013015 9356755014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-01010D0

AE82

BLACK,BLACK

 4
55905A - KNOB, HEATER CONTROL
55905-01010D0

AE82

BLACK,BLACK

 4
55905A - KNOB, HEATER CONTROL
55905-01010D0

AE82

BLACK,BLACK

 4
55905A - KNOB, HEATER CONTROL
55905-01010D0

AE82

BLACK,BLACK

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12190

AE82

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12250

AE82

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12170

AE82

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12150

AE82

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-01010D0

AE82

BLACK,BLACK

 1
Common parts
90183-05103
90480-13015
93567-55014
Linked diagrams
8302
8401

(8609- )

Click highlighted areas on diagram

diagram 87211 87211A 87211B 87211C 87214 87214A 87215 8857812160 8857812160 9015960125 9017906054 9018305094 9356755014 9356815012 9356855014 9356855014 9356855014
Part # Description Qty Price

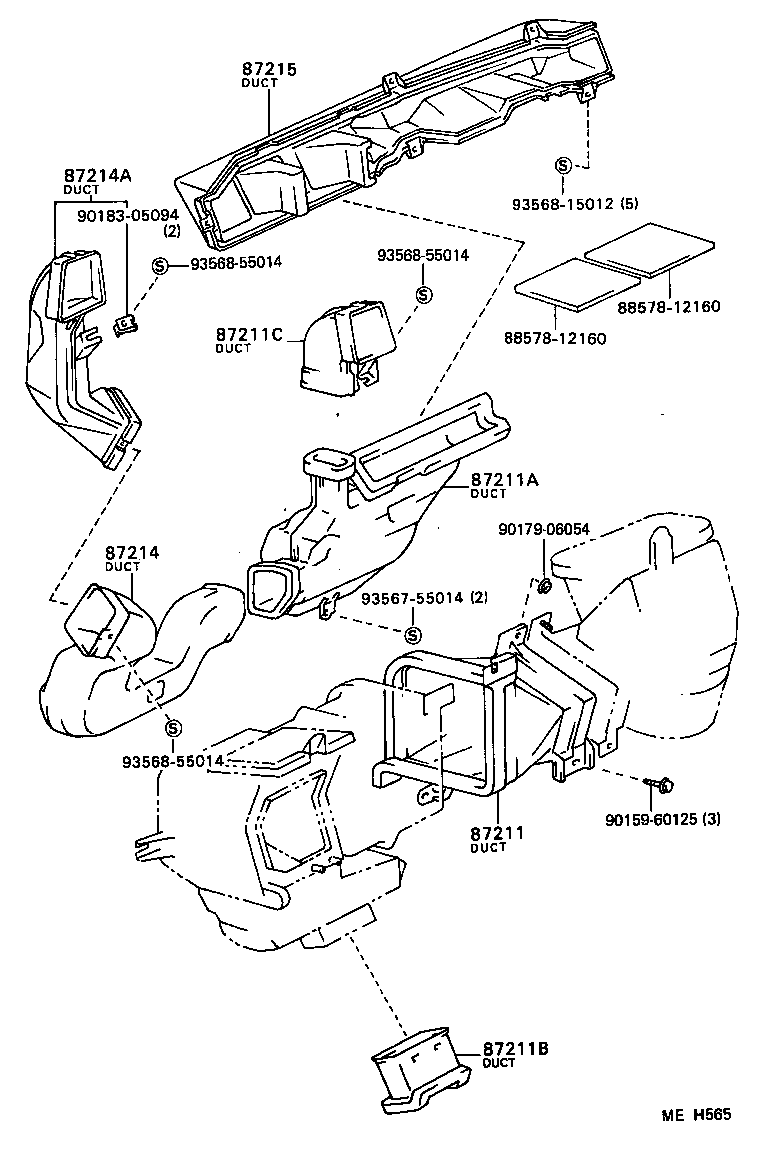

87211 - DUCT, AIR, NO.1
87201-12080

AE82

 1
87211A - DUCT, AIR, NO.2
87201-12050

AE82

 1
87211B - DUCT, AIR, NO.3
87211-12110

AE82

 1
87211C - DUCT, AIR, NO.4
55086-12131

AE82

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55844-01020

AE82

W/AIR CONDITIONER

 1
55844-01010

AE82

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55084-12101

AE82

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55087-12080

AE82

 1
Common parts
88578-12160
90159-60125
90179-06054
90183-05094
93567-55014
93568-15012
93568-55014
