AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )GTS,Q

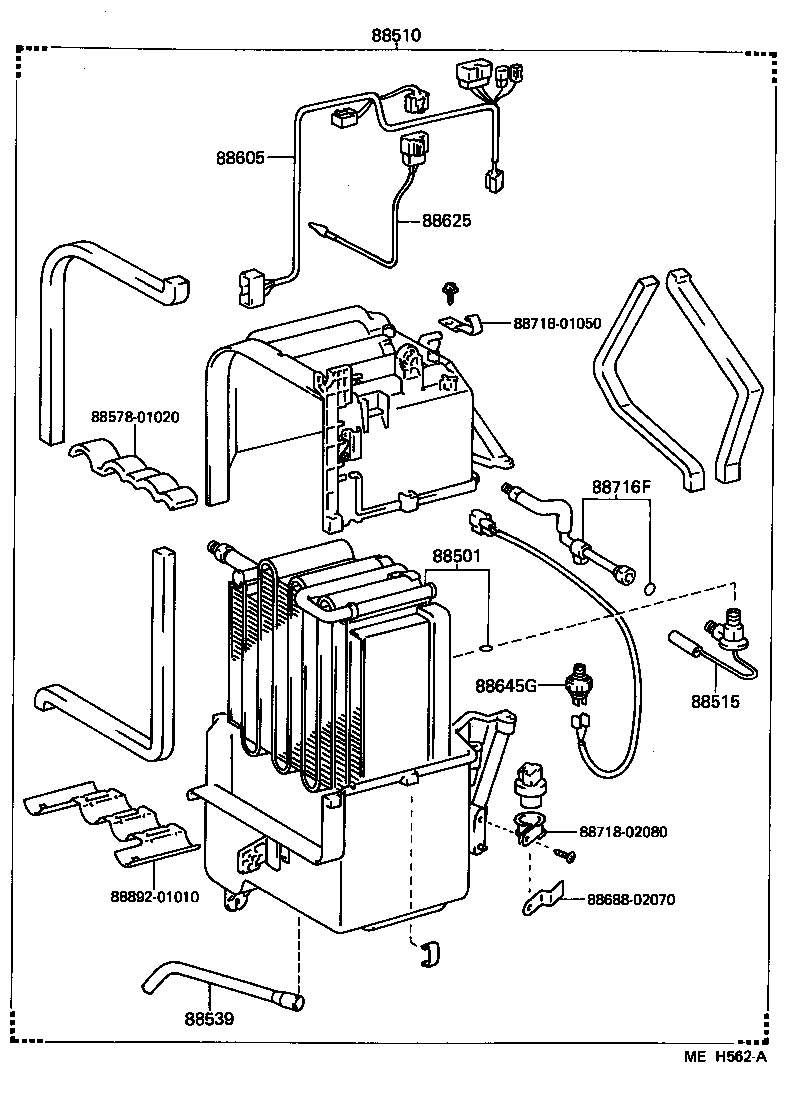

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-01011 |
AE82 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-02020 |
AE82..GTS,Q |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-01010 |
AE82 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-01010 |
AE82 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-02020 |
AE82..GTS,Q |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-01011 |
AE82 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-01010 |
AE82 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-01040 |
AE82 |
1 | ||
| Common parts | ||||
| 88578-01020 | ||||
| 88688-02070 | ||||
| 88718-01050 | ||||
| 88718-02080 | ||||
| 88892-01010 | ||||
(8609- )

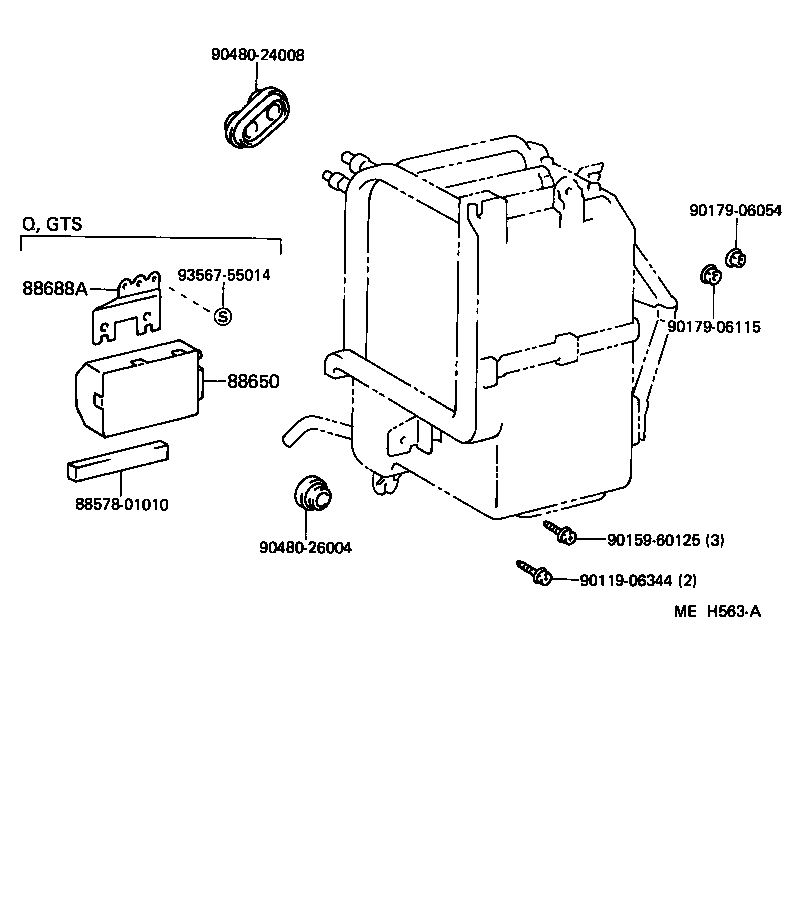

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-02040 |
AE82..GTS,Q |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-02010 |
AE82..GTS,Q |
1 | ||
| Common parts | ||||
| 88578-01010 | ||||
| 90119-06344 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90179-06115 | ||||
| 90480-24008 | ||||
| 90480-26004 | ||||
| 93567-55014 | ||||
