AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )

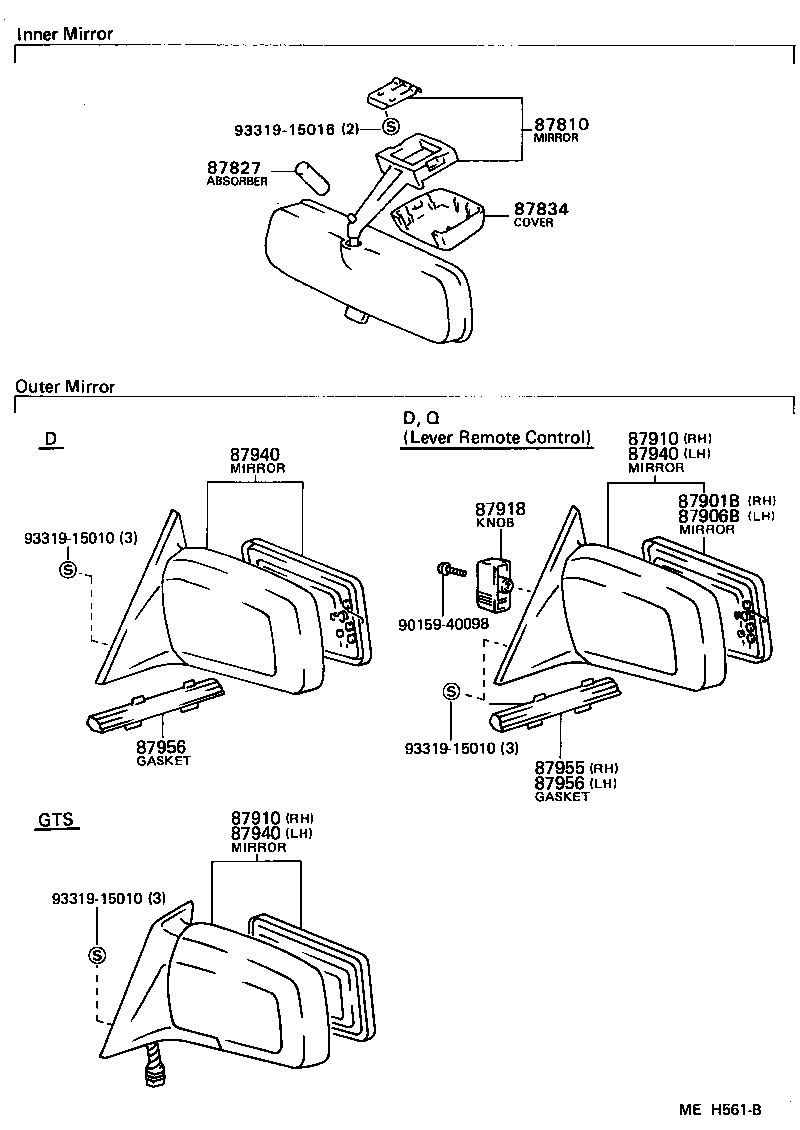

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-01010P8 |
AE82 CHARCOAL,CHARCOAL |
1 | ||
| 87810-01010J9 |
AE82 DARK BLUE,DARK BLUE |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-01010 |
AE82 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-01010P8 |
AE82 CHARCOAL,CHARCOAL |
1 | ||
| 87834-01010J9 |
AE82 DARK BLUE,DARK BLUE |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-12540 |
AE82..D,Q LEVER REMOTE CONTROL |
1 | ||
| 87931-02010 |
AE82..D,Q LEVER REMOTE CONTROL |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-02010 |
AE82..D,Q LEVER REMOTE CONTROL |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-02010D3 |
AE82..D,Q LEVER REMOTE CONTROL,BLACK,BLACK |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-02010D3 |
AE82..D,Q LEVER REMOTE CONTROL,BLACK,BLACK |
1 | ||
| 87918 - KNOB, CONTROL OUTER MIRROR | ||||
| 87918-01010D0 |
AE82..D,Q LEVER REMOTE CONTROL,BLACK,BLACK |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02010D3 |
AE82..D,Q LEVER REMOTE CONTROL,BLACK,BLACK |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02010D3 |
AE82..D,Q LEVER REMOTE CONTROL,BLACK,BLACK |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-02010D3 |
AE82..D,Q LEVER REMOTE CONTROL,BLACK,BLACK |
1 | ||
| Common parts | ||||
| 90159-40098 | ||||
| 93319-15010 | ||||
| 93319-15016 | ||||
