AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

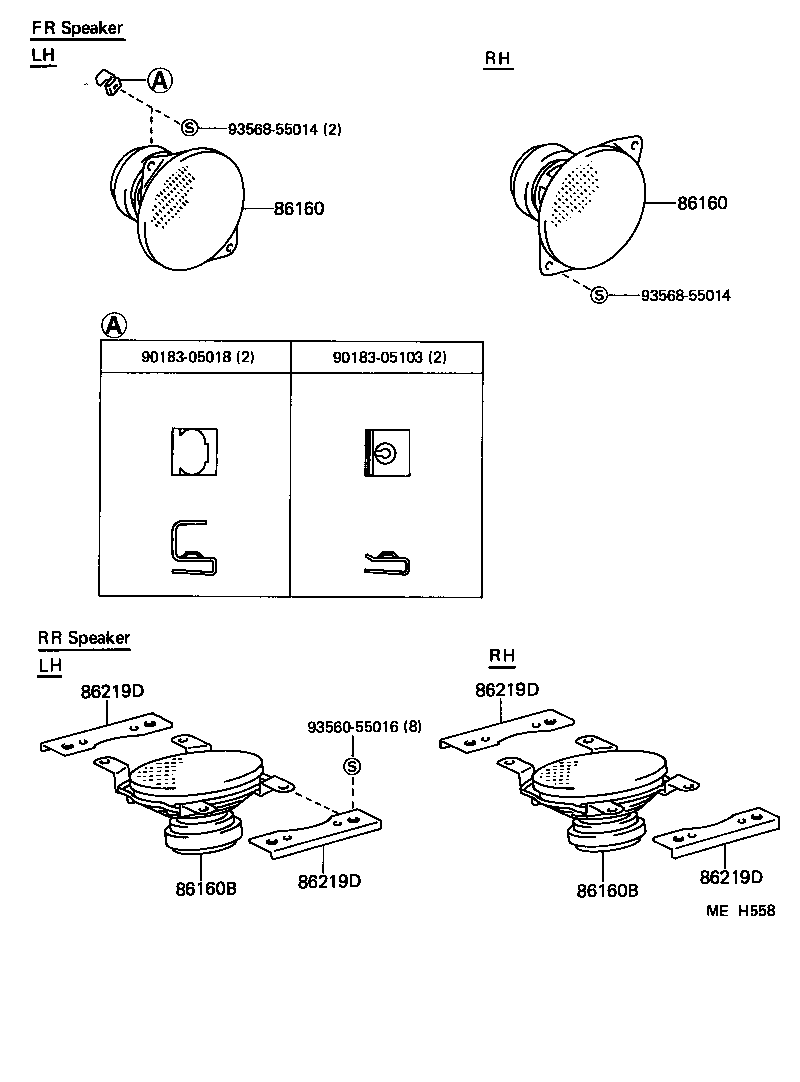

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86219D 86219D 86219D 86219D 9018305018 9018305103 9356055016 9356855014 9356855014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170

AE82

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170

AE82

 2
86160B - SPEAKER ASSY, REAR
86160-12200

AE82

LH

 1
86160-12190

AE82

RH

 1
86160B - SPEAKER ASSY, REAR
86160-12200

AE82

LH

 1
86160-12190

AE82

RH

 1
86219D - BRACKET, SPEAKER, REAR NO.1
86219-12070

AE82

 4
86219D - BRACKET, SPEAKER, REAR NO.1
86219-12070

AE82

 4
86219D - BRACKET, SPEAKER, REAR NO.1
86219-12070

AE82

 4
86219D - BRACKET, SPEAKER, REAR NO.1
86219-12070

AE82

 4
Common parts
90183-05018
90183-05103
93560-55016
93568-55014
