AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

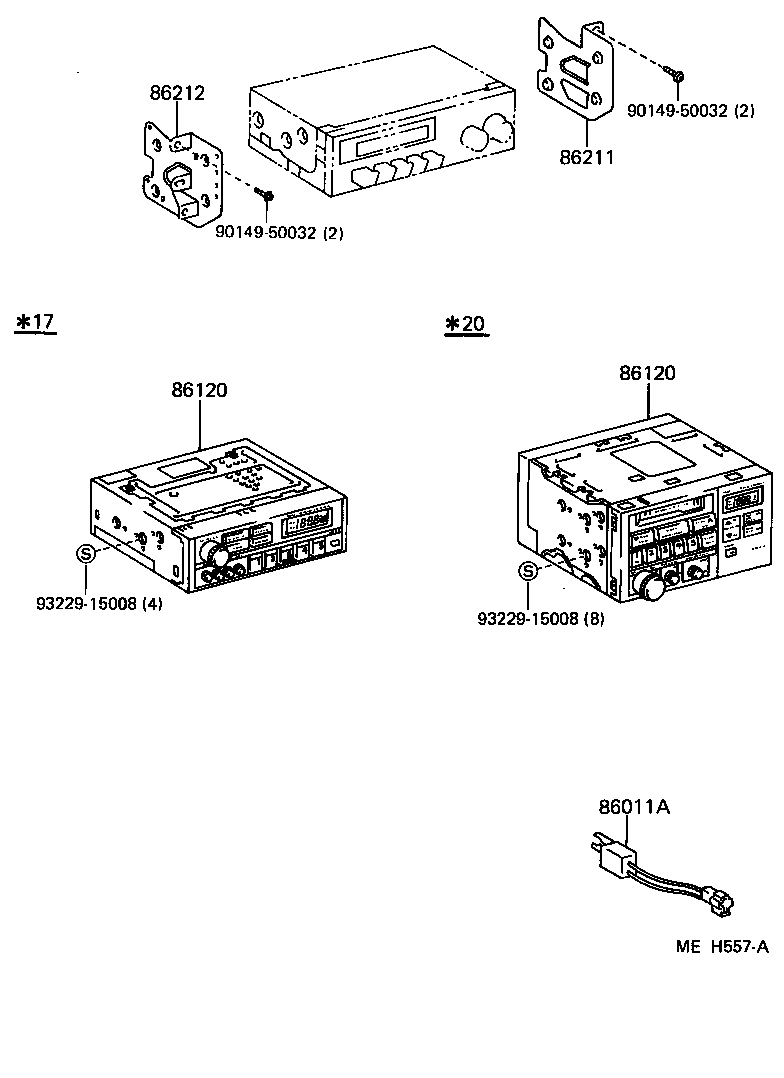

Click highlighted areas on diagram

diagram 86011A 86120 86120 86211 86212 9014950032 9014950032 9322915008 9322915008
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04055

AE82

 1
86120 - RECEIVER ASSY, RADIO
86120-16370

AE82

*17

 1
86120-16381

AE82

*20,MARK=2623

 1
86120-16380

AE82

*20,MARK=1632

 1
86120-16371

AE82

*17

 1
86120 - RECEIVER ASSY, RADIO
86120-16370

AE82

*17

 1
86120-16381

AE82

*20,MARK=2623

 1
86120-16380

AE82

*20,MARK=1632

 1
86120-16371

AE82

*17

 1
86211 - BRACKET, RADIO, NO.1
86211-12140

AE82

 1
86212 - BRACKET, RADIO, NO.2
86212-12120

AE82

 1
Common parts
90149-50032
93229-15008
