AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

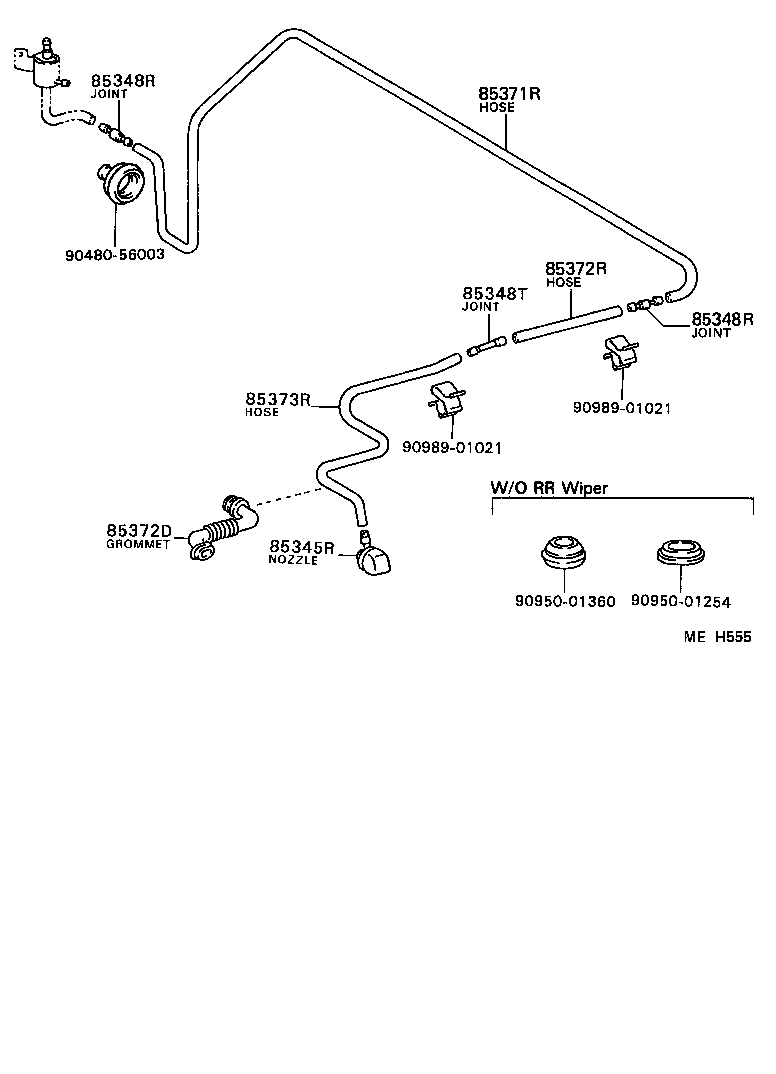

Click highlighted areas on diagram

diagram 85345R 85348R 85348R 85348T 85371R 85372D 85372R 85373R 9048056003 9095001254 9095001360 9098901021 9098901021
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-12160

AE82

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AE82

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AE82

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-20080

AE82

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33490

AE82

L=3050

 1
85372D - GROMMET, REAR WASHER HOSE
85372-14020

AE82

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33299

AE82

*H,L=100

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE82

*H,L=400

 1
Common parts
90480-56003
90950-01254
90950-01360
90989-01021
