AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

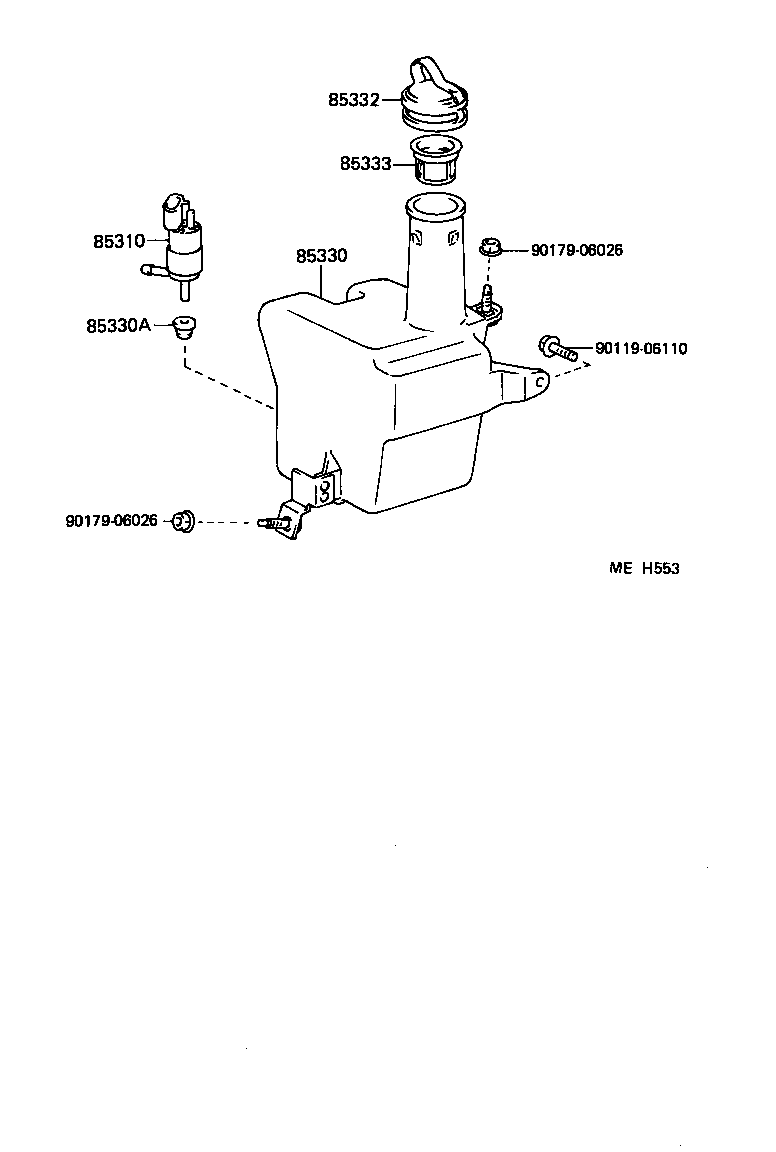

Click highlighted areas on diagram

diagram 85310 85330 85330A 85332 85333 9011906110 9017906026 9017906026
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-01010

AE82

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-01010

AE82

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85356-01010

AE82

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-01010

AE82

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-01010

AE82

 1
Common parts
90119-06110
90179-06026

(8609- )

Click highlighted areas on diagram

diagram 85031B 85342 85342 85345 85345 85348 85348 85348 85348D 85348D 85355 85371 85371 85372 85373 9046400300 9046710048 9046710048 9098901034 9165640616
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-02010

AE82..GTS,Q

 1
85342 - HOLDER, WASHER NOZZLE
85342-01010

AE82

 2
85342 - HOLDER, WASHER NOZZLE
85342-01010

AE82

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-01010

AE82

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-01010

AE82

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-01010

AE82

2 WAY

 1
85348-12250

AE82

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-01010

AE82

2 WAY

 1
85348-12250

AE82

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-01010

AE82

2 WAY

 1
85348-12250

AE82

3 WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE82

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

AE82

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-12250

AE82

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85343-01010

AE82

L=1100

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85343-01010

AE82

L=1100

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

AE82

*H,L=570

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AE82

*H,L=500

 1
Common parts
90464-00300
90467-10048
90989-01034
91656-40616
