AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )GTS,Q

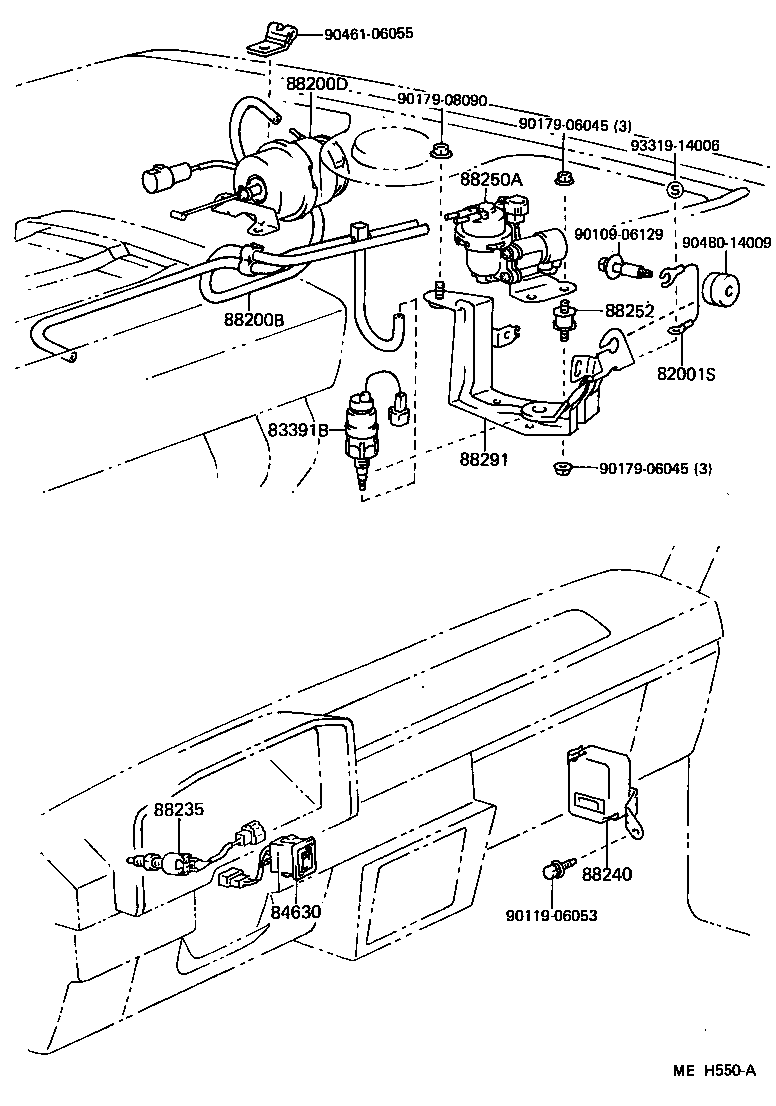

Click highlighted areas on diagram

diagram 82001S 83391B 84630 88200B 88200D 88235 88240 88250A 88252 88291 9010906129 9011906053 9017906045 9017906045 9017908090 9046106055 9048014009 9331914006
Part # Description Qty Price
82001S - CABLE, BOND
90980-07283

AE82..GTS,Q

 1
83391B - SWITCH, AUTO DRIVE VACUUM
83391-14090

AE82..GTS,Q

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-32040

AE82..GTS,Q

 1
88200B - HOSE, CRUISE CONTROL VACUUM
88283-02010

AE82..GTS,Q

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-02010

AE82..GTS,Q

 1
88200-02011

AE82..GTS,Q

 1
88235 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE
88280-35010

AE82..MTM..(GTS,Q)

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-02010

AE82..GTS,Q

 1
88250A - PUMP ASSY, CRUISE CONTROL
88251-02010

AE82..GTS,Q

 1
88251-02011

AE82..GTS,Q

 1
88252 - CUSHION, VACUUM PUMP
88252-14110

AE82..GTS,Q

 3
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-02010

AE82..GTS,Q

 1
Common parts
90109-06129
90119-06053
90179-06045
90179-08090
90461-06055
90480-14009
93319-14006
