AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )GTS,Q

Click highlighted areas on diagram

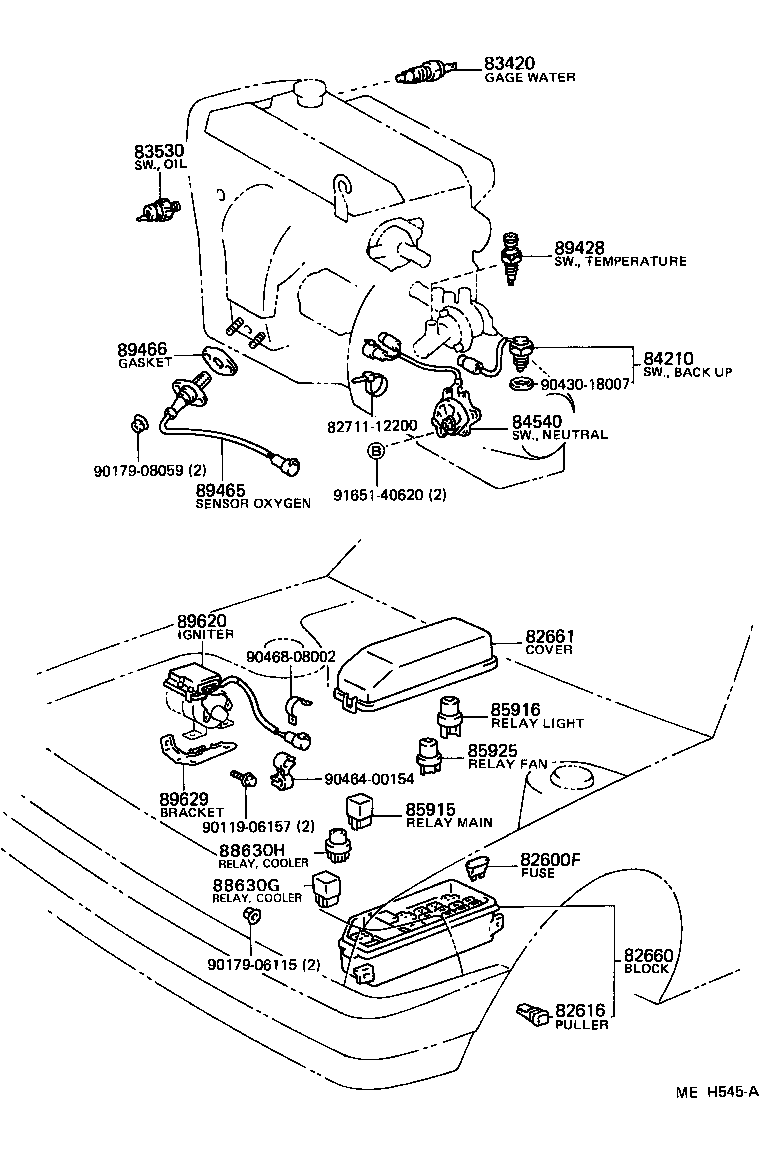

diagram 82600F 82616 82660 82661 8271112200 83420 83530 84210 84540 85915 85916 85925 88630G 88630H 89428 89465 89466 89620 89629 9011906157 9017906115 9017908059 9043018007 9046400154 9046808002 9165140620
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90080-82013

AE82

15A,BLUE,7.5A

 9
90080-82015

AE82

7.5A,BROWN,15A

 6
90080-82005

AE82

30A,GREEN,30A

 1
90080-82012

AE82

10A,RED,10A

 5
90080-82014

AE82

20A,YELLOW,20A

 2
82616 - PULLER, FUSE
82616-12020

AE82

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82602-01020

AE82

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-01011

AE82

ENGINE ROOM

 1
82661-12100

AE82

COWL

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

AE82

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14020

AE82..GTS,Q

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

AE82..MTM

 1
85915 - RELAY, MAIN
85913-30020

AE82

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

AE82

 2
85925 - RELAY, RADIATOR FAN
90987-03001

AE82

 1
88630G - RELAY ASSY, COOLER
88630-01010

AE82

 1
88630H - RELAY ASSY, COOLER
90080-87001

AE82

 1
90987-02004

AE82

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-20060

AE82

 1
89428-15011

AE82

 1
89465 - SENSOR, OXYGEN
89465-02010

AE82..GTS,Q

 1
89465-01020

AE82..GTS,Q

 1
89466 - GASKET, OXYGEN SENSOR
89466-30010

AE82

 1
89620 - IGNITER ASSY
89620-02010

AE82..GTS,Q

 1
89629 - BRACKET, IGNITER ASSY
89629-02010

AE82..GTS,Q

 1
Common parts
82711-12200
90119-06157
90179-06115
90179-08059
90430-18007
90464-00154
90468-08002
91651-40620

(8609- )

Click highlighted areas on diagram

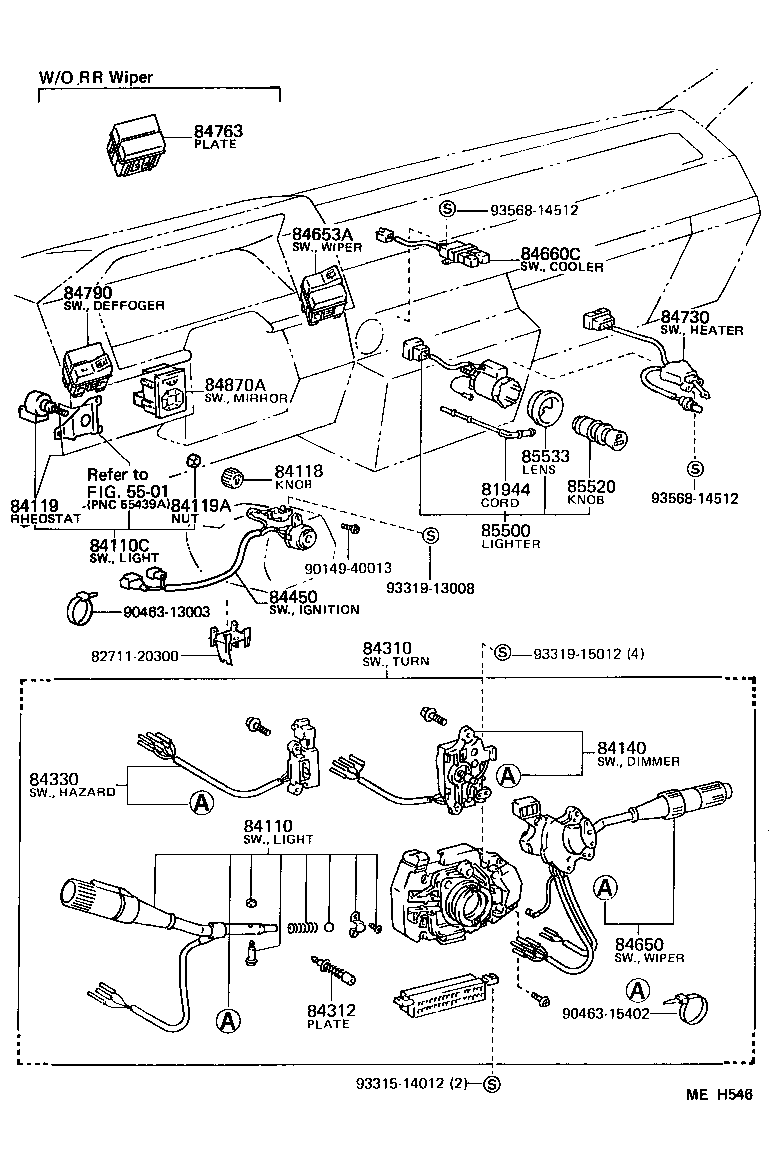

diagram 5501 81944 8271120300 84110 84110C 84118 84119 84119A 84140 84310 84312 84330 84450 84650 84653A 84660C 84730 84763 84790 84870A 85500 85520 85533 9014940013 9046313003 9046315402 9331514012 9331913008 9331915012 9356814512 9356814512
Part # Description Qty Price
81944 - CORD, OPTICAL FIBER
81944-12020

AE82

 1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-09020

AE82..D,Q

 1
84112-09010

AE82..D,Q

 1
84110C - SWITCH ASSY, LIGHT CONTROL, NO.2
84110-12190

AE82

 1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-01010D0

AE82

BLACK,BLACK

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-12070

AE82

 1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90984-01007

AE82

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19245

AE82..D,Q

 1
84140-19235

AE82..D,Q

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-01020

AE82..D,Q

 1
84310-01030

AE82..Q

W/*CRC & *VIW

 1
84310-02010

AE82..D,Q

W/*IW

 1
84310-01040

AE82..Q

W/*CRC & *VIW

 1
84310-01010

AE82..D,Q

 1
84310-02020

AE82..D,Q

W/*IW

 1
84312 - PLATE, HORN CONTACT
84312-32010

AE82

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19205

AE82..D,Q

 1
84332-19215

AE82..D,Q

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12130

AE82

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-09020

AE82..D,Q

 1
84652-09030

AE82..Q

W/*CRC & *VIW

 1
84652-80005

AE82..D,Q

W/*IW

 1
84652-09040

AE82..Q

W/*CRC & *VIW

 1
84652-09010

AE82..D,Q

 1
84652-80007

AE82..D,Q

W/*IW

 1
84653A - SWITCH, REAR WIPER
84653-02010D0

AE82

BLACK,BLACK

 1
84660C - SWITCH, COOLER
84660-12060

AE82

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-12110

AE82

 1
84763 - PLATE, SWITCH
84763-02010D0

AE82..D,Q

BLACK,BLACK

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-12180

AE82

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-01010D0

AE82

BLACK,BLACK

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-14030

AE82

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20011

AE82

 1
Common parts
82711-20300
90149-40013
90463-13003
90463-15402
93315-14012
93319-13008
93319-15012
93568-14512
Linked diagrams
5501

(8609- )

Click highlighted areas on diagram

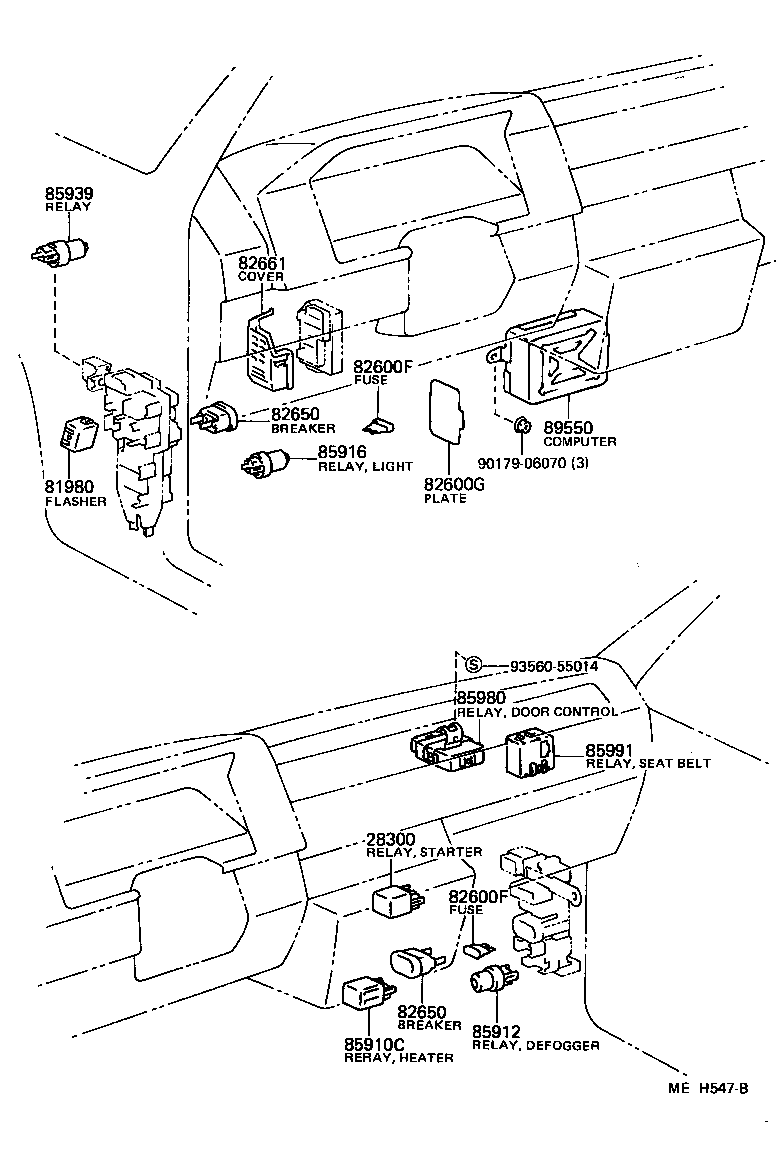

diagram 28300 81980 82600F 82600F 82600G 82650 82650 82661 85910C 85912 85916 85939 85980 85991 89550 9017906070 9356055014
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-16010

4A#..AE82..MTM

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-16010

AE82

 1
82600F - FUSE, FUSE BLOCK
90080-82013

AE82

15A,BLUE,7.5A

 9
90080-82015

AE82

7.5A,BROWN,15A

 6
90080-82005

AE82

30A,GREEN,30A

 1
90080-82012

AE82

10A,RED,10A

 5
90080-82014

AE82

20A,YELLOW,20A

 2
82600F - FUSE, FUSE BLOCK
90080-82013

AE82

15A,BLUE,7.5A

 9
90080-82015

AE82

7.5A,BROWN,15A

 6
90080-82005

AE82

30A,GREEN,30A

 1
90080-82012

AE82

10A,RED,10A

 5
90080-82014

AE82

20A,YELLOW,20A

 2
82600G - PLATE, CAUTION(FOR FUSE)
82683-01010

AE82

 1
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011

AE82

30A,30A

 3
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011

AE82

30A,30A

 3
82661 - COVER, RELAY BLOCK, NO.1
82661-01011

AE82

ENGINE ROOM

 1
82661-12100

AE82

COWL

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
85913-30020

AE82

 1
85912 - RELAY, DEFOGGER
90987-02004

AE82

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

AE82

 2
85991 - RELAY, SEAT BELT WARNING
85991-12050

AE82

 1
Common parts
90179-06070
93560-55014

(8609- )

Click highlighted areas on diagram

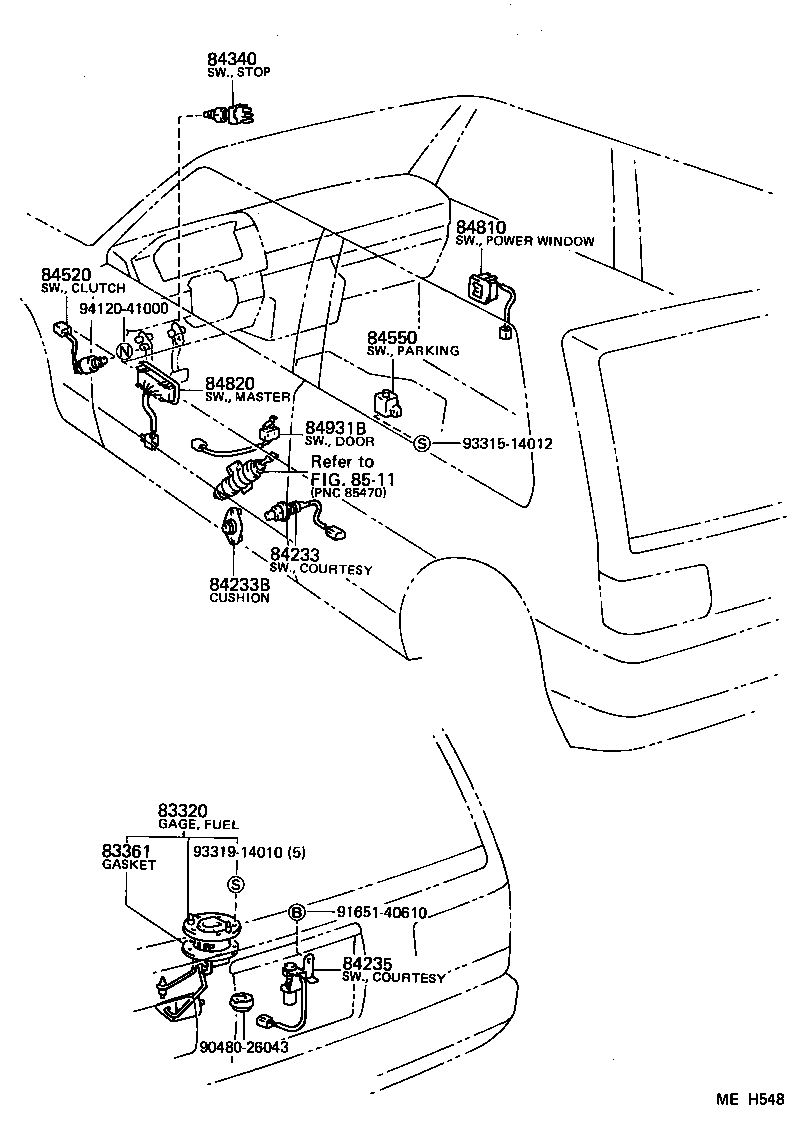

diagram 83320 83361 84233 84233B 84235 84340 84520 84550 84810 84820 84931B 8511 9048026043 9165140610 9331514012 9331914010 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-19875

AE82

 1
83361 - GASKET, FUEL SENDER GAGE
77169-14020

AE82

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-12120

AE82

 2
84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR)
84234-22010

AE82

 2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-16021

AE82

 1
84340 - SWITCH ASSY, STOP LAMP
84340-32010

AE82

 1
84340-30030

AE82

 1
84340-20030

AE82..GTS,Q

W/*CRC

 1
84520 - SWITCH ASSY, CLUTCH START
84520-12010

AE82..MTM

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-12060

AE82

 1
Common parts
90480-26043
91651-40610
93315-14012
93319-14010
94120-41000
Linked diagrams
8511
