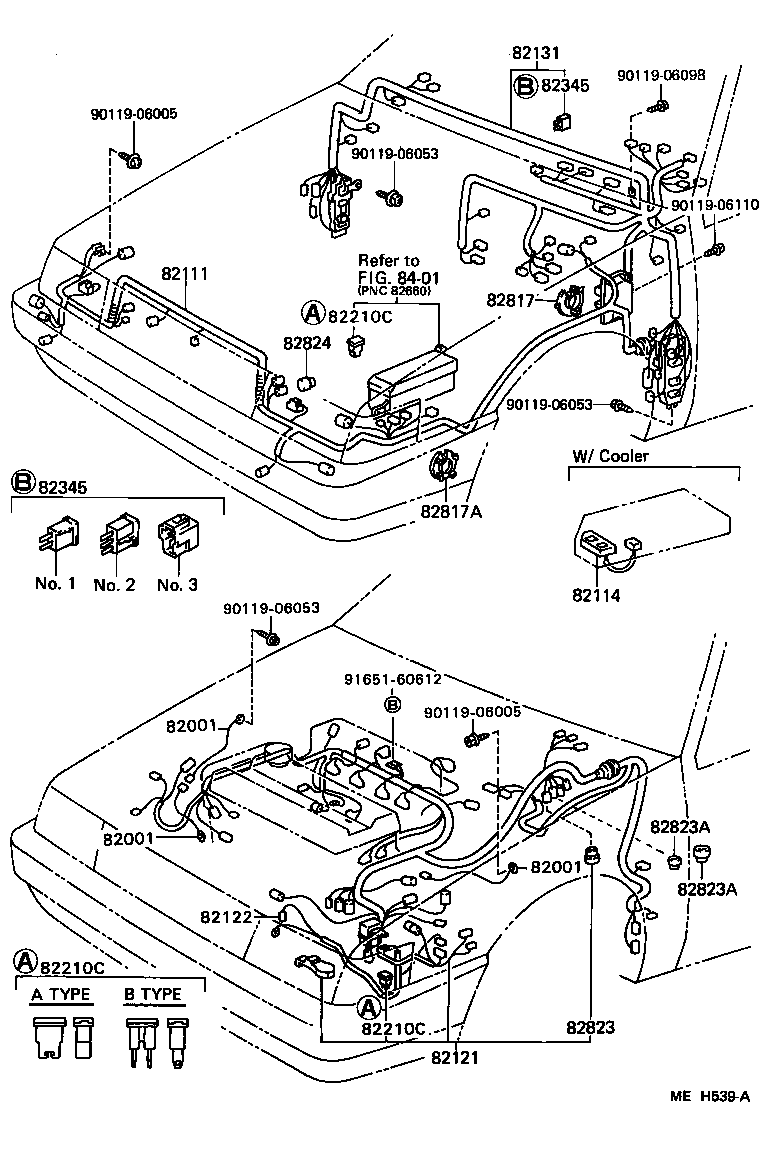

Toyota Corolla fx AE82 WIRING & CLAMP

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07235	AE82..GTS,Q L=100,ENGINE-FENDER,RH	09/1986 - 08/1988	1
90980-07206	AE82 L=150,FENDER,RH & LH	09/1986 - 08/1988	2
82001 - CABLE, BOND, NO.1
90980-07235	AE82..GTS,Q L=100,ENGINE-FENDER,RH	09/1986 - 08/1988	1
90980-07206	AE82 L=150,FENDER,RH & LH	09/1986 - 08/1988	2
82001 - CABLE, BOND, NO.1
90980-07235	AE82..GTS,Q L=100,ENGINE-FENDER,RH	09/1986 - 08/1988	1
90980-07206	AE82 L=150,FENDER,RH & LH	09/1986 - 08/1988	2
82111 - WIRE, ENGINE ROOM MAIN
82111-02010	AE82..GTS,Q	09/1986 - 08/1988	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-01010	AE82	09/1986 - 08/1988	1
82121 - WIRE, ENGINE
82121-02010	AE82..MTM..(GTS,Q)	09/1986 - 08/1987	1
82121-02011	AE82..MTM..(GTS,Q)	08/1987 - 08/1988	1
82122 - WIRE, ENGINE, NO.2
82122-02010	AE82..GTS,Q	09/1986 - 08/1988	1
82131 - WIRE, COWL
82131-02010	AE82..MTM..(GTS,Q)	09/1986 - 08/1987	1
82131-02021	AE82..MTM..(GTS,Q) W/*CRC	08/1987 - 08/1988	1
82131-02020	AE82..MTM..(GTS,Q) W/*CRC	09/1986 - 08/1987	1
82131-02011	AE82..MTM..(GTS,Q)	08/1987 - 08/1988	1
82210C - FUSIBLE LINK
90982-08188	AE82 30A,TERM.:FEMALE,PNK,30A,A TYPE	09/1986 - 08/1988	3
90982-08203	AE82..GTS,Q 80A,TERM.:MALE,BLK,80A,B TYPE	09/1986 - 08/1988	1
90982-08223	AE82..GTS,Q 30A,TERM.:MALE,PNK,30A,B TYPE	09/1986 - 08/1988	2
82210C - FUSIBLE LINK
90982-08188	AE82 30A,TERM.:FEMALE,PNK,30A,A TYPE	09/1986 - 08/1988	3
90982-08203	AE82..GTS,Q 80A,TERM.:MALE,BLK,80A,B TYPE	09/1986 - 08/1988	1
90982-08223	AE82..GTS,Q 30A,TERM.:MALE,PNK,30A,B TYPE	09/1986 - 08/1988	2
82210C - FUSIBLE LINK
90982-08188	AE82 30A,TERM.:FEMALE,PNK,30A,A TYPE	09/1986 - 08/1988	3
90982-08203	AE82..GTS,Q 80A,TERM.:MALE,BLK,80A,B TYPE	09/1986 - 08/1988	1
90982-08223	AE82..GTS,Q 30A,TERM.:MALE,PNK,30A,B TYPE	09/1986 - 08/1988	2
82345 - DIODE
82345-01030	AE82 NO.3	09/1986 - 08/1988	2
82345-01020	AE82 NO.2	09/1986 - 08/1988	2
82345-01010	AE82 NO.1	09/1986 - 08/1988	2
82345 - DIODE
82345-01030	AE82 NO.3	09/1986 - 08/1988	2
82345-01020	AE82 NO.2	09/1986 - 08/1988	2
82345-01010	AE82 NO.1	09/1986 - 08/1988	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-14360	AE82	09/1986 - 08/1988	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-32010	AE82	09/1986 - 08/1988	1
82823 - CAP, TERMINAL, NO.1
82823-12050	AE82..GTS,Q 1-POLE CONNECTOR	09/1986 - 08/1988	1
82823A - CAP, TERMINAL, NO.2
82823-14040	AE82..GTS,Q 2-POLE CONNECTOR	09/1986 - 08/1988	1
82823-30010	AE82..GTS,Q 4-POLE CONNECTOR	09/1986 - 08/1988	1
82823A - CAP, TERMINAL, NO.2
82823-14040	AE82..GTS,Q 2-POLE CONNECTOR	09/1986 - 08/1988	1
82823-30010	AE82..GTS,Q 4-POLE CONNECTOR	09/1986 - 08/1988	1
82824 - CONNECTOR, WIRING HARNESS
82824-32030	AE82	09/1986 - 08/1988	1
Common parts
90119-06005
90119-06053
90119-06098
90119-06110
91651-60612
Linked diagrams
8401

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-02010	AE82..GTS,Q	09/1986 - 08/1988	1
82162 - WIRE, FLOOR, NO.2
82162-02010	AE82..MTM	09/1986 - 08/1988	1
82171 - WIRE, ROOF, NO.1
82171-02020	AE82..GTS,Q W/SUN ROOF	09/1986 - 08/1988	1
82171-02010	AE82	09/1986 - 08/1988	1
82184 - WIRE, BACK DOOR, NO.1
82184-02020	AE82 W/*RW	09/1986 - 08/1988	1
82184-02010	AE82..D,Q	09/1986 - 08/1988	1
82185 - WIRE, BACK DOOR, NO.2
82185-02010	AE82..D,Q	09/1986 - 08/1988	1
82185-02020	AE82 W/*RW	09/1986 - 08/1988	1
82186 - WIRE, REAR WINDOW, NO.1
82186-02010	AE82	09/1986 - 08/1988	1
82187 - WIRE, REAR WINDOW, NO.2
82187-02010	AE82	09/1986 - 08/1988	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-16100	AE82	09/1986 - 08/1988	1
Common parts
90119-06005
90119-06067

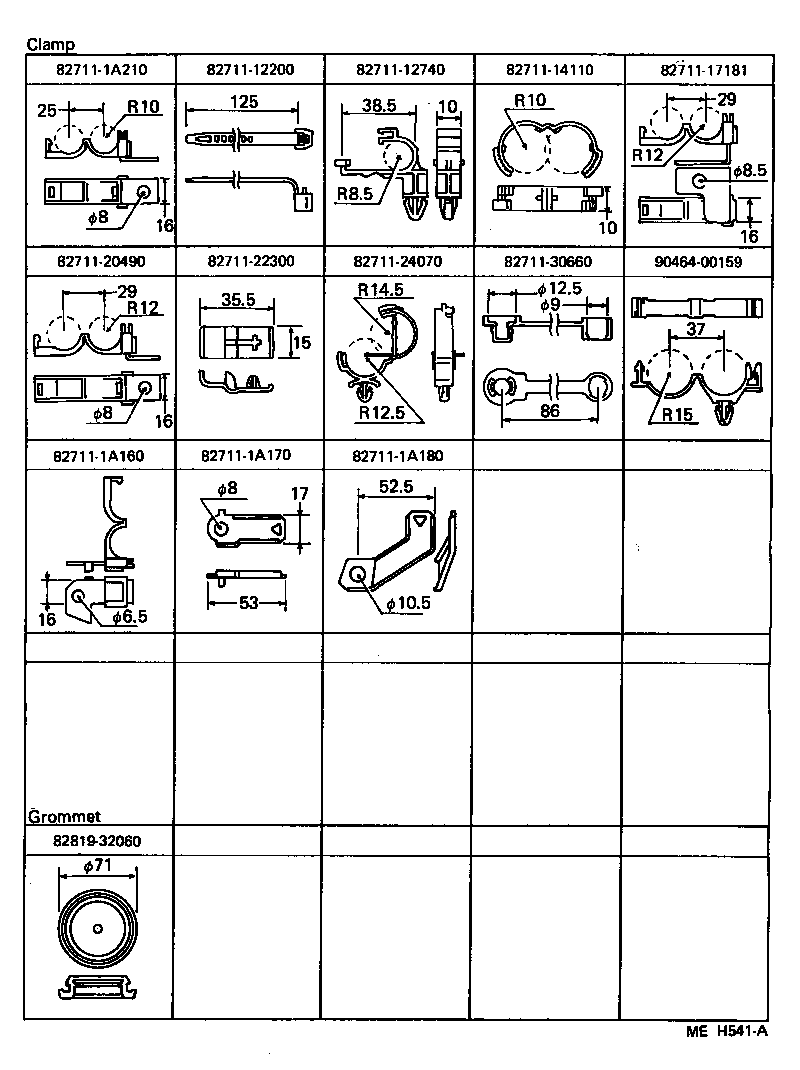

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-12740
82711-14110
82711-17181
82711-1A160
82711-1A170
82711-1A180
82711-1A210
82711-20490
82711-22300
82711-24070
82711-30660
82819-32060
90464-00159

AE82L-EGMQFA (1986)

(8609- )GTS,Q

(8609- )

(8609- )
