AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

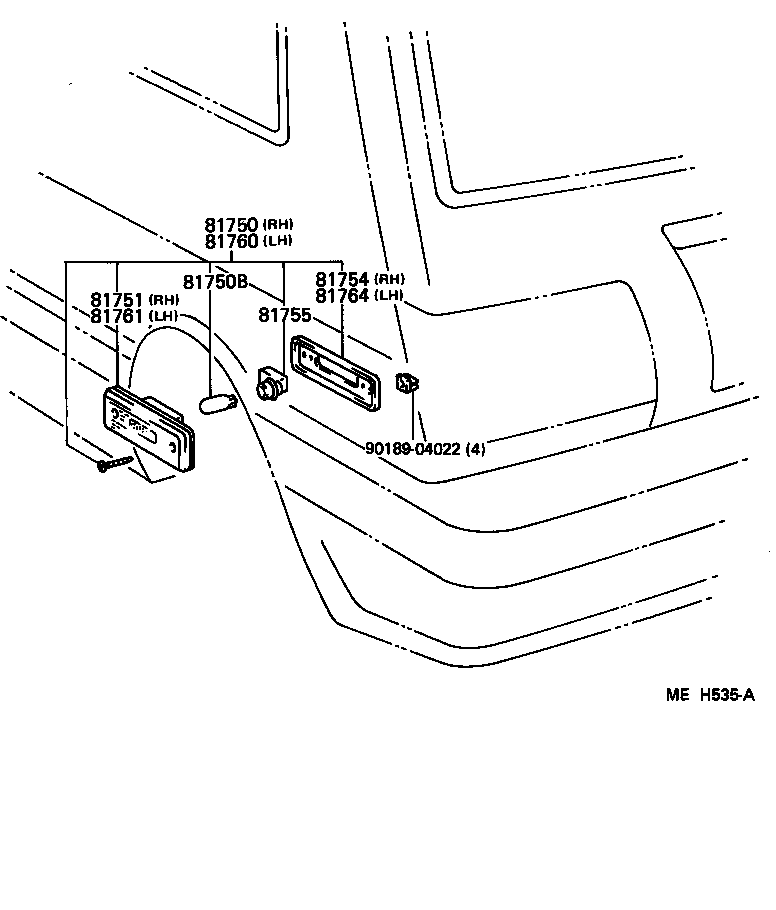

Click highlighted areas on diagram

diagram 81750 81750B 81751 81754 81755 81760 81761 81764 9018904022
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-12130

AE82

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

AE82

12V 3.8W,12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-02010

AE82

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81754-02010

AE82

 1
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
81755-02010

AE82

 2
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-12130

AE82

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-02010

AE82

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81754-02010

AE82

 1
Common parts
90189-04022
