AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

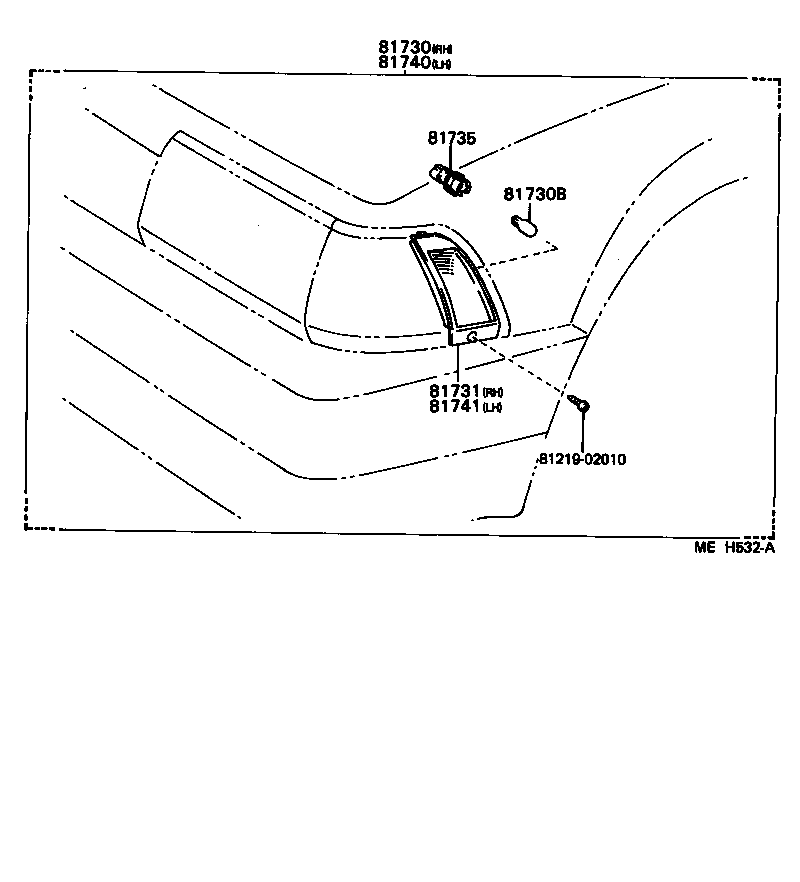

Click highlighted areas on diagram

diagram 8121902010 81730 81730B 81731 81735 81740 81741
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-02010

AE82

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90981-11020

AE82

12V 3.8W,12V 3.8W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-02010

AE82

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
81735-12180

AE82

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-02010

AE82

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-02010

AE82

 1
Common parts
81219-02010
