AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988

Engine 4AGELC

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8609- )

Click highlighted areas on diagram

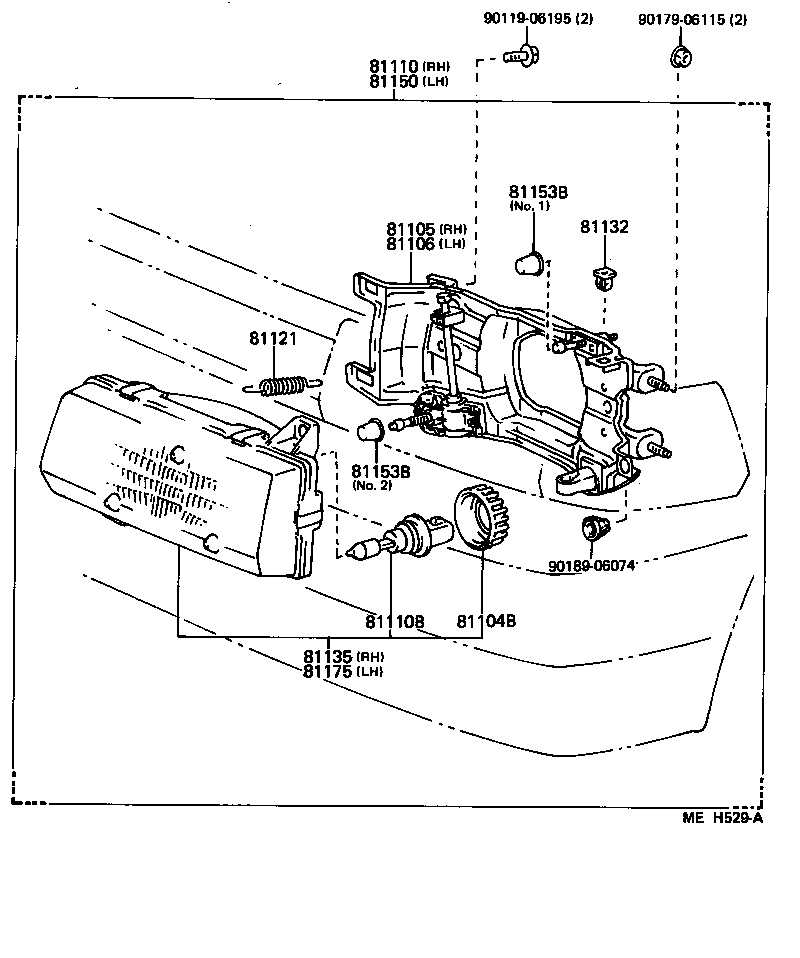

diagram

Part #	Description	Period	Qty	Price
81104B - LOCKING CAP, HEADLAMP
81104-22520	AE82	09/1986 - 08/1988	2
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81101-02010	AE82	09/1986 - 08/1988	1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81102-02010	AE82	09/1986 - 08/1988	1
81110 - HEADLAMP ASSY, RH
81110-02010	AE82	09/1986 - 08/1988	1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032	AE82 12V 65/45W,HAL,WH,12V 65/45W	09/1986 - 08/1988	2
81121 - SPRING, HEADLAMP TENSION
81121-22520	AE82	09/1986 - 08/1988	2
81132 - NUT, HEADLAMP SELF LOCKING
81137-22530	AE82	09/1986 - 08/1988	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-02010	AE82	09/1986 - 08/1988	1
81150 - HEADLAMP ASSY, LH
81150-02010	AE82	09/1986 - 08/1988	1
81153B - BEARING, HEADLAMP
81127-1A191	AE82 NO.1	09/1986 - 08/1988	2
81127-32200	AE82 NO.2	09/1986 - 08/1988	2
81153B - BEARING, HEADLAMP
81127-1A191	AE82 NO.1	09/1986 - 08/1988	2
81127-32200	AE82 NO.2	09/1986 - 08/1988	2
81175 - UNIT ASSY, HEADLAMP, LH
81170-02010	AE82	09/1986 - 08/1988	1
Common parts
90119-06195
90179-06115
90189-06074
