Toyota Corolla fx AE82 ACCELERATOR LINK

AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988

Engine 4AGELC

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

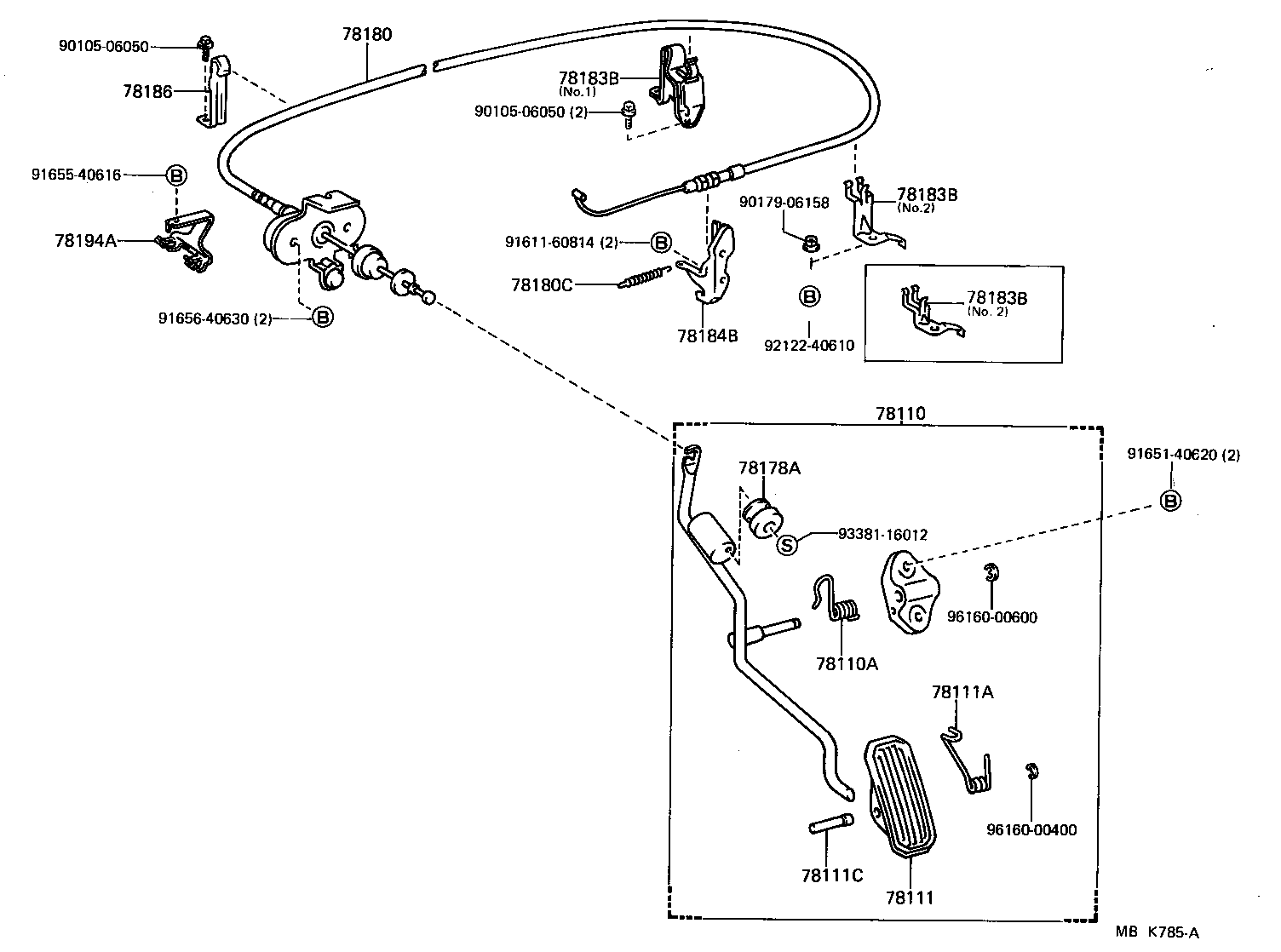

(8609- )GTS,Q

Click highlighted areas on diagram

Part #	Description	Period	Qty
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-12060	AE82..MTM	09/1986 - 08/1988	1
78120-12050	AE82..MTM..(GTS,Q) W/CRUISE CONTROL	09/1986 - 08/1988	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	AE82..MTM	09/1986 - 08/1988	1
90508-18025	AE82..MTM..(GTS,Q) W/CRUISE CONTROL	09/1986 - 08/1988	1
78111 - PEDAL, ACCELERATOR
78111-32010	AE82	09/1986 - 08/1988	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056	AE82	09/1986 - 08/1988	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	AE82	09/1986 - 08/1988	1
78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC
78178-12030	AE82	09/1986 - 08/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-02020	AE82..GTS,Q W/CRUISE CONTROL	09/1986 - 08/1988	1
78180-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90507-10016	AE82..GTS,Q	09/1986 - 08/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02011	AE82..GTS,Q NO.1,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-02040	AE82..GTS,Q NO.2,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-12080	AE82..GTS,Q NO.2	09/1986 - 09/1987	1
78183-02060	AE82..GTS,Q NO.2	09/1987 - 08/1988	1
78183-12090	AE82..GTS,Q NO.1	09/1986 - 08/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02011	AE82..GTS,Q NO.1,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-02040	AE82..GTS,Q NO.2,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-12080	AE82..GTS,Q NO.2	09/1986 - 09/1987	1
78183-02060	AE82..GTS,Q NO.2	09/1987 - 08/1988	1
78183-12090	AE82..GTS,Q NO.1	09/1986 - 08/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02011	AE82..GTS,Q NO.1,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-02040	AE82..GTS,Q NO.2,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-12080	AE82..GTS,Q NO.2	09/1986 - 09/1987	1
78183-02060	AE82..GTS,Q NO.2	09/1987 - 08/1988	1
78183-12090	AE82..GTS,Q NO.1	09/1986 - 08/1988	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12190	AE82..GTS,Q	09/1986 - 08/1988	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-02020	AE82..GTS,Q	09/1986 - 08/1988	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-02010	AE82..GTS,Q	09/1986 - 08/1988	1
Common parts
90105-06050
90179-06158
91611-60814
91651-40620
91655-40616
91656-40630
92122-40610
93381-16012
96160-00400
96160-00600

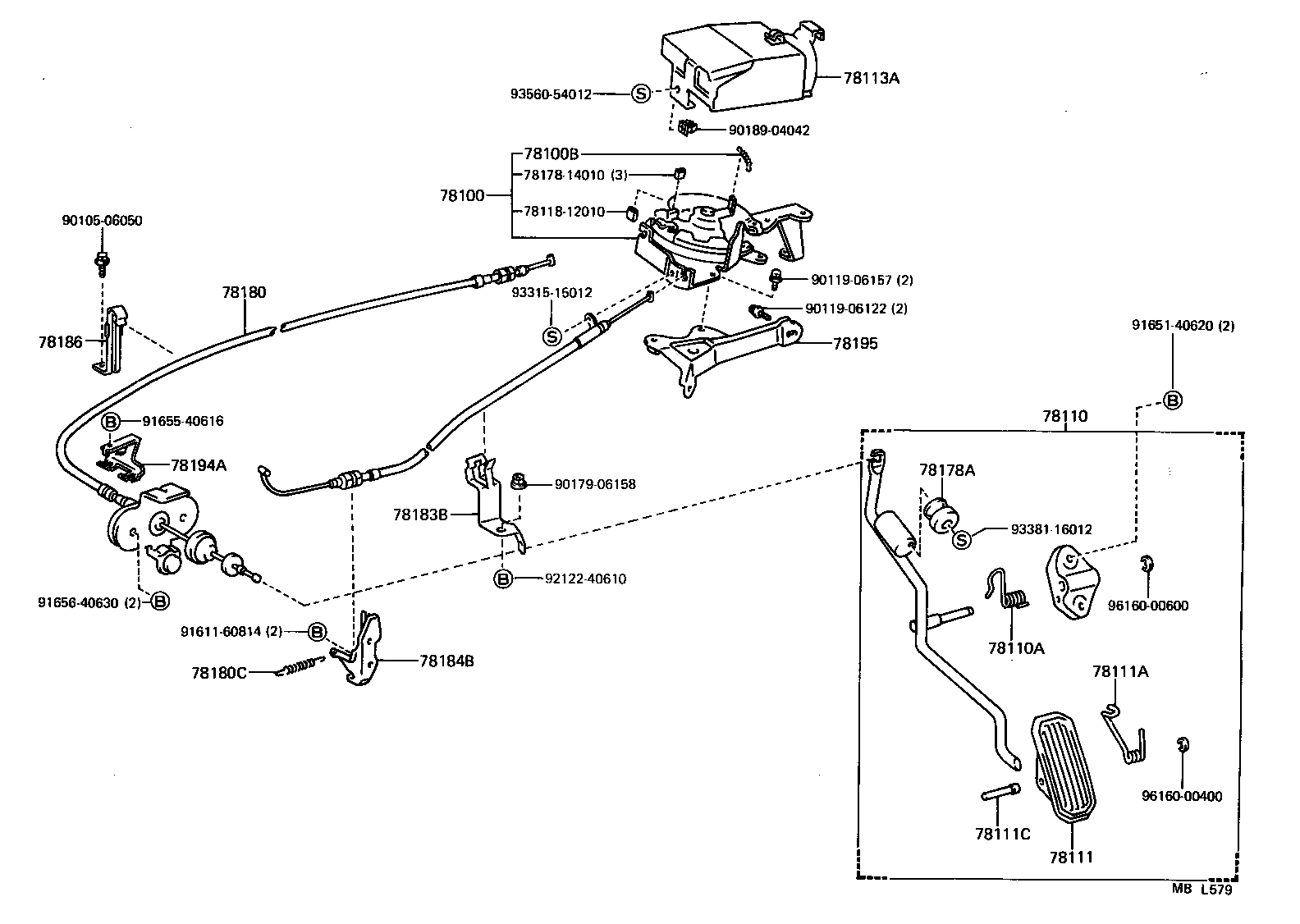

(8609-8709)GTS,Q

Click highlighted areas on diagram

Part #	Description	Period	Qty
78100 - LINK ASSY, ACCELERATOR
78100-02011	AE82..GTS,Q	09/1986 - 08/1988	1
78100B - SPRING (FOR ACCELERATOR LINK)
90506-08019	AE82..GTS,Q	09/1986 - 08/1988	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-12060	AE82..MTM	09/1986 - 08/1988	1
78120-12050	AE82..MTM..(GTS,Q) W/CRUISE CONTROL	09/1986 - 08/1988	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	AE82..MTM	09/1986 - 08/1988	1
90508-18025	AE82..MTM..(GTS,Q) W/CRUISE CONTROL	09/1986 - 08/1988	1
78111 - PEDAL, ACCELERATOR
78111-32010	AE82	09/1986 - 08/1988	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056	AE82	09/1986 - 08/1988	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	AE82	09/1986 - 08/1988	1
78113A - COVER, AUTO DRIVE ACCELERATOR LINK
78113-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-02011	AE82..GTS,Q	09/1986 - 09/1987	1
78150-02012	AE82..GTS,Q	09/1987 - 08/1988	1
78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC
78178-12030	AE82	09/1986 - 08/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-02020	AE82..GTS,Q W/CRUISE CONTROL	09/1986 - 08/1988	1
78180-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90507-10016	AE82..GTS,Q	09/1986 - 08/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02011	AE82..GTS,Q NO.1,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-02040	AE82..GTS,Q NO.2,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-12080	AE82..GTS,Q NO.2	09/1986 - 09/1987	1
78183-02060	AE82..GTS,Q NO.2	09/1987 - 08/1988	1
78183-12090	AE82..GTS,Q NO.1	09/1986 - 08/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02011	AE82..GTS,Q NO.1,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-02040	AE82..GTS,Q NO.2,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-12080	AE82..GTS,Q NO.2	09/1986 - 09/1987	1
78183-02060	AE82..GTS,Q NO.2	09/1987 - 08/1988	1
78183-12090	AE82..GTS,Q NO.1	09/1986 - 08/1988	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12190	AE82..GTS,Q	09/1986 - 08/1988	1
78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2
78185-02020	AE82..MTM..(GTS,Q)	09/1986 - 09/1987	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-02020	AE82..GTS,Q	09/1986 - 08/1988	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78195 - BRACKET, ACCELERATOR LINK
78195-02011	AE82..GTS,Q	09/1986 - 08/1988	1
Common parts
78118-12010
78178-14010
90105-06032
90105-06050
90119-06122
90119-06157
90179-06158
90189-04042
90464-00377
90464-00463
91611-60814
91651-40620
91655-40616
91656-40630
92122-40610
93315-15012
93381-16012
93560-54012
96160-00400
96160-00600

(8709- )GTS,Q

Click highlighted areas on diagram

Part #	Description	Period	Qty
78100 - LINK ASSY, ACCELERATOR
78100-02011	AE82..GTS,Q	09/1986 - 08/1988	1
78100B - SPRING (FOR ACCELERATOR LINK)
90506-08019	AE82..GTS,Q	09/1986 - 08/1988	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-12060	AE82..MTM	09/1986 - 08/1988	1
78120-12050	AE82..MTM..(GTS,Q) W/CRUISE CONTROL	09/1986 - 08/1988	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	AE82..MTM	09/1986 - 08/1988	1
90508-18025	AE82..MTM..(GTS,Q) W/CRUISE CONTROL	09/1986 - 08/1988	1
78111 - PEDAL, ACCELERATOR
78111-32010	AE82	09/1986 - 08/1988	1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056	AE82	09/1986 - 08/1988	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001	AE82	09/1986 - 08/1988	1
78113A - COVER, AUTO DRIVE ACCELERATOR LINK
78113-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC
78178-12030	AE82	09/1986 - 08/1988	1
78180 - WIRE ASSY, ACCELERATOR
78180-02020	AE82..GTS,Q W/CRUISE CONTROL	09/1986 - 08/1988	1
78180-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90507-10016	AE82..GTS,Q	09/1986 - 08/1988	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02011	AE82..GTS,Q NO.1,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-02040	AE82..GTS,Q NO.2,W/CRUISE CONTROL	09/1986 - 09/1987	1
78183-12080	AE82..GTS,Q NO.2	09/1986 - 09/1987	1
78183-02060	AE82..GTS,Q NO.2	09/1987 - 08/1988	1
78183-12090	AE82..GTS,Q NO.1	09/1986 - 08/1988	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12190	AE82..GTS,Q	09/1986 - 08/1988	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-02020	AE82..GTS,Q	09/1986 - 08/1988	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-02010	AE82..GTS,Q	09/1986 - 08/1988	1
78195 - BRACKET, ACCELERATOR LINK
78195-02011	AE82..GTS,Q	09/1986 - 08/1988	1
Common parts
78118-12010
78178-14010
90105-06050
90119-06122
90119-06157
90179-06158
90189-04042
91611-60814
91651-40620
91655-40616
91656-40630
92122-40610
93315-15012
93381-16012
93560-54012
96160-00400
96160-00600
