AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

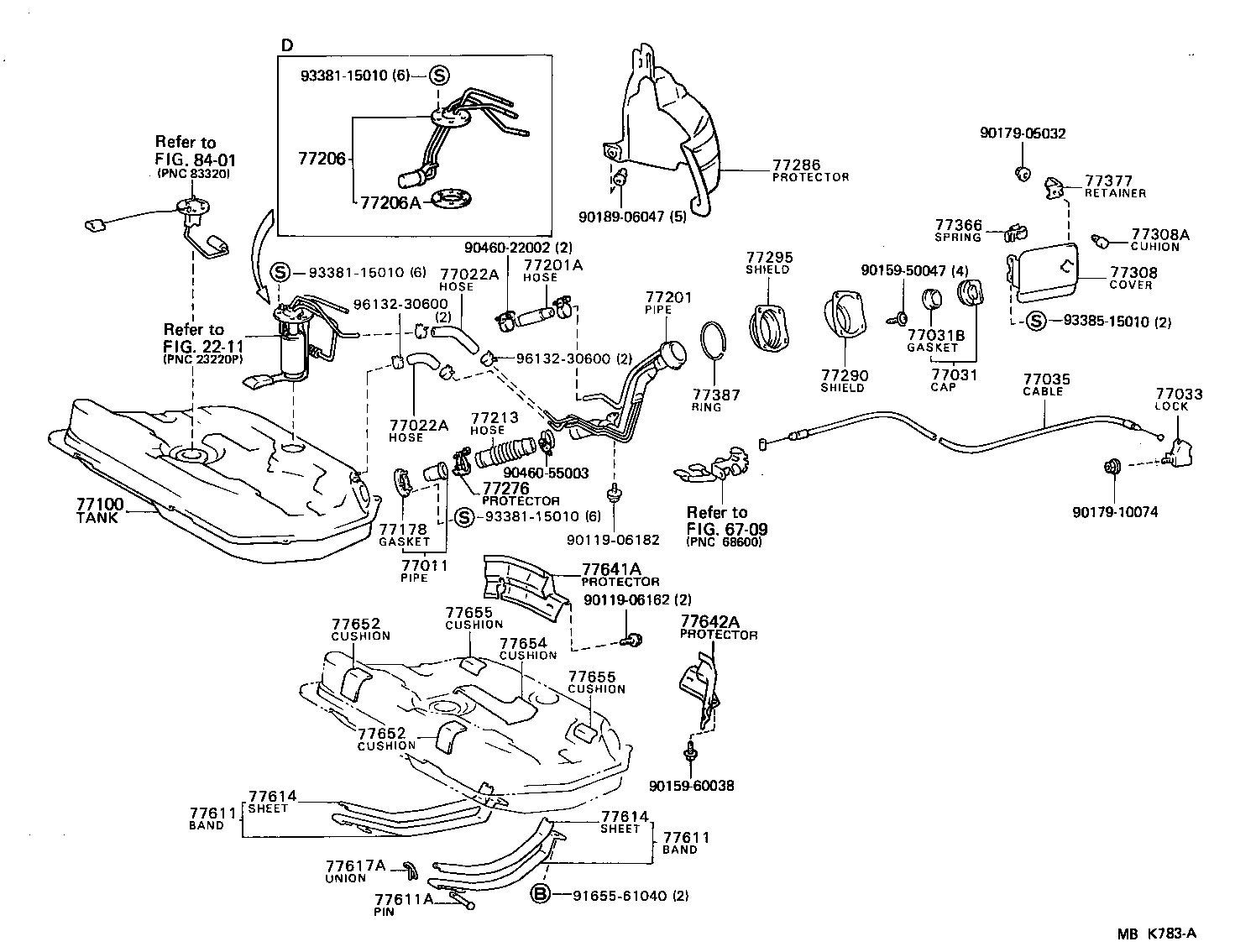

| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16040 |
AE82 |
1 | ||
| 77011-16030 |
AE82 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-16040 |
AE82 |
2 | ||
| 95332-06020 |
AE82 *H,L=200 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-16040 |
AE82 |
2 | ||
| 95332-06020 |
AE82 *H,L=200 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-16010 |
AE82 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
AE82 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12040 |
AE82 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12060 |
AE82 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02010 |
AE82..GTS,Q |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AE82 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-12020 |
AE82 |
1 | ||
| 77210-12100 |
AE82 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77259-16010 |
AE82 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-16031 |
AE82 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77606-12110 |
AE82 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-02010 |
AE82 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-12020 |
AE82 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-16010 |
AE82 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-12070 |
AE82 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08010 |
AE82 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AE82 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12030 |
AE82 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE82 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-12080 |
AE82 RH |
1 | ||
| 77602-16030 |
AE82 LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-12080 |
AE82 RH |
1 | ||
| 77602-16030 |
AE82 LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AE82 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AE82 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AE82 |
2 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
AE82 |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-01010 |
AE82 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-01010 |
AE82 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-01010 |
AE82 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-01010 |
AE82 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77653-01010 |
AE82 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-01010 |
AE82 |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77654-01010 |
AE82 |
2 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90119-06182 | ||||
| 90159-50047 | ||||
| 90159-60038 | ||||
| 90179-05032 | ||||
| 90179-10074 | ||||
| 90189-06047 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15010 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6709 | ||||
| 8401 | ||||
(8609- )GTS,Q
Click highlighted areas on diagram

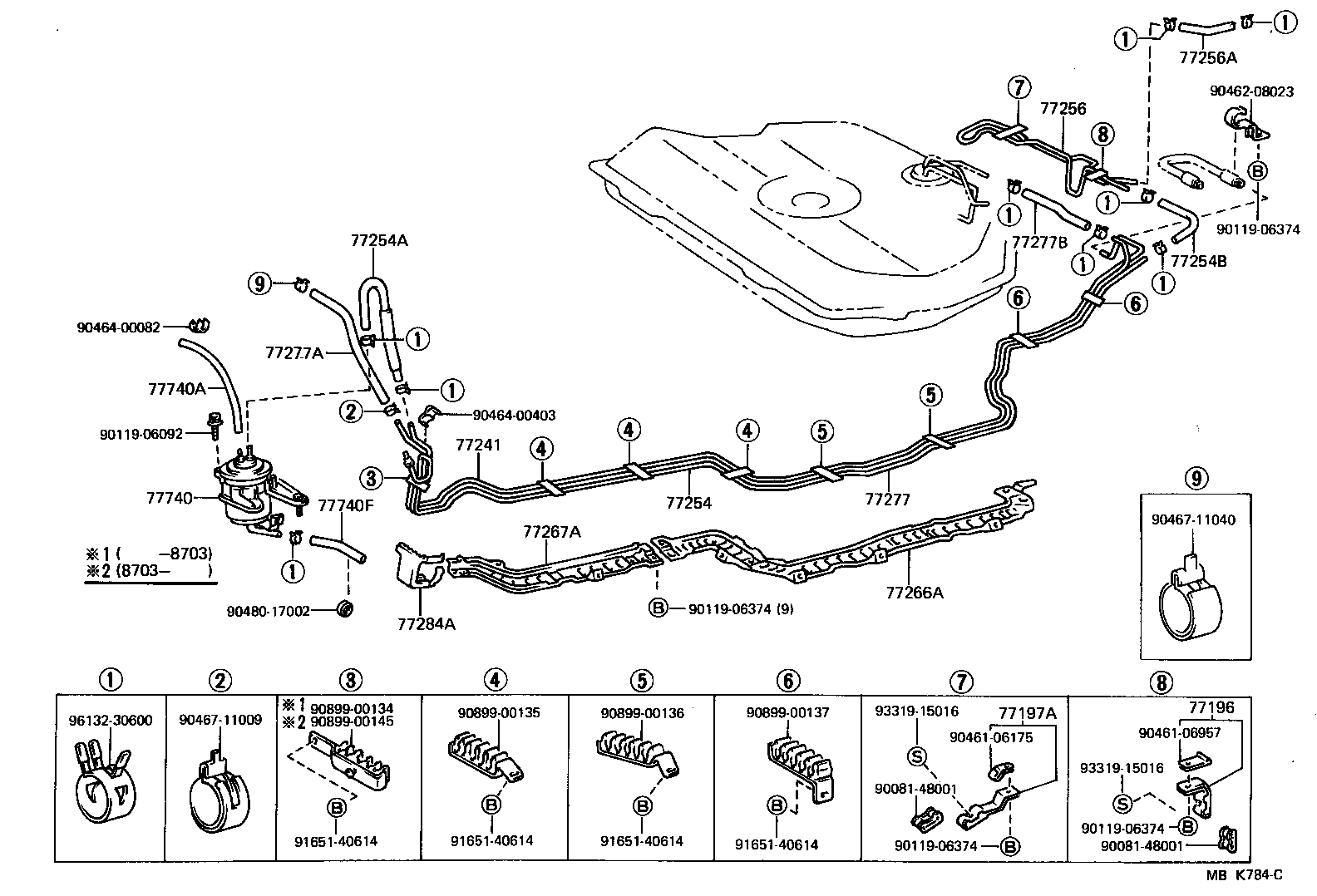

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02010 |
AE82 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-02010 |
AE82 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-02011 |
AE82..GTS,Q |
1 | ||
| 77251-02010 |
AE82..GTS,Q |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-02010 |
AE82..GTS,Q |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 77259-02010 |
AE82..GTS,Q |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06020 |
AE82 *H,L=130 |
1 | ||
| 95332-06020 |
AE82 *H,L=130 |
1 | ||
| 95332-06020 |
AE82 *H,L=140 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-02010 |
AE82 |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
AE82 *H,L=130 |
1 | ||
| 95333-06020 |
AE82 *H,L=130 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-01010 |
AE82 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-01010 |
AE82 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-02010 |
AE82..GTS,Q |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90081-44001 |
AE82..GTS,Q |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06016 |
AE82 *H,L=160 |
1 | ||
| 95333-06020 |
AE82..GTS,Q *H,L=160 |
1 | ||
| 95332-06020 |
AE82 *H,L=160 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-12010 |
AE82 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02010 |
AE82..GTS,Q |
1 | ||
| 77740-01020 |
AE82..GTS,Q |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
AE82..GTS,Q *H,L=450,MARK=#* |
1 | ||
| 90999-92003 |
AE82..GTS,Q *H,L=450,MARK=#* |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-02010 |
AE82..GTS,Q |
1 | ||
| Common parts | ||||
| 90081-48001 | ||||
| 90119-06092 | ||||
| 90119-06374 | ||||
| 90461-06175 | ||||
| 90461-06957 | ||||
| 90462-08023 | ||||
| 90464-00082 | ||||
| 90464-00403 | ||||
| 90467-11009 | ||||
| 90467-11040 | ||||
| 90480-17002 | ||||
| 90899-00134 | ||||
| 90899-00135 | ||||
| 90899-00136 | ||||
| 90899-00137 | ||||
| 90899-00145 | ||||
| 91651-40614 | ||||
| 93319-15016 | ||||
| 96132-30600 | ||||
