AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

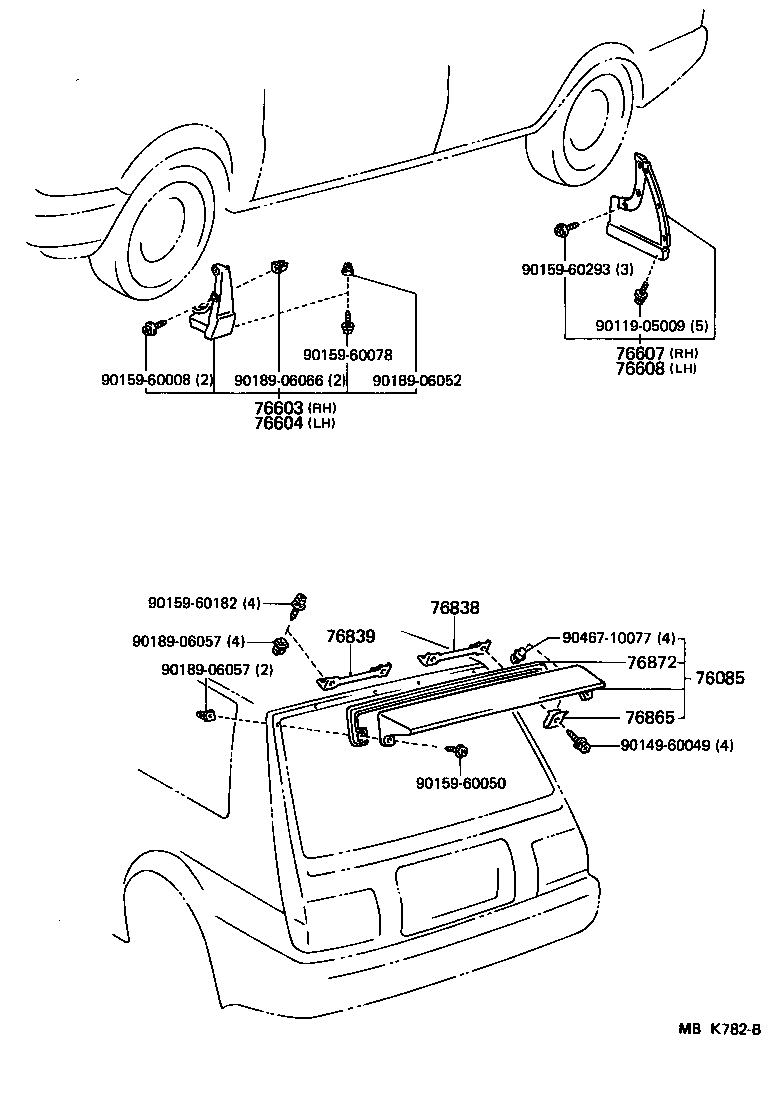

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76838 76839 76865 76872 9011905009 9014960049 9015960008 9015960050 9015960078 9015960182 9015960293 9018906052 9018906057 9018906057 9018906066 9046710077
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-09010

AE82

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-09010

AE82

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-09010

AE82

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-09010

AE82

 1
Common parts
90119-05009
90149-60049
90159-60008
90159-60050
90159-60078
90159-60182
90159-60293
90189-06052
90189-06057
90189-06066
90467-10077
