AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

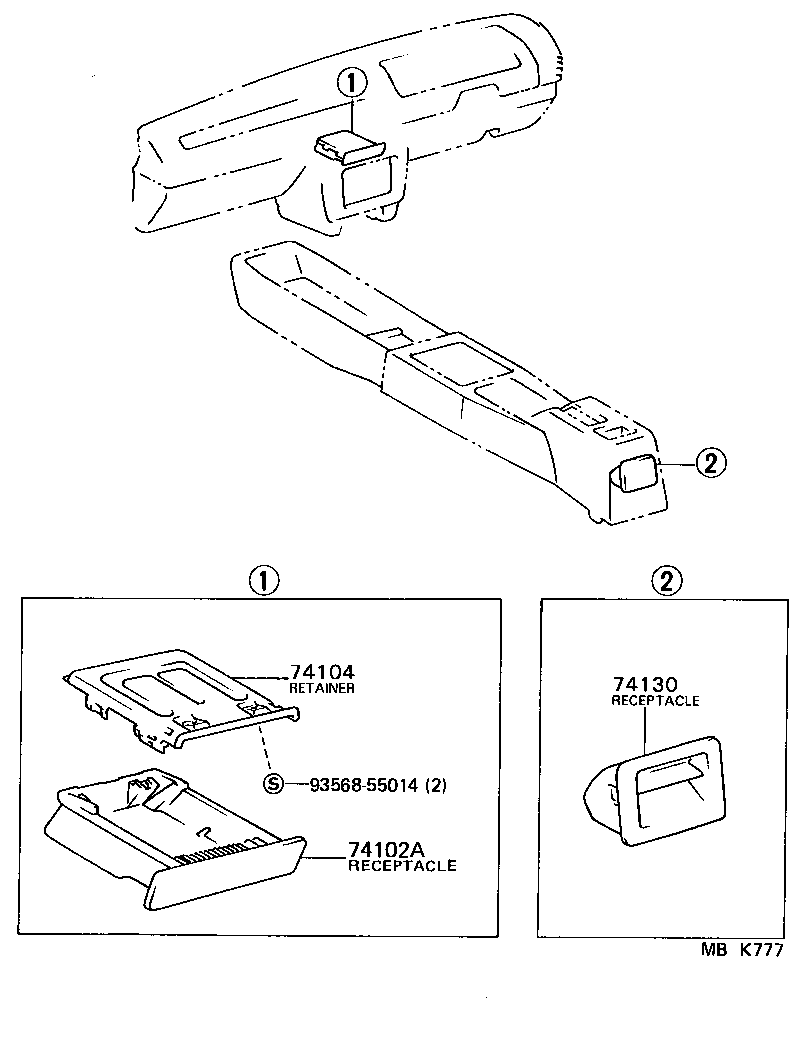

Click highlighted areas on diagram

diagram 74102A 74104 74130 9356855014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-01010K2

AE82

DARK BLUE,DARK BLUE

 1
74102-01010A2

AE82

CHARCOAL,CHARCOAL

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-01010

AE82

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-01010P8

AE82

CHARCOAL,CHARCOAL

 1
74109-01010J9

AE82

DARK BLUE,DARK BLUE

 1
Common parts
93568-55014
